Detailed mapping of the Upper Hutchinson Salt and Overlying Permian strata beneath Hutchinson, Kansas
Kansas Geological Survey
Open-file Report 2003-66

Figure 6

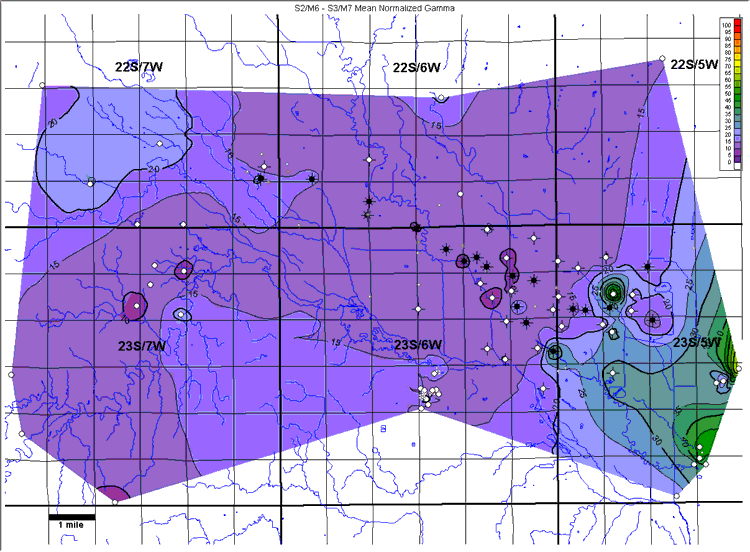

Figure 6A. Mean normalized natural-gamma ray for the S2/M6 – S3/M7 interval, showing the facies change at the eastern edge of the study area. Values are % shale. Contour interval = 5%.

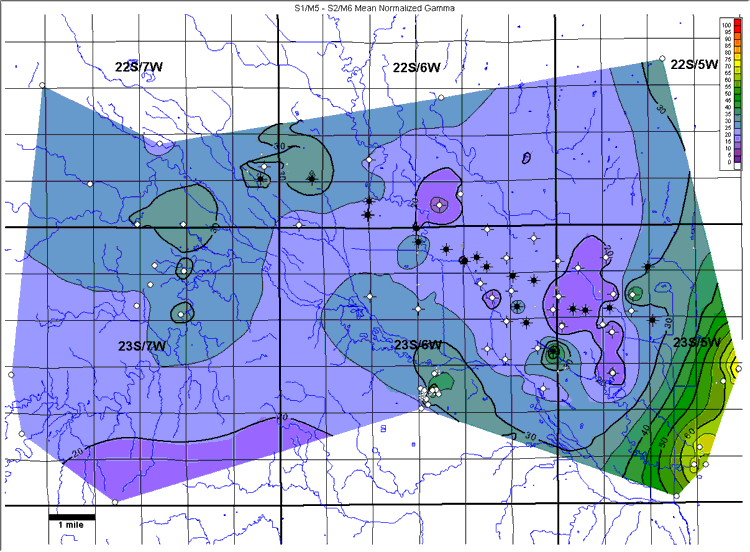

Figure 6B. Mean normalized natural-gamma ray for the S1/M5 – S2/M6 interval, showing the facies change at the eastern edge of the study area. Values are % shale. Contour interval = 5%.
Figure 6C. Mean normalized natural-gamma ray for the M4–S1/M5 interval. Values are % shale. Contour interval = 5%.

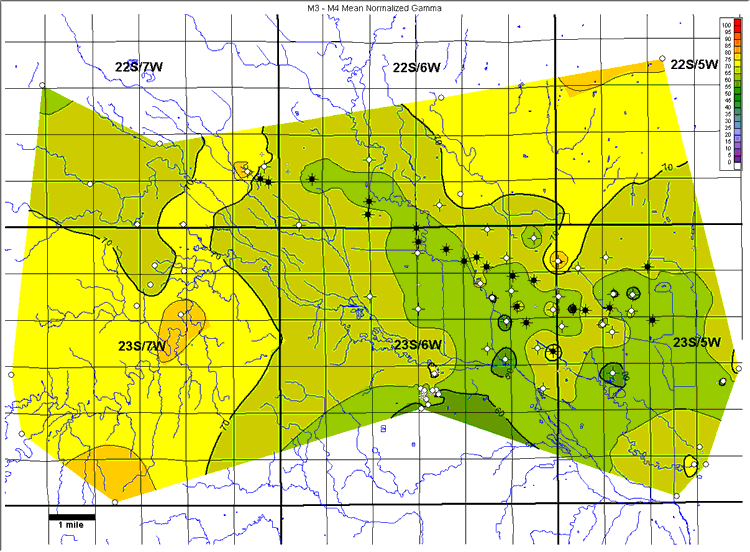

Figure 6D. Mean normalized natural-gamma ray for the M3-M4 interval. Values are % shale. Contour interval = 5%.

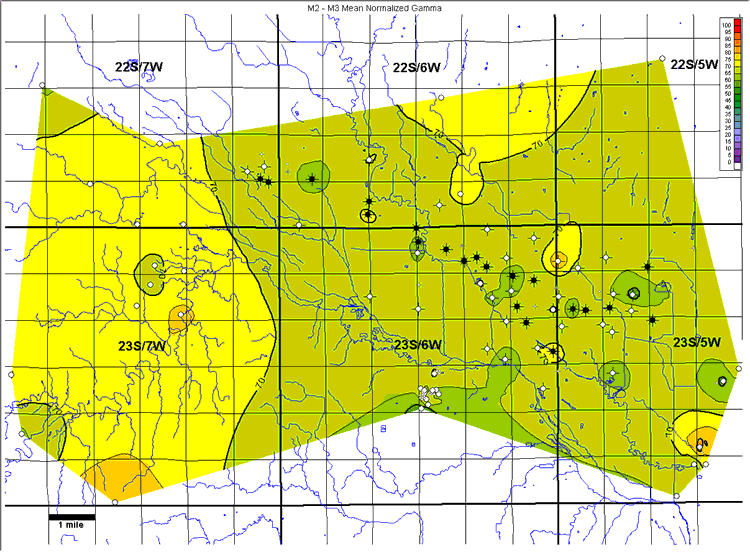

Figure 6E. Mean normalized natural-gamma ray for the M2-M3 interval. Values are % shale. Contour interval = 5%.

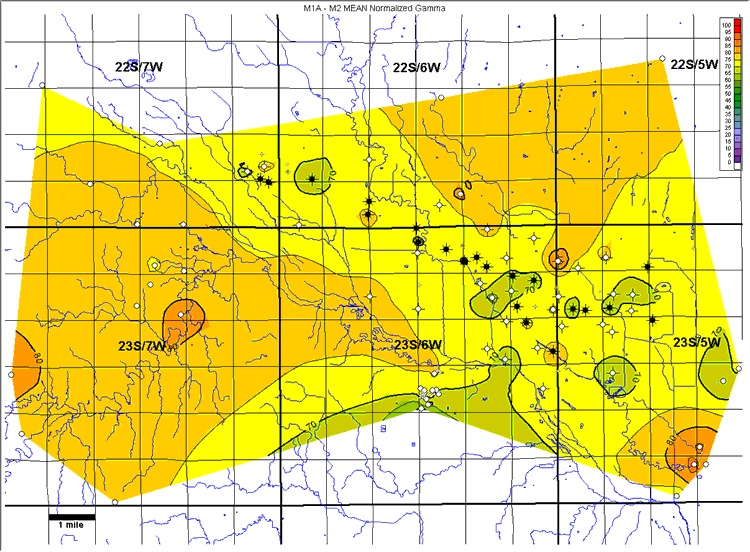

Figure 6F. Mean normalized natural-gamma ray for the M1A-M2 interval. Values are % shale. Contour interval = 5%.

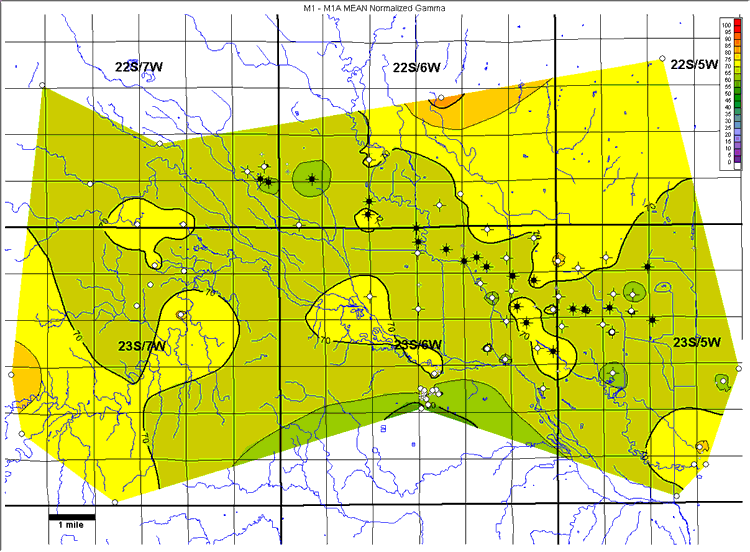

Figure 6G. Mean normalized natural-gamma ray for the M1-M1A interval. Values are % shale. Contour interval = 5%.

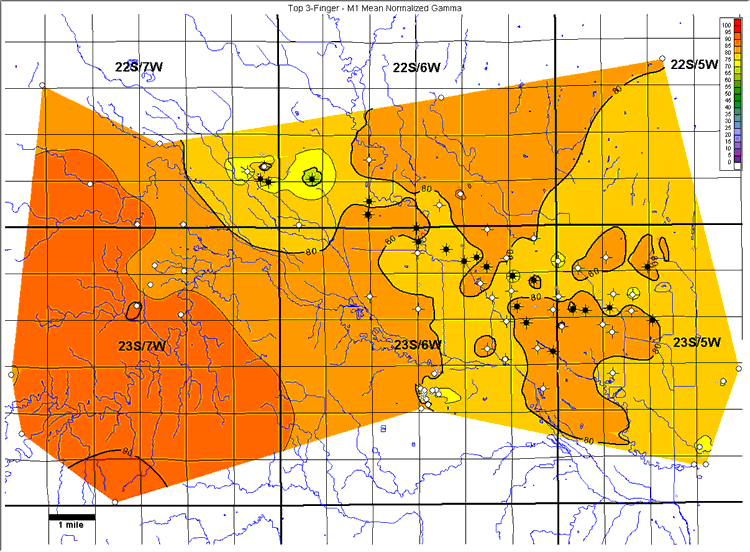

Figure 6H. Mean normalized natural-gamma ray for the Top 3-finger dolomite-M1 interval. Values are % shale. Contour interval = 5%.

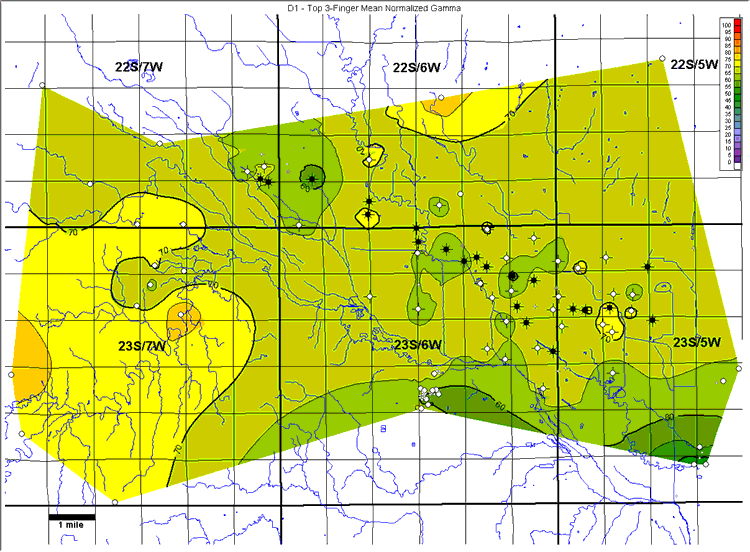

Figure 6I. Mean normalized natural-gamma ray for the D1-Top 3-finger dolomite interval. Values are % shale. Contour interval = 5%.

Wells within the study area not used in generating these maps are displayed in gray at half size.
