 Kansas Geological Survey Open-file Report 2003-27 |

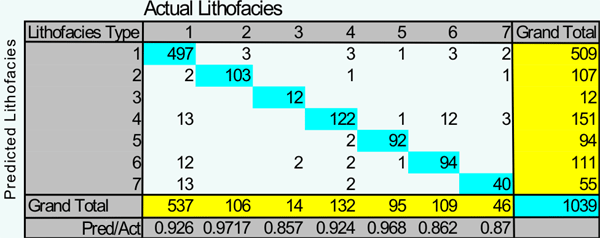

Predicted Lithofacies Scorecard (Counts)
for five key trained core wells with PE curve
The results of model with network size (number of hidden layers) 20 and dampling parameter 0.05 for five key wells without PE log.

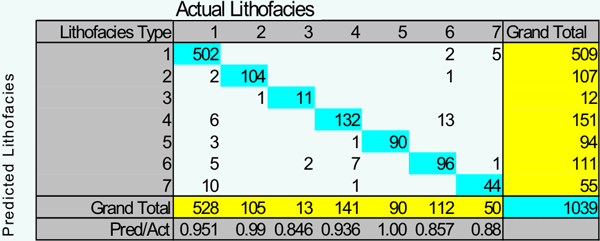

Predicted Lithofacies Scorecard (Counts)
for five key trained core wells with PE curve
The results of model with network size (number of hidden layers) 20 and dampling parameter 0.05 for five key wells with PE log. It shows a slight better prediction/actural rate with PE logs than without PE logs.
|
|

|
e-mail : webadmin@kgs.ku.edu
Last updated May 2003
