Reservoir Characterization of Mississippian St. Louis Carbonate Reservoir Systems in Kansas, Stratigraphic and Facies Architecture Modeling

Kansas Geological Survey
Open-file Report 2003-27

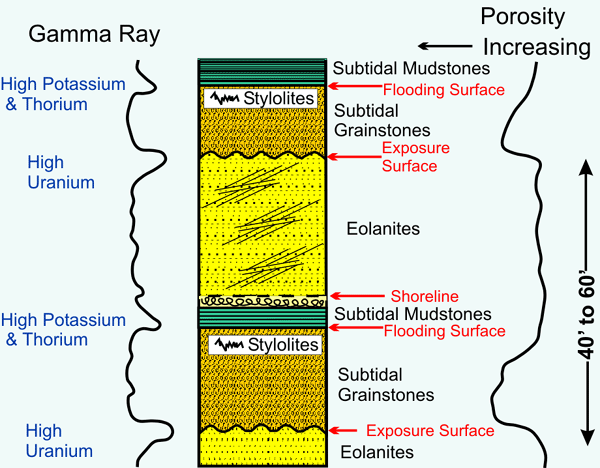

Stratigraphic Surfaces and Log Response

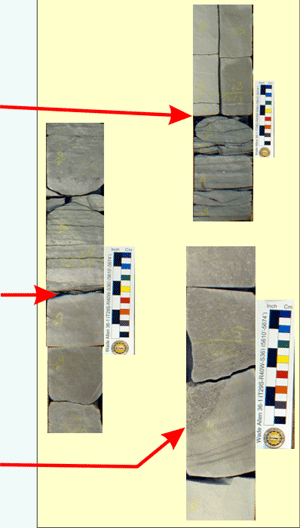

Main Stratigraphic Surfaces



1. Sequence Boundary (SB): Cross-bedded quartz-rich carbonate grainstone sit on top of deep marine limestone.





2. Maximum Flooding Surface (MFS): Argillaceous Limestone deposited at the top of skeletal wackestone or oolitic grainstone





3. Flooding Surface (FS):
Skeletal wacke/packstone contacted with quartz-rich carbonate grainstone (eolianite) at the bottom.
