Paleotopography and Sea-Level Controls on Facies and Thickness Variability of Transgressive Limestones: Upper Pennsylvanian Merriam Limestone, NE Kansas

Kansas Geological Survey
Open-file Report 2003-26

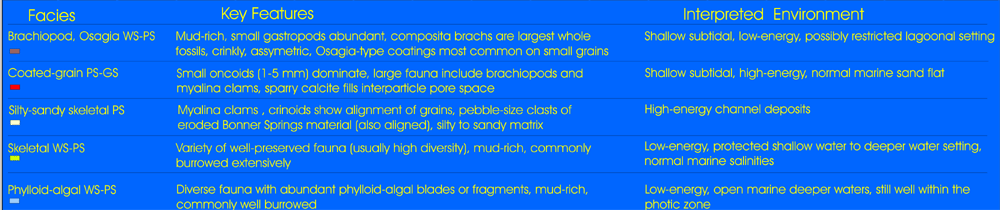

Depositional Environments

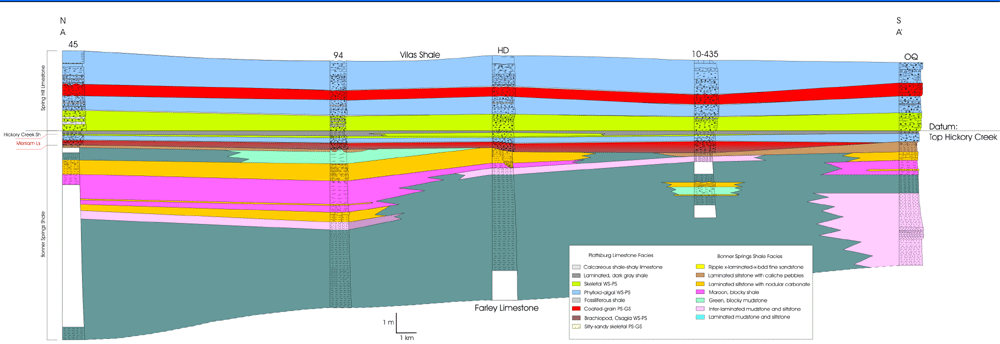

North-South cross-section through paleo-high areas away from channels

top of report

e-mail : webadmin@kgs.ku.edu
Last updated May 2003
