Super Pickett Wireline Log Analysis

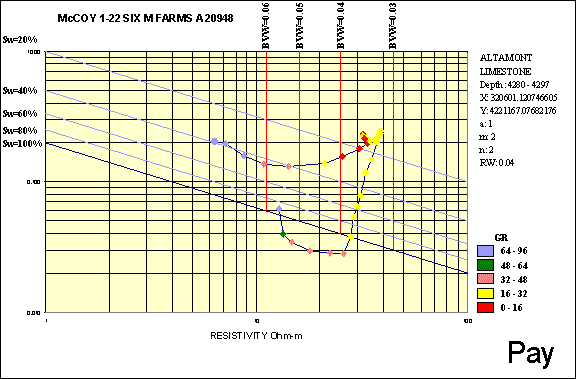

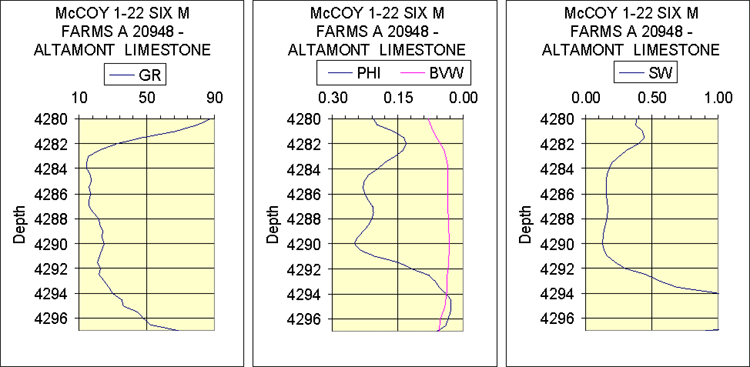

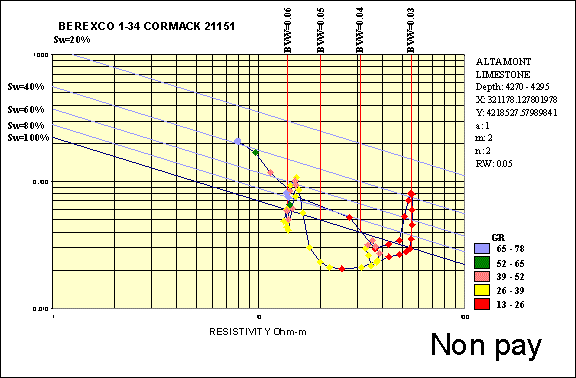

Super Pickett cross plots for a producing and nonproducing reservoir delineate pay cutoffs of 17% porosity and BVW under 0.05. Minimum BVW of pay is approximately .032. Corresponding parameters of water saturation and porosity were mapped below through selected maps in the field.
