Integrating Plug to Well-Scale Petrophysics with Detailed Sedimentology to Quantify Fracture, Vug, and Matrix Properties in Carbonate Reservoirs |
![]() Kansas Geological Survey Open-file Report 99-47 |
Mudstone (Non-reservoir): Typically massive to horizontally laminated with burrow mottling also common. Matrix is composed of euhedral dolomite (< 0.05 mm) with little or no porosity. Replacement of evaporite nodules with chert is observed in some intervals. This facies is interpreted as being deposited in shallow-water, low energy restricted environments or in deeper water away from the Central Kansas Uplift. Karst porosity up to 8% is locally present near the unconformity but is commonly isolated or separated by low permeability matrix. |

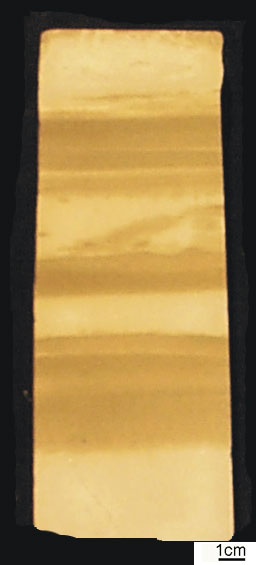

#23 Batman 2587.4' |

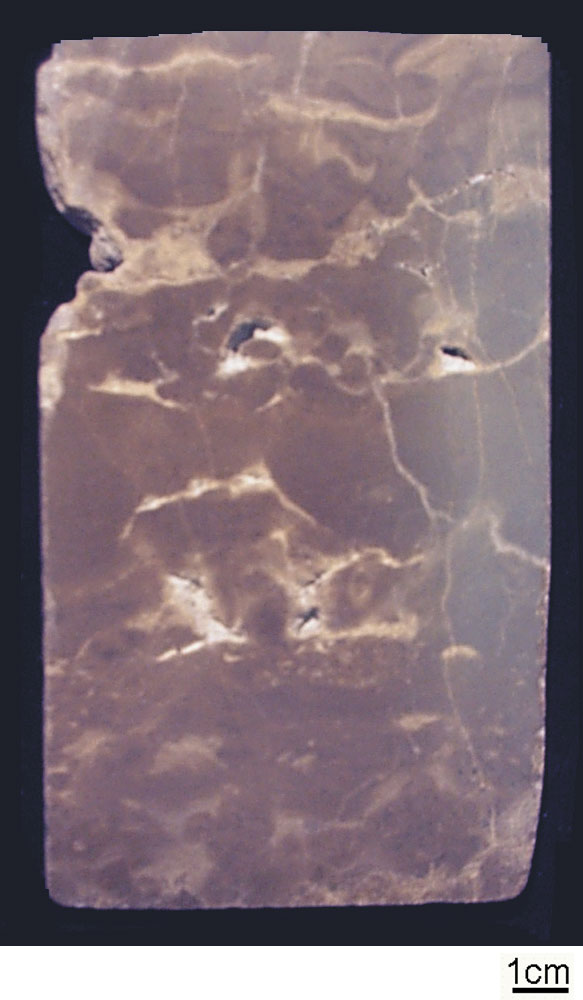

Augusta #6-56 2558.4' |

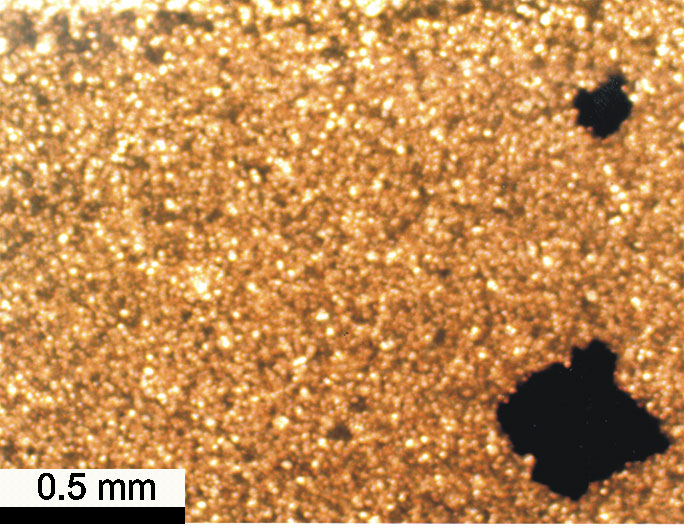

Mudstone (pyrite lower and upper left), #23 Batman, 2435’, plane polarized light. |
![]() ![]() ![]() ![]() |
