Integrating Plug to Well-Scale Petrophysics with Detailed Sedimentology to Quantify Fracture, Vug, and Matrix Properties in Carbonate Reservoirs
Kansas Geological Survey
Open-file Report 99-47
|
|
Integrating Plug to Well-Scale Petrophysics with Detailed Sedimentology to Quantify Fracture, Vug, and Matrix Properties in Carbonate Reservoirs |
Kansas Geological Survey Open-file Report 99-47 |

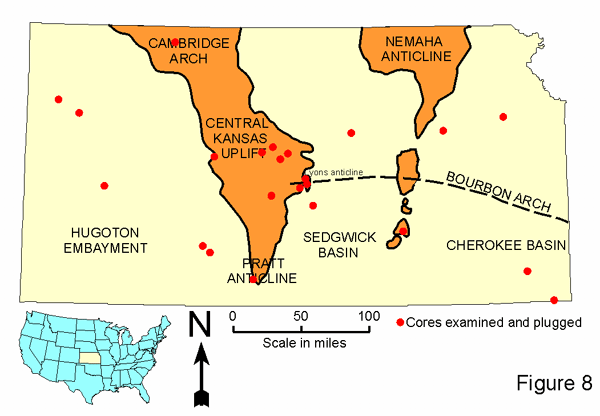

Based on examination of 33 cores distributed across the state (Figure 8), five depositional facies predominate: 1) clotted algal boundstone, 2) laminite algal boundstones, 3) peloidal packstone-grainstone, 4) packstone-grainstone, and 5) wackestone-mudstone. Lesser amounts of Intraclastic conglomerate and breccia, cave fill shale, depositional shale, and chert also occur.
|
|

|
e-mail : webadmin@kgs.ku.edu
Last updated November 2002
