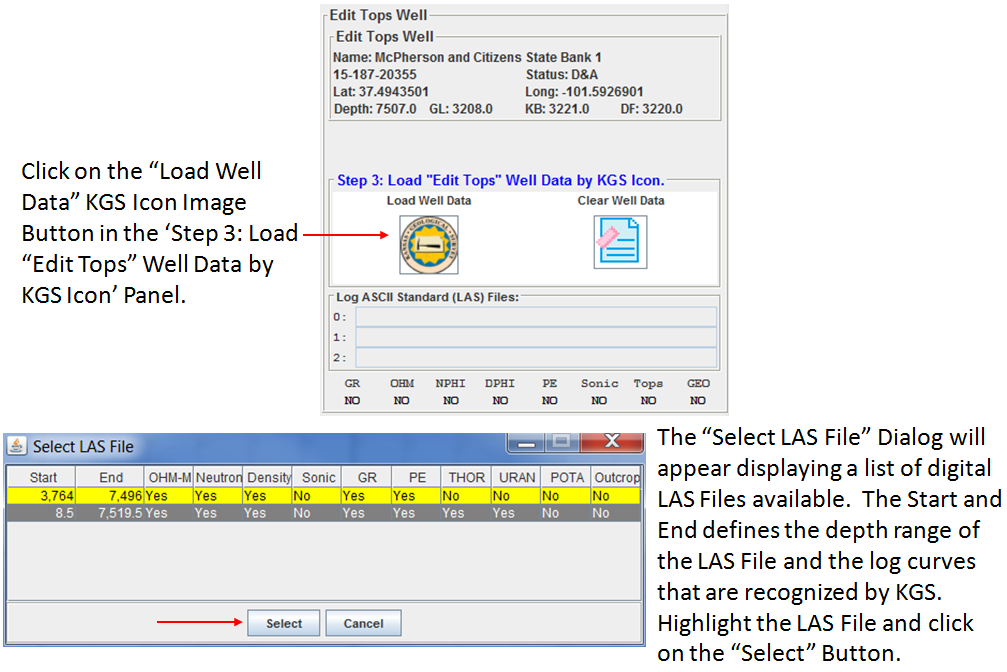

"Select LAS File" Column Definitions
- Start - Starting Depth of LAS File
- End - Ending Depth of LAS File
- OHM-M - Resistivity Log Curves
- Neutron - Neutron Porosity Log Curve Present
- Density - Bulk Density and or Density Porosity Log Curves Present
- Sonic - Acoustic Transit Time and or Sonic Porosity Log Curves Present
- GR - Gamma Ray Log Curve Present
- PE - Photoelectric Factor Log Curve Present
- THOR - Thorium Log Curve Present
- URAN - Uranium Log Curve Present
- POTA - Potassium Log Curve Present
- Outcrop - Outcrop Description Data is present
Author: John R. Victorine jvictor@kgs.ku.edu
