HELP: Lithology/Composition Data Entry Panel

NOTE: The best way to enter the individual tracks is to enter your description of the bed in the Remarks / Notes / Comments Data Entry Dialog and build a list of bed descriptions and then select the "Compute other data entry data types from Remarks" button.

This will allow the program to automatically use the geological description lookup xml files to parse your text into the rock image tracks. This basically saves time and effort, instead of entering each track separately.

The web page Parsing Rock Image Tracks from Remarks Text for Lithology Plot Track will explain the basic logic for parsing the Remarks Text into the Lithology Composition.

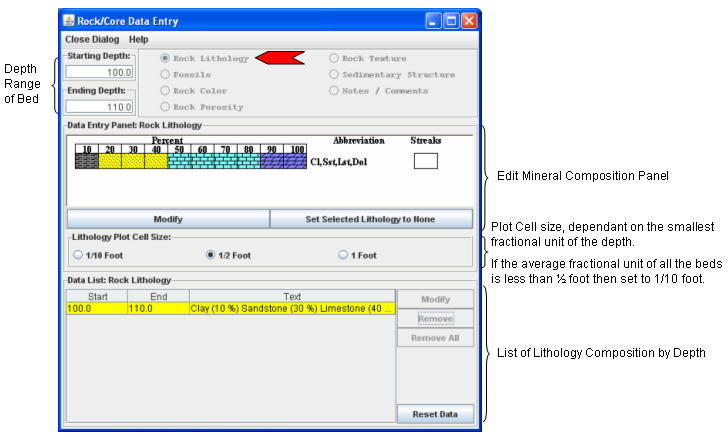

The Lithology Data Entry Dialog allows the user to set the mineral/rock composition manually at 10% increments.

NOTE: When saving your profile data to the LAS 3.0 File. If you modify any bed lithology compositions in the lithology data entry list, then you must select "No" when the "Save Raw Data Only" Query Window is displayed, otherwise you will lose your changes.

The user can decide the mineral/rock composition of a specific bed and select from the List of Lithology Symbols/Colors to represent the bed composition.

Select a button from the following list to view Help pages.
		Add Lithology Composition Record.
		Modify Lithology Composition Record.
		Remove Lithology Composition Record.
