CO2 II Tools
Download JAVA Source Code
Top | Copyright & Disclaimer |

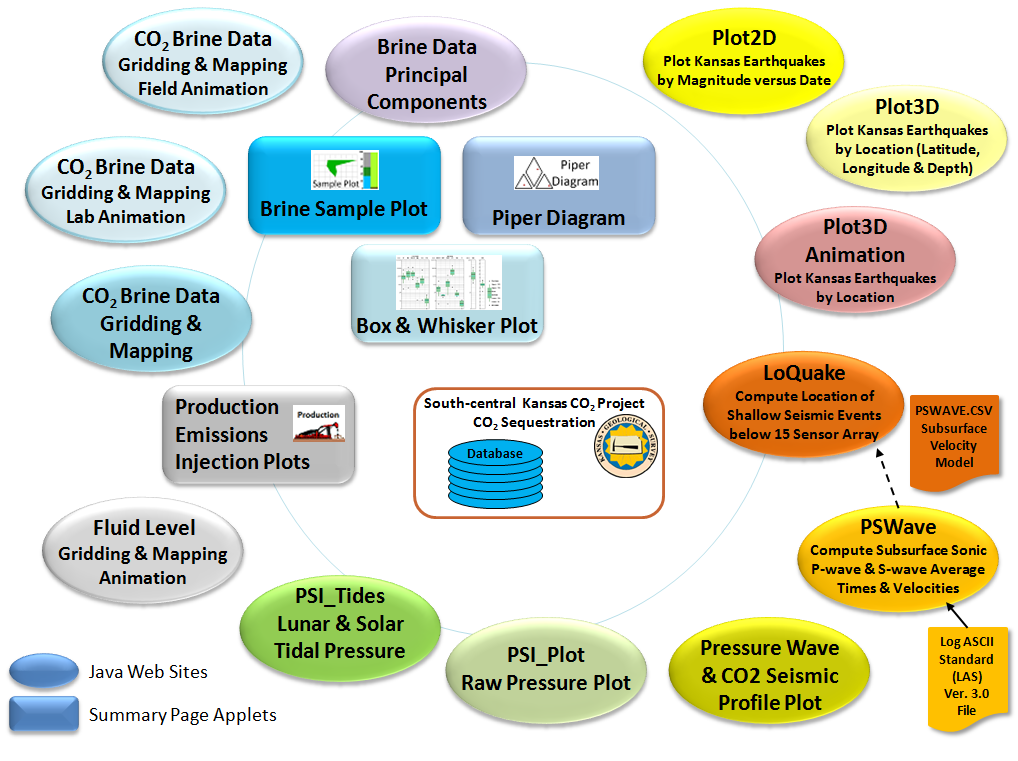

Select the bubble button below to download source.
2D Plot 3D Plot 3D Animation loquake pswave PSI Seismic Viewer PSI Plot PSI Tides PCA FIELD Animation LAB Animation grid FLUID Animation Sample Plot Piper Diagram Concentration Plot Production/Emissions/Injections
Select the Database Icon button to the left to display CO2 Database Scripts Source download website.

Download the CO2 Sequestration Summary Pages and Web Apps Web Page Source Code.

The CO2 phase II web apps & summary pages were developed to display the captured data measurements for CO2 sequestration in the Wellington KGS 2-32 - Mississippian formation. The Brine Measurement and Fluid Level Measurements were the direct measurement of the effects of CO2 in the subsurface. The earthquake and pressure monitoring web apps and summary pages was to make sure that no seismic events occur as a result of the CO2 sequestration in Wellington KGS 2-32 well.

Author: John R. Victorine jvictor@kgs.ku.edu
