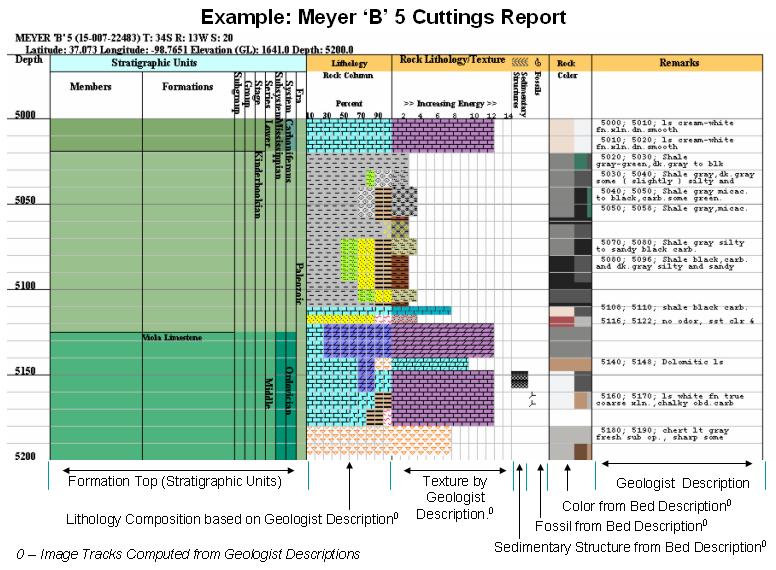

HELP: Profile Plot - Cuttings Report

Meyer_B-5.las - Log ASCII Standard (LAS) version 3.0 File

Geologist Cuttings Description for the Meyer 'B' 5

Depth (ft)

Start End Bed (ft) Lithofacies

5000.0 5010.0 10.0 "5000; 5010; ls cream-white fn.xln.dn.smooth "

5010.0 5020.0 10.0 "5010; 5020; ls cream-white fn.xln.dn.smooth "

5020.0 5030.0 10.0 "5020; 5030; Shale gray-green,dk.gray to blk "

5030.0 5040.0 10.0 "5030; 5040; Shale gray,dk.gray some ( slightly ) silty and micac. "

5040.0 5050.0 10.0 "5040; 5050; Shale gray micac. to black,carb.some green. "

5050.0 5058.0 8.0 "5050; 5058; Shale gray,micac. to black,carb. some green. "

5058.0 5062.0 4.0 "5058; 5062; Shale black,carb. "

5062.0 5070.0 8.0 "5062; 5070; Shale gray,dk.gray some ( slightly ) pyritic "

5070.0 5080.0 10.0 "5070; 5080; Shale gray silty to sandy black carb. "

5080.0 5096.0 16.0 "5080; 5096; Shale black,carb. and dk.gray silty and sandy "

5096.0 5100.0 4.0 "5096; 5100; Shale black,carb,sandy "

5100.0 5108.0 8.0 "5100; 5108; Shale dk.gray to balck silty & sandy "

5108.0 5110.0 2.0 "5108; 5110; shale black carb. "

5110.0 5116.0 6.0 "5110; 5116; ls crm chalky to fn.xln.mixed w/ Shale dk gray. "

5116.0 5122.0 6.0 "5116; 5122; no odor, sst clr & glassy, cln med grain fr.pr.sorted fr.glauconitic fair amts of loose fn. sub & rd grn. sptd fluor w/small show live oil & gas mixed w/ chert lt gray milky .. w/ weath. sub op. spk-same w/sptd fluor & smallish.. "

5122.0 5140.0 18.0 "5122; 5140; Dolo. gray fn.xln.limy "

5140.0 5148.0 8.0 "5140; 5148; Dolomitic ls fn.xln.soft w/ ls tan fn.xln.dn. smooth w/ small amts of cherty milky fresh sub op. "

5148.0 5160.0 12.0 "5148; 5160; Ls white med and coarse xln. w/dk grn-... grading to chalky ls and chalk mixed dolomitic ls lt gray fn.xln.-sucrosic soft "

5160.0 5170.0 10.0 "5160; 5170; ls white fn true coarse xln.,chalky obd.carb inclus. re xtal in pt. to Ls tan fn.xln.dn.w/assoc. chalk, chert 1-2% milky-lt gray fresh sub op. spic. "

5170.0 5180.0 10.0 "5170; 5180; ls wht fn-coarse xln.same chalky abd carb inclus., slightly glauconitic, chalky "

5180.0 5190.0 10.0 "5180; 5190; chert lt gray fresh sub op., sharp some fracturred, peppered w/carb. inclus. "

5190.0 5200.0 10.0 "5190; 5200; chert lt gray and brown fresh opaque & sub op. smooth lightly included micac. w/ .. ls tan in "

5200.0 5218.0 18.0 "5200; 5218; chert lt gray-brwon fresh opaque ... mixed w/small amts ls tan-crm.fn.xln.dn.shaley "

5218.0 5220.0 2.0 "5218; 5220; Shale gray "

5220.0 5230.0 10.0 "5220; 5230; ls tan-cream fn.xln.-chalky mixed chert brown fresh sub op. slightly included "

5230.0 5238.0 8.0 "5230; 5238; ls tan-grm.fn.xln.dn.-chalky mixed w/ chert brn-lt gray fresh subopaque, included "

5238.0 5250.0 12.0 "5238; 5250; Shale gray,dk.gray,gray-green "

5250.0 5260.0 10.0 "5250; 5260; Shale gray,dk.gray,gray-green "

5260.0 5270.0 10.0 "5260; 5270; Shale gray,dk.gray,green some silty "

5270.0 5278.0 8.0 "5270; 5278; Shale gray,dk.gray,gry-green "

5278.0 5288.0 10.0 "5278; 5288; sst white to clr fn.grain, argillacaeous, slightly glauconitic, gr-... and loose or fn sub-ang-round no odor, fluor or ... "

5288.0 5294.0 6.0 "5288; 5294; Shale gray,dk.gray,gray-green "

5294.0 5296.0 2.0 "5294; 5296; sst wht-clr fn.and sparse med.grain fr.pr sorting w/abd loose quartz grain... "

5296.0 5310.0 14.0 "5296; 5310; Shale gray,green,gray-green "

5310.0 5320.0 10.0 "5310; 5320; Shale dk.gray-green,green,gray-grn same soft "

5320.0 5330.0 10.0 "5320; 5330; Shale gray-green,green "

5330.0 5340.0 10.0 "5330; 5340; Shale gray-green,green, gray "

5340.0 5344.0 4.0 "5340; 5344; sst wht-clr fn.and med. grain subrnd, pt glassy and clr w/ med carb. inclus., no odor, no fluor, no cut "

5344.0 5358.0 14.0 "5344; 5358; Shale green,gray-green,dk.gray "

5358.0 5370.0 12.0 "5358; 5370; sst white-clear glassy med. grain sub-subrnd, friable w/ med. car. inclus.,fair amts of quartz loose med & some coarse grains sub-subrnd,clr no show or gas increases "

5370.0 5378.0 8.0 "5370; 5378; Quartz clear fn. and med. grain most rounded lesser ..,small amts of clusters sst clr-wht fn-med.grain,..,slightly glauconitic, and includes no shows. "

5378.0 5392.0 14.0 "5378; 5392; Shale gray-green,green,gray "

5392.0 5400.0 8.0 "5392; 5400; Quartz clear & some fn & med. & co. grain, clear & rounded sparse cluseters ... chert milky-lt.gry. fresh sub op. "

5400.0 5410.0 10.0 "5400; 5410; Dolomite tan fn.xln.,grainy no shows, no odor, some pr-fr ingrain porosity "

5410.0 5420.0 10.0 "5410; 5420; Dolomite brown fn.xln.grainy to dol. lt gray-white fn.xln.dn.scattered vugs in coarse xln dolo clr "

5420.0 5430.0 10.0 "5420; 5430; Dolo brown fn.xln.,grainy to dolo.lt.gray-wht fn.xln.dn.scatt vugs ls tan fn.xln. "

5430.0 5440.0 10.0 "5430; 5440; Dolomite brown fn.xln grainy to dolo gray-white fnxln, chalk 25% "

5440.0 5460.0 20.0 "5440; 5460; Dolomite brown brown fnxln,grainyto dolo.gray-white fn.xln.mixed w/equal amts of chalk and chalky ls, sparse chert milky white-lt gray fresh sub op. "

Geologist Cuttings Description for the Meyer 'B' 5
Depth (ft)
Start	End	Bed (ft)	Lithofacies
5000.0	5010.0	10.0	"5000; 5010; ls cream-white fn.xln.dn.smooth "
5010.0	5020.0	10.0	"5010; 5020; ls cream-white fn.xln.dn.smooth "
5020.0	5030.0	10.0	"5020; 5030; Shale gray-green,dk.gray to blk "
5030.0	5040.0	10.0	"5030; 5040; Shale gray,dk.gray some ( slightly ) silty and micac. "
5040.0	5050.0	10.0	"5040; 5050; Shale gray micac. to black,carb.some green. "
5050.0	5058.0	8.0	"5050; 5058; Shale gray,micac. to black,carb. some green. "
5058.0	5062.0	4.0	"5058; 5062; Shale black,carb. "
5062.0	5070.0	8.0	"5062; 5070; Shale gray,dk.gray some ( slightly ) pyritic "
5070.0	5080.0	10.0	"5070; 5080; Shale gray silty to sandy black carb. "
5080.0	5096.0	16.0	"5080; 5096; Shale black,carb. and dk.gray silty and sandy "
5096.0	5100.0	4.0	"5096; 5100; Shale black,carb,sandy "
5100.0	5108.0	8.0	"5100; 5108; Shale dk.gray to balck silty & sandy "
5108.0	5110.0	2.0	"5108; 5110; shale black carb. "
5110.0	5116.0	6.0	"5110; 5116; ls crm chalky to fn.xln.mixed w/ Shale dk gray. "
5116.0	5122.0	6.0	"5116; 5122; no odor, sst clr & glassy, cln med grain fr.pr.sorted fr.glauconitic fair amts of loose fn. sub & rd grn. sptd fluor w/small show live oil & gas mixed w/ chert lt gray milky .. w/ weath. sub op. spk-same w/sptd fluor & smallish.. "
5122.0	5140.0	18.0	"5122; 5140; Dolo. gray fn.xln.limy "
5140.0	5148.0	8.0	"5140; 5148; Dolomitic ls fn.xln.soft w/ ls tan fn.xln.dn. smooth w/ small amts of cherty milky fresh sub op. "
5148.0	5160.0	12.0	"5148; 5160; Ls white med and coarse xln. w/dk grn-... grading to chalky ls and chalk mixed dolomitic ls lt gray fn.xln.-sucrosic soft "
5160.0	5170.0	10.0	"5160; 5170; ls white fn true coarse xln.,chalky obd.carb inclus. re xtal in pt. to Ls tan fn.xln.dn.w/assoc. chalk, chert 1-2% milky-lt gray fresh sub op. spic. "
5170.0	5180.0	10.0	"5170; 5180; ls wht fn-coarse xln.same chalky abd carb inclus., slightly glauconitic, chalky "
5180.0	5190.0	10.0	"5180; 5190; chert lt gray fresh sub op., sharp some fracturred, peppered w/carb. inclus. "
5190.0	5200.0	10.0	"5190; 5200; chert lt gray and brown fresh opaque & sub op. smooth lightly included micac. w/ .. ls tan in "
5200.0	5218.0	18.0	"5200; 5218; chert lt gray-brwon fresh opaque ... mixed w/small amts ls tan-crm.fn.xln.dn.shaley "
5218.0	5220.0	2.0	"5218; 5220; Shale gray "
5220.0	5230.0	10.0	"5220; 5230; ls tan-cream fn.xln.-chalky mixed chert brown fresh sub op. slightly included "
5230.0	5238.0	8.0	"5230; 5238; ls tan-grm.fn.xln.dn.-chalky mixed w/ chert brn-lt gray fresh subopaque, included "
5238.0	5250.0	12.0	"5238; 5250; Shale gray,dk.gray,gray-green "
5250.0	5260.0	10.0	"5250; 5260; Shale gray,dk.gray,gray-green "
5260.0	5270.0	10.0	"5260; 5270; Shale gray,dk.gray,green some silty "
5270.0	5278.0	8.0	"5270; 5278; Shale gray,dk.gray,gry-green "
5278.0	5288.0	10.0	"5278; 5288; sst white to clr fn.grain, argillacaeous, slightly glauconitic, gr-... and loose or fn sub-ang-round no odor, fluor or ... "
5288.0	5294.0	6.0	"5288; 5294; Shale gray,dk.gray,gray-green "
5294.0	5296.0	2.0	"5294; 5296; sst wht-clr fn.and sparse med.grain fr.pr sorting w/abd loose quartz grain... "
5296.0	5310.0	14.0	"5296; 5310; Shale gray,green,gray-green "
5310.0	5320.0	10.0	"5310; 5320; Shale dk.gray-green,green,gray-grn same soft "
5320.0	5330.0	10.0	"5320; 5330; Shale gray-green,green "
5330.0	5340.0	10.0	"5330; 5340; Shale gray-green,green, gray "
5340.0	5344.0	4.0	"5340; 5344; sst wht-clr fn.and med. grain subrnd, pt glassy and clr w/ med carb. inclus., no odor, no fluor, no cut "
5344.0	5358.0	14.0	"5344; 5358; Shale green,gray-green,dk.gray "
5358.0	5370.0	12.0	"5358; 5370; sst white-clear glassy med. grain sub-subrnd, friable w/ med. car. inclus.,fair amts of quartz loose med & some coarse grains sub-subrnd,clr no show or gas increases "
5370.0	5378.0	8.0	"5370; 5378; Quartz clear fn. and med. grain most rounded lesser ..,small amts of clusters sst clr-wht fn-med.grain,..,slightly glauconitic, and includes no shows. "
5378.0	5392.0	14.0	"5378; 5392; Shale gray-green,green,gray "
5392.0	5400.0	8.0	"5392; 5400; Quartz clear & some fn & med. & co. grain, clear & rounded sparse cluseters ... chert milky-lt.gry. fresh sub op. "
5400.0	5410.0	10.0	"5400; 5410; Dolomite tan fn.xln.,grainy no shows, no odor, some pr-fr ingrain porosity "
5410.0	5420.0	10.0	"5410; 5420; Dolomite brown fn.xln.grainy to dol. lt gray-white fn.xln.dn.scattered vugs in coarse xln dolo clr "
5420.0	5430.0	10.0	"5420; 5430; Dolo brown fn.xln.,grainy to dolo.lt.gray-wht fn.xln.dn.scatt vugs ls tan fn.xln. "
5430.0	5440.0	10.0	"5430; 5440; Dolomite brown fn.xln grainy to dolo gray-white fnxln, chalk 25% "
5440.0	5460.0	20.0	"5440; 5460; Dolomite brown brown fnxln,grainyto dolo.gray-white fn.xln.mixed w/equal amts of chalk and chalky ls, sparse chert milky white-lt gray fresh sub op. "

Author: John R. Victorine jvictor@kgs.ku.edu
