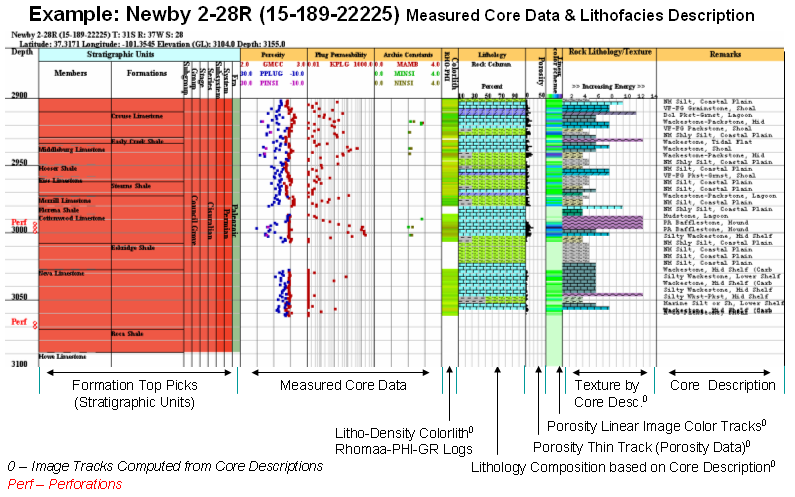

HELP: Profile Plot - Measured Core Data

Newby_2-28R.las - Log ASCII Standard (LAS) version 3.0 File

Lithofacies Description for the Newby 2-28R
Depth(ft) Corr (ft) Lithofacies 2810.0 6.0 "M-CG Pkst-Grnst" 2811.0 6.0 "Silty Wackestone" 2812.0 6.0 "Silty Wackestone" 2813.0 6.0 "Silty Wkst-Pkst" 2814.0 6.0 "Silty Wkst-Pkst" 2815.0 6.0 "Silty Wkst-Pkst" 2816.0 6.0 "Silty Wkst-Pkst" 2817.0 6.0 "M-CG Packstone" 2818.0 6.0 "Silty Wackestone" 2819.0 6.0 "Silty Wackestone" 2820.0 6.0 "Silty Wackestone" 2821.0 6.0 "Silty Wackestone" 2822.0 6.0 "Silty Wackestone" 2823.0 6.0 "M-CG Pkst-Grnst" 2824.0 6.0 "M-CG Packstone" 2825.0 6.0 "M-CG Pkst-Grnst" 2826.0 6.0 "NM Shly Silt" 2827.0 6.0 "NM Shly Silt" 2828.0 6.0 "NM Shly Silt" 2829.0 6.0 "NM Shly Silt" 2830.0 6.0 "NM Shly Silt" 2831.0 6.0 "NM Shly Silt" 2832.0 6.0 "NM Silt" 2833.0 6.0 "NM Silt" 2834.0 6.0 "NM Silt" 2835.0 6.0 "NM Silt" 2836.0 6.0 "NM Silt" 2837.0 6.0 "NM Silt" 2838.0 6.0 "NM Silt" 2839.0 6.0 "NM Silt" 2840.0 6.0 "NM Silt" 2841.0 6.0 "NM Shly Silt" 2842.0 6.0 "NM Silt" 2843.0 6.0 "NM Silt" 2844.0 6.0 "NM Silt" 2845.0 6.0 "V Silty Mdst-Wkst" 2846.0 6.0 "V Silty Mdst-Wkst" 2847.0 6.0 "NM Shly Silt" 2848.0 6.0 "Wackestone-Packstone" 2849.0 6.0 "Fxln dolomite" 2850.0 6.0 "Fxln dolomite" 2850.0 6.0 "Fxln dolomite" 2850.0 6.0 "Fxln dolomite" 2851.0 6.0 "Fxln dolomite" 2852.0 6.0 "Fxln dolomite" 2853.0 6.0 "V Silty Mdst-Wkst" 2854.0 6.0 "V Silty Mdst-Wkst" 2855.0 6.0 "Marine Silt or Sh" 2856.0 6.0 "Marine Silt or Sh" 2857.0 6.0 "Marine Silt or Sh" 2858.0 6.0 "M-CG Packstone" 2859.0 6.0 "Marine Silt or Sh" 2860.0 6.0 "Marine Silt or Sh" 2861.0 6.0 "M-CG Packstone" 2862.0 6.0 "M-CG Pkst-Grnst" 2863.0 6.0 "V Silty Mdst-Wkst" 2864.0 6.0 "V Silty Mdst-Wkst" 2865.0 6.0 "Marine Silt or Sh" 2866.0 6.0 "Marine Silt or Sh" 2867.0 6.0 "Marine Silt or Sh" 2868.0 6.0 "Marine Silt or Sh" 2869.0 6.0 "Marine Silt or Sh" 2870.0 6.0 "Marine Silt or Sh" 2871.0 6.0 "Marine Silt or Sh" 2872.0 6.0 "Marine Silt or Sh" 2873.0 6.0 "Marine Silt or Sh" 2874.0 6.0 "Silty Wackestone" 2875.0 6.0 "Silty Wackestone" 2876.0 6.0 "Marine Silt or Sh" 2877.0 6.0 "Marine Silt or Sh" 2878.0 6.0 "Marine Silt or Sh" 2879.0 6.0 "Marine Silt or Sh" 2880.0 6.0 "Marine Silt or Sh" 2881.0 6.0 "Marine Silt or Sh" 2882.0 6.0 "Marine Silt or Sh" 2883.0 6.0 "Marine Silt or Sh" 2884.0 6.0 "Silty Wkst-Pkst" 2885.0 6.0 "Silty Wackestone" 2886.0 6.0 "M-CG Pkst-Grnst" 2887.0 6.0 "V Silty Mdst-Wkst" 2888.0 6.0 "V Silty Mdst-Wkst" 2889.0 6.0 "NM Shly Silt" 2890.0 6.0 "NM Shly Silt" 2891.0 6.0 "NM Shly Silt" 2892.0 6.0 "NM Shly Silt" 2893.0 6.0 "NM Shly Silt" 2894.0 6.0 "NM Shly Silt" 2895.0 6.0 "NM Shly Silt" 2896.0 6.0 "NM Shly Silt" 2897.0 6.0 "NM Silt" 2898.0 6.0 "NM Silt" 2899.0 6.0 "NM Silt" 2900.0 6.0 "NM Silt" 2901.0 6.0 "NM Silt" 2902.0 6.0 "NM Silt" 2903.0 6.0 "NM Silt" 2904.0 6.0 "NM Shly Silt" 2905.0 5.5 "VF-FG Grainstone" 2906.0 5.5 "M-CG Packstone" 2907.0 5.5 "M-CG Packstone" 2908.0 5.5 "M-CG Pkst-Grnst" 2909.0 5.5 "M-CG Pkst-Grnst" 2910.0 5.5 "Dol Pkst-Grnst" 2911.0 5.5 "Fxln dolomite" 2911.0 5.5 "Fxln dolomite" 2911.0 5.5 "Fxln dolomite" 2912.0 5.5 "Fxln dolomite" 2913.0 5.5 "Fxln dolomite" 2914.0 5.5 "Dol Mudstone" 2915.0 5.5 "Wackestone-Packstone" 2916.0 5.5 "VF-FG Packstone" 2917.0 5.5 "Wackestone-Packstone" 2918.0 5.5 "M-CG Pkst-Grnst" 2919.0 5.5 "M-CG Pkst-Grnst" 2919.0 5.5 "M-CG Pkst-Grnst" 2919.0 5.5 "M-CG Pkst-Grnst" 2920.0 5.5 "VF-FG Packstone" 2921.0 5.5 "Wackestone-Packstone" 2922.0 5.5 "M-CG Packstone" 2923.0 5.0 "Marine Silt or Sh" 2924.0 5.0 "NM Shly Silt" 2925.0 5.0 "NM Shly Silt" 2926.0 5.0 "NM Silt" 2927.0 5.0 "NM Silt" 2928.0 5.0 "NM Shly Silt" 2929.0 4.5 "Silty Wkst-Pkst" 2930.0 4.5 "Wackestone" 2931.0 4.5 "PA Bafflestone" 2932.0 4.5 "PA Bafflestone" 2932.0 4.5 "PA Bafflestone" 2932.0 4.5 "PA Bafflestone"	Depth(ft) Corr (ft) Lithofacies 2933.0 4.5 "PA Bafflestone" 2934.0 4.5 "PA Bafflestone" 2935.0 4.5 "Wackestone" 2936.0 4.5 "M-CG Pkst-Grnst" 2936.0 4.5 "M-CG Pkst-Grnst" 2936.0 4.5 "M-CG Pkst-Grnst" 2937.0 4.5 "VF-FG Packstone" 2938.0 4.5 "VF-FG Packstone" 2939.0 4.5 "Silty Wkst-Pkst" 2940.0 4.5 "Wackestone-Packstone" 2941.0 4.5 "Wackestone-Packstone" 2942.0 5.0 "NM Shly Silt" 2943.0 5.0 "NM Shly Silt" 2944.0 5.0 "NM Shly Silt" 2945.0 5.0 "NM Shly Silt" 2946.0 5.0 "NM Silt" 2947.0 5.0 "NM Silt" 2948.0 5.0 "NM Shly Silt" 2949.0 5.0 "NM Silt" 2950.0 5.0 "NM Silt" 2951.0 5.0 "NM Silt" 2952.0 5.0 "NM Shly Silt" 2953.0 4.5 "NM Shly Silt" 2954.0 4.5 "M-CG Pkst-Grnst" 2955.0 4.5 "VF-FG Pkst-Grnst" 2956.0 4.5 "M-CG Packstone" 2957.0 4.5 "Dol Packstone" 2958.0 4.5 "NM Shly Silt" 2959.0 4.5 "NM Silt" 2960.0 4.5 "NM Silt" 2961.0 4.5 "NM Shly Silt" 2962.0 4.5 "NM Silt" 2963.0 4.5 "NM Silt" 2964.0 4.5 "NM Silt" 2965.0 4.5 "NM Silt" 2966.0 4.5 "NM Silt" 2967.0 4.5 "NM Shly Silt" 2968.0 4.5 "Wackestone" 2969.0 4.5 "M-CG Packstone" 2970.0 4.5 "Wackestone-Packstone" 2971.0 4.5 "Wackestone-Packstone" 2972.0 4.5 "Dol Mudstone" 2973.0 4.5 "Dol Wkst-Pkst" 2974.0 4.5 "NM Silt" 2975.0 4.5 "NM Silt" 2976.0 4.5 "NM Shly Silt" 2977.0 4.5 "NM Shly Silt" 2978.0 4.5 "NM Shly Silt" 2979.0 4.5 "NM Shly Silt" 2980.0 4.5 "NM Shly Silt" 2981.0 4.0 "NM Shly Silt" 2982.0 4.0 "M-CG Grainstone" 2983.0 4.0 "M-CG Grainstone" 2984.0 4.0 "Wackestone-Packstone" 2985.0 4.0 "Mudstone" 2986.0 4.0 "Mdst-Wkst" 2987.0 4.0 "Mdst-Wkst" 2988.0 4.0 "Wackestone-Packstone" 2989.0 4.0 "Wackestone-Packstone" 2990.0 4.0 "PA Bafflestone" 2991.0 4.0 "PA Bafflestone" 2991.0 4.0 "PA Bafflestone" 2991.0 4.0 "PA Bafflestone" 2992.0 4.0 "PA Bafflestone" 2993.0 4.0 "PA Bafflestone" 2994.0 4.0 "PA Bafflestone" 2995.0 4.0 "PA Bafflestone" 2996.0 4.0 "PA Bafflestone" 2997.0 4.0 "PA Bafflestone" 2997.0 4.0 "PA Bafflestone" 2997.0 4.0 "PA Bafflestone" 2998.0 4.0 "PA Bafflestone" 2999.0 4.0 "Silty Wackestone" 3000.0 4.0 "Silty Wackestone" 3001.0 4.0 "Silty Wackestone" 3002.0 4.0 "M-CG Packstone" 3003.0 4.0 "NM Shly Silt" 3004.0 4.0 "NM Shly Silt" 3005.0 4.0 "NM Shly Silt" 3006.0 4.0 "NM Shly Silt" 3007.0 4.0 "NM Shly Silt" 3008.0 4.0 "NM Shly Silt" 3009.0 4.0 "NM Silt" 3010.0 4.0 "NM Silt" 3011.0 4.0 "NM Silt" 3012.0 4.0 "NM Silt" 3013.0 4.0 "NM Silt" 3014.0 4.0 "NM Silt" 3015.0 4.0 "NM Silt" 3016.0 4.0 "NM Silt" 3017.0 4.0 "NM Silt" 3018.0 4.0 "NM Silt" 3019.0 4.0 "NM Silt" 3020.0 4.0 "NM Silt" 3021.0 4.0 "NM Silt" 3022.0 4.0 "NM Silt" 3023.0 4.0 "NM Silt" 3024.0 4.0 "M-CG Packstone" 3025.0 4.0 "Wackestone" 3026.0 4.0 "Wackestone" 3027.0 4.0 "Silty Wkst-Pkst" 3028.0 4.0 "Silty Wackestone" 3029.0 4.0 "Silty Wackestone" 3030.0 4.0 "Silty Wackestone" 3031.0 4.0 "Silty Wackestone" 3032.0 4.0 "Silty Wkst-Pkst" 3033.0 4.0 "Silty Wkst-Pkst" 3034.0 4.0 "Silty Wackestone" 3035.0 4.0 "Wackestone" 3036.0 4.0 "Wackestone" 3037.0 4.0 "Silty Wkst-Pkst" 3038.0 4.0 "Silty Wackestone" 3039.0 4.0 "Silty Wackestone" 3040.0 4.0 "Silty Wackestone" 3041.0 4.0 "Wackestone" 3042.0 4.0 "Silty Wackestone" 3043.0 4.0 "Silty Wackestone" 3044.0 4.0 "Marine Silt or Sh" 3045.0 4.0 "Silty Wkst-Pkst" 3046.0 4.0 "Silty Wackestone" 3047.0 4.0 "PA Bafflestone" 3048.0 4.0 "PA Bafflestone" 3049.0 4.0 "Silty Wackestone" 3050.0 4.0 "Marine Silt or Sh" 3051.0 4.0 "Marine Silt or Sh" 3052.0 4.0 "Marine Silt or Sh" 3053.0 4.0 "Marine Silt or Sh" 3054.0 4.0 "Marine Silt or Sh" 3055.0 4.0 "Wackestone" 3056.0 4.0 "Wackestone" 3057.0 4.0 "M-CG Packstone"
