Appendix A

Listing of registered wells and their appropriate pumpage in the Pawnee Valley

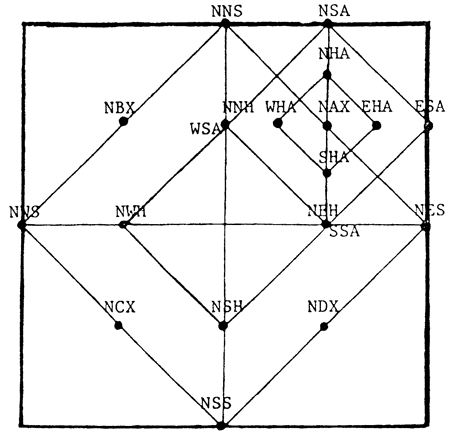

Figure 48--Well description format for Pawnee County.

Legend for Figure 48.
(a) NNS NSS NES NWS Near E*(W,N,S) side	(b) NSA*(B,C,D) SSA*(B,C,D) ESA*(B,C,D) WSA*(B,C,D) E*(W,N,S) side of A*(B,C,D)	(b') NNH NSH NEH NWH Neear center of E*(W,N,S)

(c) NHA*(B,C,D) SHA*(B,C,D) EHA*(B,C,D) WHA*(B,C,D) E*(W,N,S) half of A*(B,C,D)

(d) NAX NBX NCX NDX Near center of A*(B,C,D)

1. Groups (a) through (d)describe well location in decreasing order of acreage for a given section.
2. Groups (b)and (b')describe the same location.
3. Any letter in parenthesis can be substituted for the one with an asterisk right before it.
4. The letter X following any two letters from the group (A,B,C,D) is considered blank.

Pumping Wells

Pawnee County+

Explanation: *Designates the maximum pumpage a single well can pump or a member of a group of overlapping wells can individually pump provided that the group of overlapping wells pump simultaneously.
+For an explanation of well location designations for Pawnee County refer to Figure 48.

Water Right Number (VR = vested right)	Location			Pumpage (Acre feet)
	Township	Range	Section
2872	21	16	29 AAX	185
26,461	21	16	32 CDA	185
2872	21	16	33 CBX	185
2872	21	16	33 BDX	185
26,461	21	16	33 ACE	185
26,461	21	16	33 ACC	185
7,652	21	16	33 BAX	80
VR 627	21	16	33 BCX	22
26,461	21	16	33 CCD	185
26,461	21	16	33 CDA	185
26,461	21	16	33 CDD	185
11340	21	16	33 DBD	95
11339	21	16	33 DBD	95
7633	21	16	33 DBD	95
8705	21	16	33 DBD	95
9320	21	17	27 CDX	60
12,898	21	17	31 BDA	294
10,886	21	17	31 DCC	158
10,886	21	17	31 DCD	158
18,065	21	17	32 DCD	684
31,121	21	17	33 NAD	140
19,378	21	17	36 CCC	81
30,896	21	18	31 ADC	133
30,896	21	18	31 BAD	133
30,896	21	18	31 BCB	133
VR 6213	21	18	31 CAX	230
24,228	21	18	31 DDA	114
24,229	21	18	32 BBA	176
VR 6215	21	18	32 CCC	218
VR 6214	21	18	32 DCB	210
13,010	21	18	33 ACA	196
13,010	21	18	33 ABD	196
28,494	21	18	33 BCB	36
21,559	21	18	33 CBB	141
21,559	21	18	33 CBC	141
19,990	21	18	33 DCB	404
4,935	21	18	133 NAX	300
7168	21	18	33 S2 S2 B	47
11,227	21	18	33 S2 S2 B	47
21,559	21	18	33 S2 S2 B	47
VR 6219	21	18	35 CBX	140
2506	21	19	14 BBD	90
15211	21	19	16 CBA	147
21,243	21	19	18 ADD	240
8,143	21	19	19 CXX	64
5324	21	19	19 NDX	300
VR 6223	21	19	20 CCC	122
10,161	21	19	20 CCC	122
10,161	21	19	120 CDC	122
12,515	21	19	21 ACA	110
680	21	19	21 CCB	190
3,323	21	19	21 DCA	140
2,823	21	19	23 BAB	40.5
4,945	21	19	23 BAB	40.5
4,945	21	19	23 NED	81
VR 6225	21	19	27 CCX	152
10,160	21	19	27 CCX	152
24,430	21	19	27 DBC	153
12,296	21	19	28 ABC	177
31,723	21	19	28 BCC	240
5,169	21	19	28 DBC	120
VR 6226	21	19	28 DBX	46
20,099	21	19	28 DDA	67
5,275	21	19	29 ADB	281
6,132	21	19	29 BCB	338
9,964	21	19	29 CBB	238.5
9964	21	19	29 CDD	119.25
VR 6227	21	19	29 CDD	119.25
26,364	21	19	30 DBA	99
26,364	21	19	30 DCB	99
5,323	21	19	30 AXX	300
26,364	21	19	30 CCD	49.5
8,142	21	19	30 CCD	49.5
24,840	21	19	30 NBX	209
8142	21	19	30SHA	99
13,925	21	19	31 AAB	407
11,041	21	19	31 BAX	320
10,606	21	19	32 DBX	497
16,788	21	19	33 ABC	106.5
5,229	21	19	33 ABX	106.5
VR 6,228	21	19	33 BBB	150
3,858	21	19	33 CBC	150
24,971	21	19	33 CCB	105
30,325	21	19	33 CCB	105
16,708	21	19	33 DAA	192
9011	21	19	33 CDB	150
VR 6229	21	19	36 ACX	117.5
7803	21	19	36 BCC	117.5
6,097	21	19	36 BDX	157.7
VR 6230	21	19	36 DBX	157.7
9,388	21	19	36 WCC	157.7
25,600	21	20	4 BDD	71.4
25,600	21	20	4 DBB	71.4
25,600	21	20	4 DDD	71.4
14,954	21	20	DDD	71.4
10,338	21	20	DDD	71.4
10,338	21	20	DDD	71.4
12,849	21	20	8 CDX	382
10,338	21	20	9DAA	71.4
14,954	21	20	9 DAAA	71.4
10,339	21	20	9 DAAA	71.4
25,600	21	20	9DAAA	71.4
19,558	21	20	13 DCA	240
27,369	21	20	14 CCB	85
27,369	21	20	14 CCC	85
28,526	21	20	15 CCD	240
14,203	21	20	15 DBC	85
VR 6232	21	20	15 DBX	85
15,014	21	20	16 DBB	95
5166	21	20	16 DBB	95
5166	21	20	16 DBB	95
15020	21	20	16 NCX	120
15013	21	20	17 BDA	377
13709	21	20	17 CDC	52
VR 6233	21	20	17 CDX	52
16,343	21	20	17 DCC	52
28196‡	21	20	18 CCD	347
27,366	21	20	18 DCC	120
27,366	21	20	18 DDD	120
4454	21	20	19 AAX	240
8732	21	20	19 CBB	236
14,453	21	20	19 DAX	240
VR 6235	21	20	120 ABC	52
5,444	21	20	20 ABC	52
VR 6234	21	20	20 BAX	180
VR 6236	21	20	20 DDX	60
3990	21	20	21 BBX	111
7677	21	20	21 BXX	111
VR 6237	21	20	21 CBX	180
17,417	21	20	21 DCB	201
20,802	21	20	22 ABB	138
VR 6239	21	20	22 CDC	350
9,846	21	20	22 CDC	350
20,802	21	20	22 NEH	138
27,368	21	20	23 AAC	42
27,370	21	20	23 AAC	42
27,368	21	20	23 ACD	84
12,969	21	20	23 CBX	197
26,363	21	20	23 CDX	157
9129	21	20	23 NBD	300
VR 6240	21	20	24 ACX	240
18,657	21	20	26 ABB	80
VR 6242	21	20	26 ABX	80
16,190	21	20	26 BBB	240
VR 6241	21	20	26 DAX	50
18,657	21	20	26 NNA	80
8,413	21	20	28 AXX	180
8,388	21	20	28 BBB	140
10,376	21	20	28 CAA	168
8,413	21	20	28 NHD	180
26,208	21	20	29 BAA	69.5
VR 6243	21	20	29 BAX	69.5
26,208	21	20	29 BBB	139
26,208	21	20	29 BCB	69.5
VR 6243	21	20	29 BCX	69.5
26,208	21	20	29 NNB	139
31,751	21	20	30 AAB	115
25984	21	20	39 ABX	43.5
29,057	21	20	30 ABX	43.5
28,579	21	20	30 ABX	43.5
29,057	21	20	30 BBB	130.5
19,016	21	20	30 CBC	65.3
29,057	21	20	30 CBC	65.4
5,228	21	20	30 DAA	174
29057	21	20	30 NNH	130.5
VR 6247	22	16	4 BAX	40
16,948	22	16	4 BBD	131
9,475	22	16	4 CBX	15
VR 6248	22	16	4 WBB	75
VR 6249	22	16	5 CDX	8
2,872	22	16	5 AAX	185
26,126	22	16	6 ACA	150
4,615	22	16	6 CCC	240
10,184	22	16	7 DBD	104
20,085	22	16	8 NDX	234
15,287	22	17	1 ACA	55.5
15,287	22	17	1 ACC	55.5
19,387	22	17	1 BBB	81
16,734	22	17	1 DCA	140
19,378	22	17	2 ABC	81
VR 6276	22	17	2 DCA	40.5
19,378	22	17	2 DCA	40.5
19,378	22	17	2 DCD	81
19,103	22	17	3 DCC	309
25,331	22	17	4 BBB	120
5,017	22	17	4 EHB	160
18,550	22	17	5 BBB	96
4,939	22	17	5 BBB	96
6,991	22	17	5 BBB	96
13,318	22	17	5 BDA	144
18,550	22	17	5 BDA	144
18,550	22	17	5 CBB	72
4,940	22	17	5 CBB	72
6,991	22	17	5 CBB	72
13,318	22	17	5 CBB	72
18,550	22	17	5 DAD	288
23,519	22	17	6 ACC	240
26,683	22	17	10 EHC	360
5,704	22	17	11 BCX	490
15,217	22	17	12 ABB	300
14,690	22	17	12 CBB	168
VR 6254	22	17	12 CCX	50
15,530	22	17	14 CDA	213
22,261	22	17	14 NAX	140
7,430	22	17	15 XXX	1040
15,225	22	17	16 NBX	234
30,491	22	17	16 CAD	112.5
30,491	22	17	16 CDD	112.5
15,226	22	17	17 BAA	240
3430	22	17	18 AAX	120
VR 6255	22	17	18 AAX	120
6817	22	17	22 CDD	156
6599	22	17	22 SHA	120
16,789	22	17	24 CBC	372
21,999	22	17	24 NAX	240
26,072	22	17	27 ABD	156
26,340	22	17	28 NDX	330
10,065	22	18	1 BCC	160.6
6,558	22	18	1 BCC	160.7
19'110	22	18	1 BCC	160.7
28,028	22	18	1 DCB	203
3,105	22	18	SHA	105
31,688	22	18	1 SHA	105
9473	22	18	2 CBC	53.5
7745	22	18	2 CBC	53.5
3,635	22	18	2 DCX	180
5719	22	18	3 BCX	320
14,545	22	18	3 NAX
9,471	22	18	3 NWC
5,748	22	18	3 NWC
5,748A	22	18	3 NWD
9,472	22	18	3 NWD
7745	22	18	3 WSC
7745	22	18	3 WSD
10,066	22	18	3 WCB
9,135	22	18	4 ACC	120
8,311	22	18	4 ACC	120
8,311	22	18	4 BCC	80
7,565	22	18	4 BCC	80
9,135	22	18	4 BCC	80
VR 6257	22	18	4 CBX	99
5242	22	18	4 CBA	99
16,003	22	18	4 NDX	237
VR 6258	22	18	5 DBB	270
13,599	22	18	5 NBX	480
VR 6260	22	18	6 AAX	100
VR 6259	22	18	6 BBX	120
15,386	22	18	7 AAB	111
16,049	22	18	8 ABB	162
29,065	22	18	8 BCD	145
VR 6261	22	18	8 BCB	145
22,389	22	18	8 DBB	145
30,891	22	18	8 NHB	162
VR 6263	22	18	9 BBX	116
5269	22	18	9 BBX	116
VR 6264	22	18	9 CBX	168
10,750	22	18	9 CBX	168
11,602	22	18	9 NWA	310
7369	22	18	10 BBX	60
VR 6266	22	18	10 BBX	60
15,314	22	18	10 CBB	90
VR 6265	22	18	10 CBB	90
15,314	22	18	10 CCC	180
15,323	22	18	10 NSA	147
15,324	22	18	10 SSA	183
8199	22	18	11 ABX	240
15,735	22	18	11 BCC	234
15,806	22	18	11 CAA	117
VR 6267	22	18	11 CDB	60
28,602	22	18	11 CDB	60
4,406	22	18	12 ABX	254
30,351	22	18	13 DBB	118.5
30,351	22	18	13 NSD	118.5
VR 6268	22	18	14 ABX	97
11,472	22	18	14 BCX	190
VR 6269	22	18	15 ABX	87
3138	22	19	1 ABX	140
7340	22	19	1 ABX	121
13,437	22	19	1 BCC	234
22,914	22	19	1 CCC	238
15,931	22	19	2 CAB	120
15,931	22	19	2 CBA	120
28.921	22	19	2 DAB	238
16,252	22	19	3 BAB	317
10,766	22	19	3 BDD	158.5
10,765	22	19	3 BDD	158.5
10,766	22	19	3 NAX	158.5
10,765	22	19	3 NAX	158.5
11,097	22	19	4 AAB	234
28,696	22	19	4 BAB	75
20,252	22	19	4 BCD	75
28,696	22	19	4 CAC	120
28,696	22	19	4 CAC	120
22,225	22	19	4 DAA	115.5
29,235	22	19	5 BDB	240
27,053	22	19	6 NDX	240
20,237	22	19	7 DDA	240
16,838	22	19	ACD	240
22,769	22	19	8 BAC	240
26,122	22	19	8 CCX	120
17,340	22	19	8 DBC	120
24,231	22	19	18 DDD	120
30,892	22	19	112 ABA	290
18,369	22	19	12 BAA	146.5
11,001	22	19	12 BAA	146.5
18,369	22	19	12 BBD	293
14,221	22	20	11 DBD	57.7
14,221	22	20	11 DCC	57.7
18,668	22	20	12 BCC	63
14,221	22	20	14 BAD	57.7
10,643	22	20	11 DCC	150
10,643	22	20	11 DBD	150
10,643	22	20	14 BAD	150
‡ (overlaps with #10,331 (Hodg. Co.))

Hodgeman County

Explanation: *Designates well overlap(s) with one or more wells right below it in parenthesis.
+Indicates the maximum assigned pumpage value, all the overlapping wells can pump simultaneously.
#VR = vested right or file number

Water Right Number (VR = vested right)	Location			Pumpage (Acre feet)
	Township	Range	Section
*951	21	21W	6 W2 SW	180
(15,487)	21	21	6 (approx. 350' N of SW corner of SW)	320+
	21	21	2 SW corner SE SW
1306	21	21	6 SE SW	30
*25,759	21	21	23 NW NE SE	280+
(30,427)	21	21	23 NW NE SE	144
23,926	21	21	23 NE NE NW	278
12,519	21	21	24 SW NE NE	320
6093	21	21	25 NE NE	173
25,494	21	21	24 SE NE NW	160
VR 5	21	21	21 NW SE	320
4947	21	21	14 NW SW SW	330
VR 77	21	21	17 NW SW	140
27,435	21	21	16 NW NW SW	640
10,337	21	21	17 NW SE	302
6632	21	21	18 W2 E2	240
VR 2	21	21	18 NE NE	130
30,427	21	21	23 NW NE SE	144
4353	21	21	24 N2 SW	397
VR 8	21	21	25 NW SW	270
VR 7	21	21	25 NW SE	140
8084	21	21	133 NE SE NE	224
8698	21	21	33 SW SW SE	273
*15,985	21	21	33 SW SW SE	916+
	22	21	4 NW NE NE
	22	21	4 SW NE NE
	22	21	4 SE SW NE
(VR 10)	21	21	33 SW SW SE	402
	21	21	33 NW NE NE
	22	21	4 NE NE
(8698)	21	21	33 SW SW SE	400
(6661)	22	21	4 SE SW NE	277
*10,331	21	21	13 SE Corner	694+
(28,196) Pawnee Co.	21	20	18 SE SW SW	450
*27,554	21	21	21 SE NW SW	578+
	21	21	21 NW SE SW
(VR 6)	21	21	121 SW SW NW	440
	21	21	21 NC N2 NW NW
*2800	21	21	7 S2 SW	200
	21	21	7 S2 SW
(9168)	21	21	7 SW (Pawnee Creek)	16
(VR 3)	21	21	18 NW NW	460
(8820)	21	21	7 SW NW NE	952
(15,613)	21	21	7 SW NW NE	1200+
	21	21	7 NE NW SE
(7138)	21	21	7 SW NW NE	433
*VR 11	21	21	34 SW SW NE	470
	21	21	34 SW SW SW
	21	21	34 NW NW SE
(10,018)	21	21	34 SW SW NE	1104+
	21	21	34 SW SW SW
	21	21	34 NW NW SE
(14,138)	21	21	34 SW SW NE	746
	21	21	34 SW SW SW
	21	21	34 NW NW SE
*10,017	21	21	34 NW NW NE	598
	21	21	34 NW NE NW
(2945)	21	21	34 NW NW NE	260
	21	21	34 NW NE NW
6108	21	21	35 (Nr. Ctr. S of NW NE SE)	28
*19,641	21	21	36 (Nr. Ctr. of W side of NW)	296
(4618)	21	21	35 NW SW NW	400+
(578)	21	21	35 NW NE NW	279
5194	21	21	36 SE SW SW	170
	21	21	1 NE NW NW
VR 12	21	21	35 SW SW	194
VR 15	21	21	36 NW NE	310
VR 14	21	21	36 NW SE	120
VR 16	21	22	1 SE NE	60
VR 17	21	22	1 NW SE	150
11,318	21	22	1 SE NE SE	38
VR 76	21	22	1 SW NW	120
15,883	21	22	1 NW SW	320
*VR 20	21	22	2 SE NW NE	80
(16,099)	21	22	2 SE NW NE	154+
*VR 18	21	22	2 NW NW	106
(14,201)	21	22	2 SE NW NW	290+
	21	22	2 (Nr. Ctr. of W side of SW NW)
17,281	21	22	2 SW NW NE	-320
*9151	21	22	3 SW NW NW	240
(17,450)	21	22	3 SW NW NW	242+
*313	21	22	11 NW NW NE	240
(23,674)	21	22	11 SW NW NE	312+
*VR 22	21	22	12 (16' from original well SW NW)	260+
(8424)	21	22	12 NE NW NW	160
VR 23	21	22	12 NW SE	124
14,522	21	22	12 SE SE	152
*VR 21	21	22	12 NW NW SE	100
(5368)	21	22 12	NW NW SW	200+
*28,991	21	22	13 NE NE NE	312
(8,507)	21	22	13 NE NE NE	312+
9356	22	21	2 NW NW	222
VR 27	22	21	3 NW NE	144
	22	21	3 NW SE
VR 26	22	21	3 NW SW NW	220
9991	22	21	4 SW NW SW	226+
(VR 28)	22	21	4 SW NW SW	60
25,354	22	21	4 NW SW SW	92
6,185	22	21	5 SW SE SE	290
*30,244	22	21	5 SE SW NW	308+
(31,625)	22	21	5 Nr. Ctr. W of SW NW	200
21,808	22	21	5 (N. Ctr. W side of Lot 2, NW NE)	320
	22	21	5 SW SW NE
14,771	22	21	6 SW SW SE	312
14,932	22	21	6 NW SE SW	536
14,122	22	21	7 SE SW SE	122
11,865	22	21	7 SE SE	124
VR 30	22	21	7 SE NE	110
30,924	22	21	7 SE SE SE	124
*11,316	22	21	7 Nr. Ct. S of NW NW	516+
	22	21	7 NW SW
	22	21	7 NW SW SW
(VR 34)	22	21	7 NW SW SW	54
6595	22	21	8 NW SW NE	244
*14,124	22	21	8 SE SE SW	360
	22	21	8 Nr. Ctr. NW SW
(23,638)	22	21	8 Nr.Ctr. SW SW	276
	22	21	8 SE SE SW
(8825)	22	21	8 SE SE SW	360+
(6153)	22	21	8 SE SE SW	172
*VR 35	22	21	8 NW NW NW	140
(19,201)	22	21	5 SW NW SW	314
*28,164	22	21	9 NE NE NW	260
(5931)	22	21	9 SE NW SW	220
(VR 36)	22	21	1 NW SE SW	420+
	22	21	9 SW SW SW
18,320	22	22	11 NE NE SW	254
	22	22	11 Nr. Ctr. SW SW
28,587	22	22	11 Nr. Ctr. W of NW NW	85
28,088	22	22	11 SE SE NE	310
VR 40	22	22	12 NW SE	430
	22	22	12 SW SE
	22	22	12 SW SW
VR 42	22	22	13 NW SE	202
*VR 43	22	22	13 SW NW	100
(28,061)	22	22	13 Nr. Ctr. NW NE	325+
5665	22	22	14 SE	380
*15,255	22	22	14 Nr. Ctr. of NW	316
(16,577)	22	22	15 NE SE NE	320+
32,092	22	22	22 SE NE	38.4
VR 44	22	22	23 NE corner of SE SE	120
934	22	22	23 SE	114
VR 46	22	22	23 NE NE	214
20,062	22	22	23 SE SE SE	64
*175	22	22	23 NW SW NW	120+
(26,876)	22	22	23 NW SE NW	64
(26,877)	22	22	23 Nr. Ctr. W of NW NW	52
*7626	22	22	26 SW NW SW	170
(25,698)	22	22	26 SW NW SW	202
	22	22	26 SE NE SW
*12,011	22	22	27 SW NW SE	282+
(32,079)	22	22	27 SW SW SE	140
(VR 48)	22	22	27 SW SW SW	230
	22	22	27 NE NE SW
1449	22	22	28 NE NE	135
VR 50	22	22	31 SW SW SE	200
	22	22	31 SW SW
*19,130	22	22	31 SW SE SW	768+
	23	22	6 NW NE NW
(VR 51)	22	22	31 NW NW SW	106
(VR 65)	23	22	6 NW NE NW	177
(28,176)	23	22	6 NW NE NE	284
27,815	22	22	32 Nr. Ctr. E2 of W2 SE	128
*4114	22	22	32 (Nr. Ctr. S of SE SW SW) 100	128
	22	22	32 Nr. Ctr. SW corner SW
(8781)	22	22	32 SE SW SW	255+
	22	22	32 Nr. Ctr. SW Corner SW
VR 53	22	22	33 SW SW	110
19,669	22	22	33 SE SW SE	235
28,099	22	22	33 NW NW SE	48
*23,665	22	22	33 SE NE NE	255
(3240)	22	22	33 SE SE NE	155
(VR 57)	22	22	34 (Nr. Ctr. N2 of NW SW NW)	160
*VR 58	22	22	34 SW NW NE	120
(10,954)	22	22	34 SW NW NE	176+
	22	22	34 SE SW NE
26,274	22	22	34 SW NW SE	246
	22	22	34 NW SW SE
VR 59	22	22	35 SW SW	36
*VR 61	22	23	35 SE SE SE	94
(11,730)	22	23	35 SE SE	220+
	23	23	1 SW NE NW
(17,819)	23	23	1 NE NE SW	80
VR 62	22	23	35 NW SE	200
	22	23	35 SW NE
17,105	22	23	35 NW NW SE	150
	22	23	35 SW NW SE
	22	23	35 NE SW SE
8407	22	23	36 SE	120
VR 71	22	23	35 SE SE SW	130
	23	23	2 NE NW
VR 63	23	22	3 CS SW SE	76
27,063	23	22	5 NE NE NE	290
	23	22	5 NE NE NE
28,188	23	22	5 W2 E2 W2	102
*11,269	23	22	5 NE NW	180+
(VR 64)	23	22	15 SW NE NW	60
VR 66	23	22	11 SW SW SW	180
28,177	23	23	1 SW NE NE	160
*3529	23	23	2 NE NW NE	149
	23	23	2 SE NW NE
(7032-A)	23	23	2 NE NW NE	230+
	23	23	2 SE NW NE
*VR 72	23	23	3 SW SW NE	50
(28,015)	23	23	3 SE NW NE	126+
	23	23	3 SW SW NE
13,426	23	23	4 NE NW SW	900
	23	23	4 NE NW SW
	23	23	4 NW NE SW
*848	23	23	4 Nr.Ctr. SE SE	45
(15,437)	23	23	3 NW NW NW	160+
	23	23	3 NW NW NW
	23	23	4 Nr. Ctr. SE NE
(847)	23	23	3 NW NW NW	69
*VR 1	23	23	6 SE NW SW	99
(1787)	23	23	6 NW NE SW	235
(28,266)	23	24	1 SW SW NE	291.4+
	23	23	6 NW NE SW
5432	23	23	6 SE SW SW	40
*2018	23	23	6 SW SW SE	20
(11,259)	23	23	6 SW NE SE	208+
	23	23	6 NW SE SE
*9854	23	23	8 SE NW NW	114+
	23	23	8 NW NE NW
(29,062)	23	23	8 NW NE NE	88
13,413	23	23	9 Nr. Ctr. of NW	320
*5853	23	24	1 NW SW SW	114
(15,765)	23	24	1 Nr. Ctr. NE SW	246
	23	24	1 NW SE SW
	23	24	1 NW SE SW
	23	24	1 NW SW SW
(22,821)	23	24	1 NE SE SW	530+
	23	24	1 NE NW SW
	23	24	1 NW SW SW
	23	24	1 NW SE SW
	23	24	1 NW SE SW
(4879)	23	24	11 NE SE SW	7
19,117	23	24	2 NE SE SW	160
	23	24	2 NE SE SW
	23	24	2 NE SW SE
*5285	23	24	4 SE SW SE	68
(28,032)	23	24	4 SW SW SE	92
*1075	23	24	5 SW SE SW	60
(2674)	23	24	5 SW SW SW	105+
	23	24	5 SW SE SW
5824	23	24	5 SE	86
5201	23	24	6 SE SE SE	5
969	23	24	7 NE NW	47
16,152	23	24	8 NW SW NW	40
17,190	23	24	10 NW NE SE,	110
	23	24	10 NE NW SE
*19,706	23	24	11 NW NW NE	158
(22,933)	23	24	11 NW NW NE	192
	23	24	11 NE NW NW
	23	24	11 NW NW NW

Ness County

Explanation: *Designates well overlap(s) with one or more wells right below it in parenthesis.
+Indicates the maximum assigned pumpage value, all the overlapping wells can pump simultaneously.
#VR = vested right or file number

Water Right Number (VR = vested right)	Location			Pumpage (Acre feet)
	Township	Range	Section
VR 8	20	22W	19 SW SE SE	60
VR 9	20	22	19 NE SW SW	130
VR 10	20	20	20 NE SE SE	250
	20	20	20 NE SE SE
	20	20	20 SW NW SE
VR 11	20	22	21 NW NW SE	140
VR 12	20	22	28 NW NW SW	90
VR 13	20	22	28 NW SW SW	102
VR 14	20	22	28 SW SW SW	106
*VR 15	20	22	29 NW SE NW	150
(16,233)	20	22	29 SE SW NE	264+
*VR 16	20	22	30 NE NW SW	59
(130)	20	22	30 NE NW SW	59+
*VR 17	20	22	30 NW NW SE	80
(31,375)	20	22	30 NE NE SE	124+
VR 18	20	22	30 SE SW NW	227
	20	22	30 N/C W Side NE
VR 19	20	22	32 NE NE NE	38
VR 20	20	22	33 NE NE NE	30
*VR 21	20	22	33 SE NE NE	100*
(30,780)	20	22	133 SE NW NE	76
VR 22	20	22	~34 SW SW NW	166
VR 23	20	22	35 NW SW SW	120
VR 24	20	22	35 NW NW SE	130
VR 25	20	22	35 SW SW NW	120
VR 26	20	22	36 SW SW SW	160
*VR 27	20	23	22 SW SW SW	105
(31,679)	20	22	20 NW SW SW	200*
VR 28	20	23	24 SW SW SE	72
VR 29	20	23	25 NW SW NE	400
	20	23	25 NE NW SE
	20	23	25 NW SW SW (2 wells)
138	20	23	28 NE SE SE	340
VR 30	20	23	132 N/C SE SW	140
VR 31	20	23	32 SW NW NW	140
*VR 32	20	23	33 NW NE NE	80+
(8011)	20	23	33 NW NE NE	34
*VR 33	20	23	33 (Nr. Ctr. N Side SW NW)	320
(31,362)	20	23	33 SW SW NW	320+
VR 35	20	24	35 SW SW SW	240 (surface & ground water
*VR 36	20	22	27 NW NW SW	188
(30,838)	20	22	27 SE NW NE	502+
	20	22	27 Nr. Ctr. S2 SW SE
	20	22	27 NW NW SW
	20	22	27 SE SE SW
134	20	23	28 SE SE	170
*484	20	23	26 SE NW	100
(6448)	20	23	26 SE SE NE	150+
	20	23	26 SW SE NW
529	20	22W	34 SW SW NE	150
5885	20	20W	28 SW SW NW	98
6709	20	23	23 SE SW SW	150
*6710	20	23	26 SW SW SE	240
(24,364)	20	23	26 SW NW SE	270+
*7421	20	22	33 NE NW	38
(30,780)	20	22	33 SE NW NE	76+
*7483	20	23	25 NW	220
(14,464)	20	23	25 NW NE NW	256+
	20	23	25 SW SW NW
*8184	20	24	36 N2	267
(14,120)	20	24	36 NE SE NW	472+
8402	20	22	27 SW SE	64
31,361	20	23	33 SW NW SW	240
9097	20	23	35 NW NW NW	260
9962	20	22	36 NW SW SE	264
*11,044	20	23	26 E of SW corner	314
(22,991)	20	23	26 SE NW SW	314+
13,350	20	22	27 SE SW NW	100
14,465	20	22	29 NW NW SE	320
14,466	20	22	129 NW NW SW	70
17,406	20	23	27 SE SE NW	444
	20	23	27 SE SE NW
17,525	20	22	26 SW SW SW	64
17,769	20	23	27 SW SE SE	148
17,770	20	23	27 NW SW SE	152
29,583	20	22	17 NW NW SE	249
29,956	20	23	16 Nr. Ctr. N Side NE	173
31,360	20	23	34 NW NE NW	240
	20	23	34 SW NE NW
33,070	20	22	28 Nr. Ctr. W Side SE	312

---

Prev Page--Recommendations, References || Next Page--Model Values

Kansas Geological Survey, Hydrogeology
Placed on web Aug. 1, 2012; originally published April 1980.
Comments to webadmin@kgs.ku.edu
The URL for this page is http://www.kgs.ku.edu/Hydro/Publications/OFR80_6/09_wells.html
