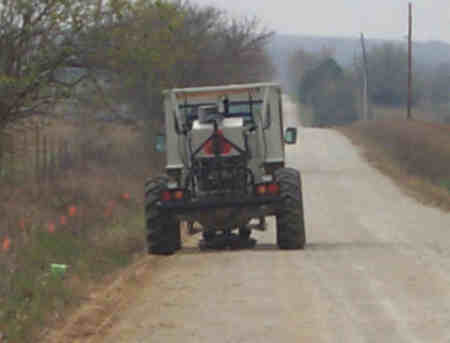

IVI Mini-Vibrator
Specifications
- Max. Theoretical Peak Force - 11,970 Pounds
- Mass Piston Area - 3.99 Inches
- Reaction Mass Weight - 990 Pounds
- Reaction Mass Stroke - 2.75 Inches
- Servovalve - 80 GPM
- Servovalve Pilot Filter - 3 Micron
- Baseplate Area - 1,810 Inches
- Baseplate Assembly Weight - 855 Pounds (with pad)
- Lift System Stroke - 38 Inches
- Lift Cylinder Diameter - 2.5 Inches
- Lift Synchronization - Mechanical Crossbeam
- Vibrator Pump Flow - 25 GPM @ 2100 RPM
- Holddown Weight - 13,200 Pounds
For more information go to the web site of the manufacturer,
Industrial Vehicles International, Inc.

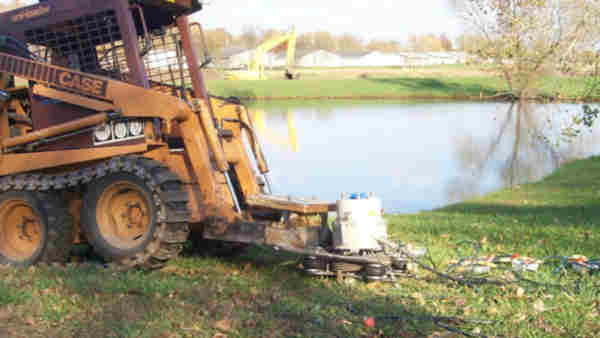

Homemade Forklift Vibrator
|
