Marshall County

Sec 33, T. 3 S, R. 6 E.
Move to another county

SE 1/4 sec 33
Measured by M.K. Elias, 1932
Remarks: IV-8
location within section

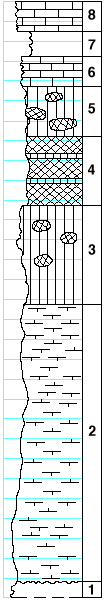

strat column from original form
Unit No. Description Thickness
ft.
  Towanda limestone formation
8 Limestone, flaggy, find-banded, light-gray to light-buff (much slumped) 3
7 Shale, light-gray 2.5
6 Limestone, crystalline, banded 3
  Holmesville shale formation
5 Shale, calcareous, greenish with some red spots 5
4 Shale, red, with few thin green bands 7
3 Shale, greenish, with some red spots, somewhat calcareous in upper part 10
2 Shale, calcareous, to mudstone 28
1 Limestone with flint bands --
