Using Fig. 3. Stratigraphic cross-section of the Lower Morrow in the Arroyo field and specifically focusing on the Kendrick 23-1 to enter the sequence stratigraphy in the lower morrow from a Sedimentary Geology paper on the Sequence stratigraphic in the Morrow Sandstone(1)
 |
 |
| Starting from the example Kendrick 23-1 (15-187-20632) well in Stanton County, Kansas, which was loaded from the KGS Database into this program. See http://www.kgs.ku.edu/PRS/Ozark/PROFILE/HELP/KGS/well_data/index.html for help in loading KGS Well Data into the Profile Program | |

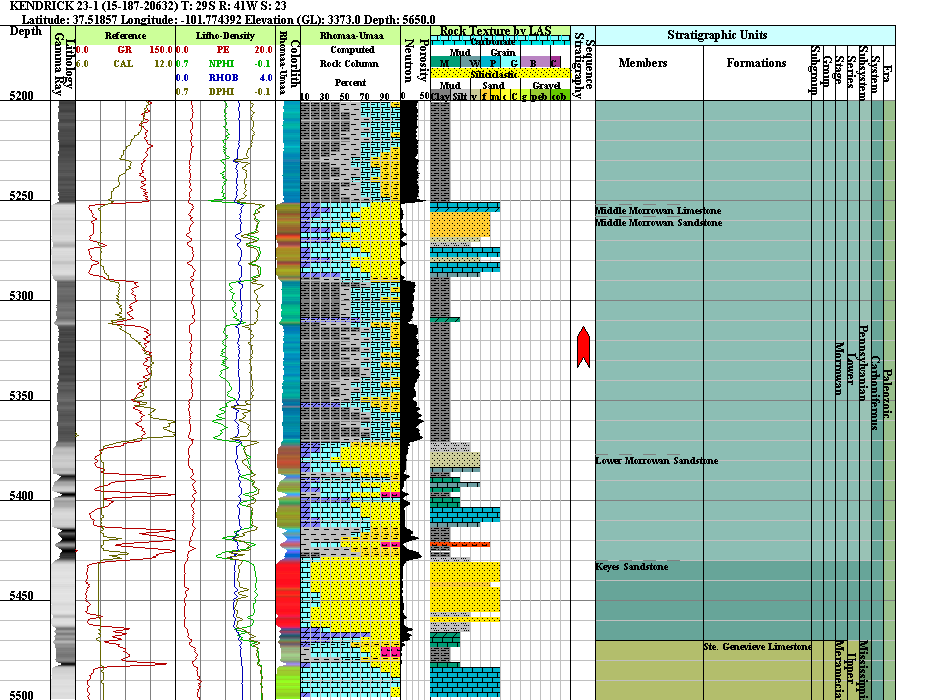

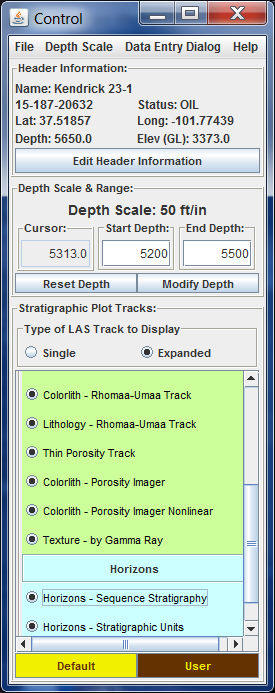

| Step 1: Go to the bottom of the "Stratigraphic Plot Tracks" Panel at the bottom of the Profile Plot Control Dialog. Turn on the Horizon - Sequence Stratigraphy radio button. This will display the Sequence Stratigraphy Plot Track on the Profile Plot. | |

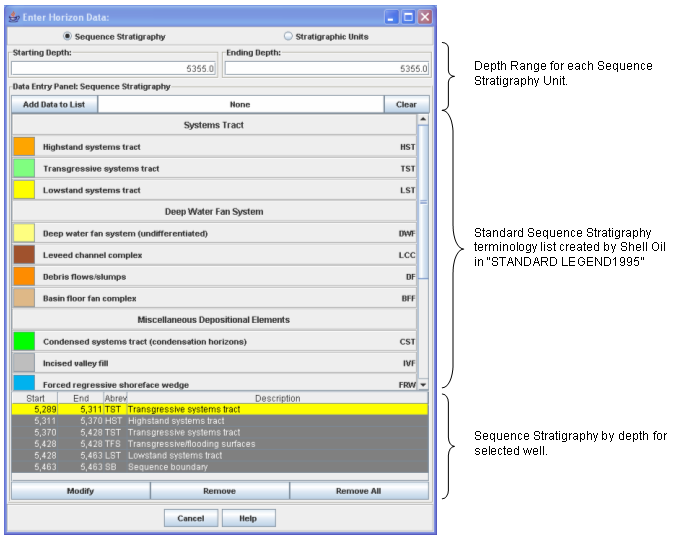

| Step 2: Click on the Sequence Stratigraphy Plot Track to display the Sequence Stratigraphy Data Entry Dialog. | |
The Sequence Stratrigraphy Plot Track colors and abbreviations uses Shell Oil Company Standard Legend 1995 Document(2).
| Select a button from the following list to view Help pages. | ||
|---|---|---|
 |
Add Sequence Stratigraphic Unit. | |
|
|
Modify Sequence Stratigraphic Unit. | |
|
|
Remove Sequence Stratigraphic Unit. | |
