HELP: Cross Section Plots
Log Data Type Panel

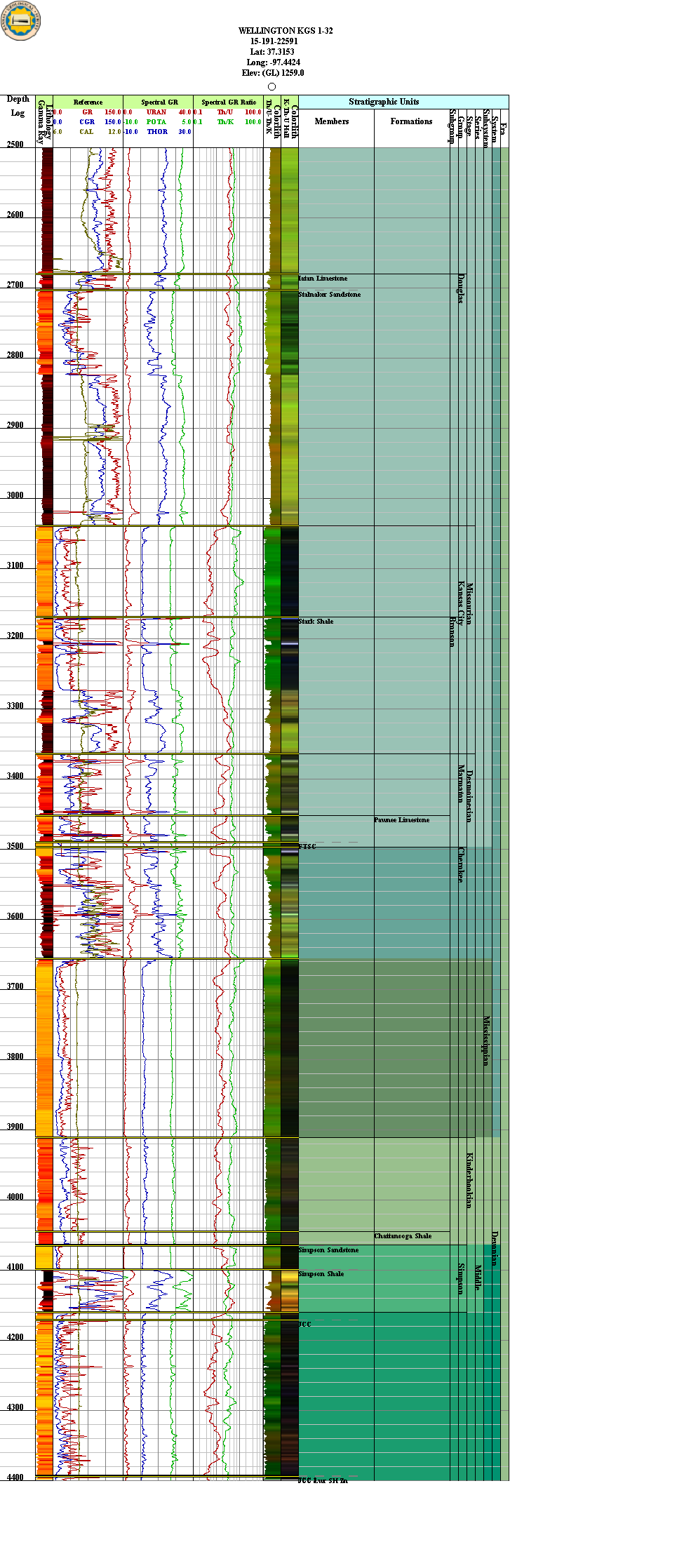

Spectral Gamma Ray Log Presentation

Plot Track Type Panel - Default Radio Button

• Digital LAS File Curve (Log) Data Tracks

  • Lithology Color Track Gamma Ray Colorlith Colors by API Level
  • Reference Log Track Gamma Ray (GR), Spontaneous Potential (SP), Caliper Logs (CAL) Logs
  • Spectral Gamma Ray - Th,U,K Log Track Thorium (Th), Uranium (U), Potassium (K) Logs
  • Spectral Gamma Ray Ratio Log Track Thorium (Th) / Uranium (U), Thorium (Th) / Potassium (K) Ratio Logs
  • Colorlith Th/U-Th/K RGB Color Track This track mixes the RG colors by log curve values as follows,
    RED: Thorium (Th) / Uranium (U) Ratio
    GREEN: Thorium (Th) / Potassium (K) Ratio

  • Colorlith Th/U-Th/K RGB Color Track This track mixes the RGB colors by log curve values as follows,
    RED: Potassium (K)
    GREEN: Thorium (Th)
    BLUE: Uranium (U)
    after Composite Colour Display of Spectral Gamma-Ray Logs, by Matt Hall, Canadian Well Logging Society, Dec 2005, v.24

• Horizons Track

  • Stratigraphic Units (Tops) Plot Track
