HELP: Cross Section Plots
Log Data Type Panel

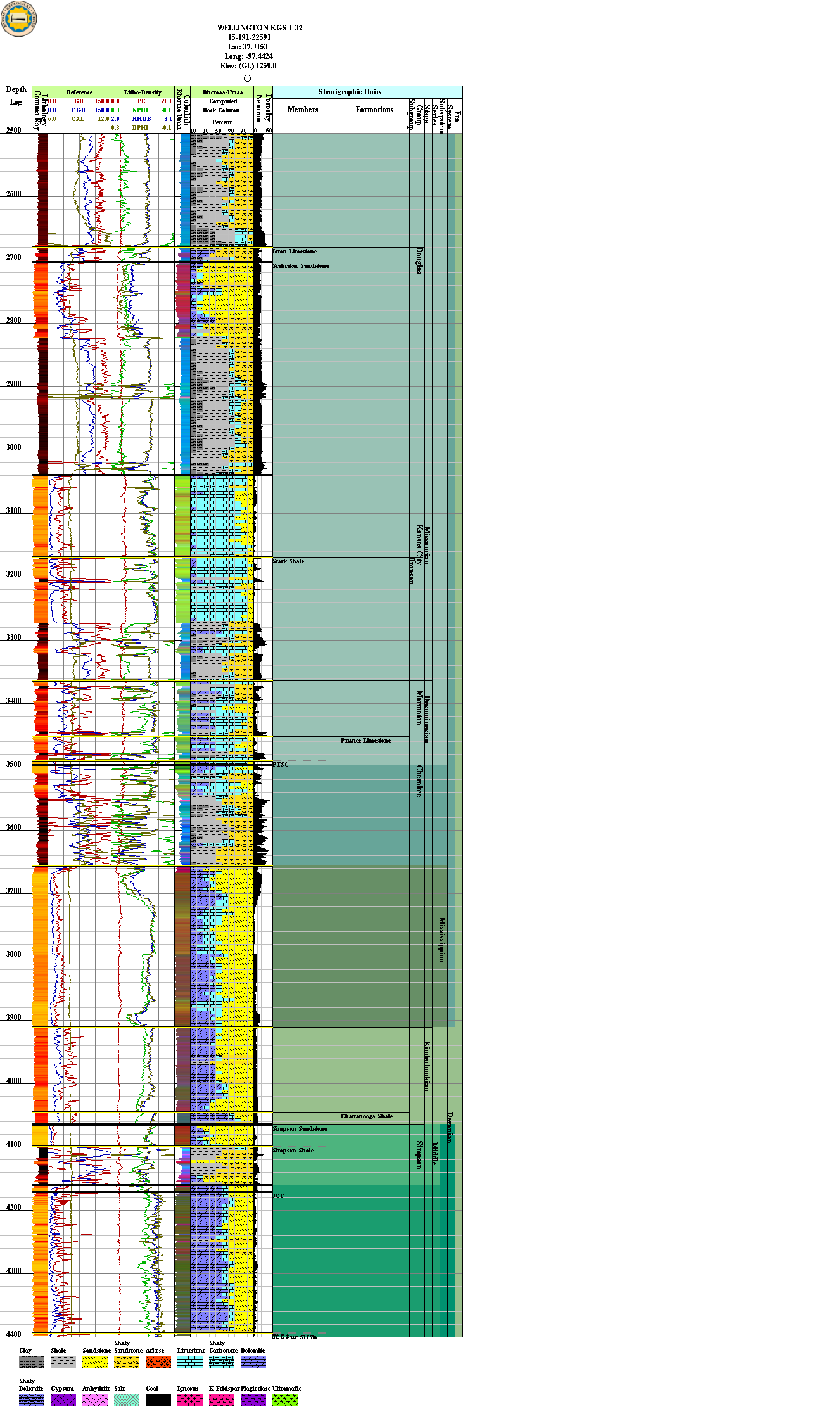

Litho/PHI Log Presentation

Plot Track Type Panel - Default Radio Button

• Digital LAS File Curve (Log) Data Tracks

  • Lithology Color Track Gamma Ray Colorlith Colors by API Level
  • Reference Log Track Gamma Ray (GR), Spontaneous Potential (SP), Caliper Logs (CAL) Logs
  • Litho-Density Log Track Neutron Porosity (NPHI), Bulk Density (RHOB), Photoelectric Factor (PE) Logs
  • Colorlith RGB Color Track This track mixes the RGB colors by log curve values as follows,
    RED: Apparent Grain Density (Rhomaa)
    GREEN: Apparent Photoelectric (Umaa)
    BLUE: Gamma Ray (GR)
  • Lithology Rock Composition Track Computes the "Mineral" Composition of the Rock Column by Apparent Grain Density (Rhomaa) , Apparent Photoelectric (Umaa) , Gamma Ray (GR) Logs
  • Thin Porosity Track Neutron Porosity Histogram Plot

• Horizons Track

  • Stratigraphic Units (Tops) Plot Track
