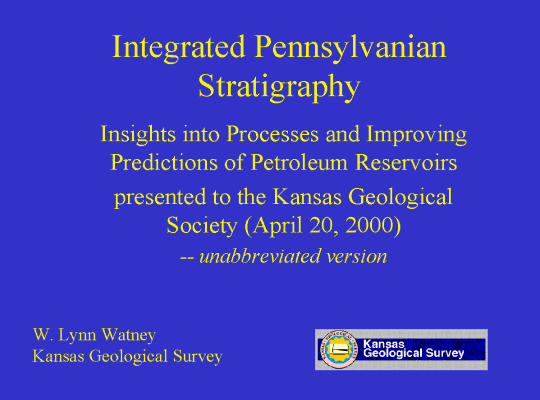

Integrated Pennsylvanian Stratigraphy OFR 200035

1
Title
2
Outline
3

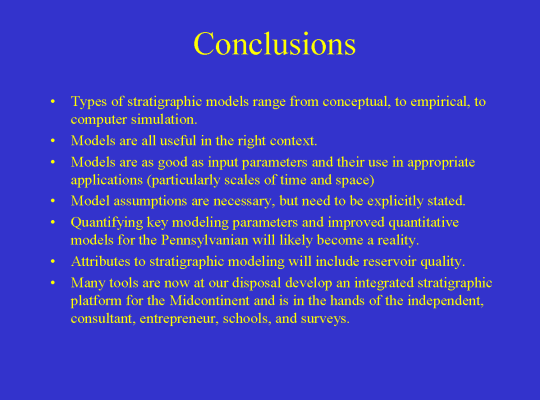

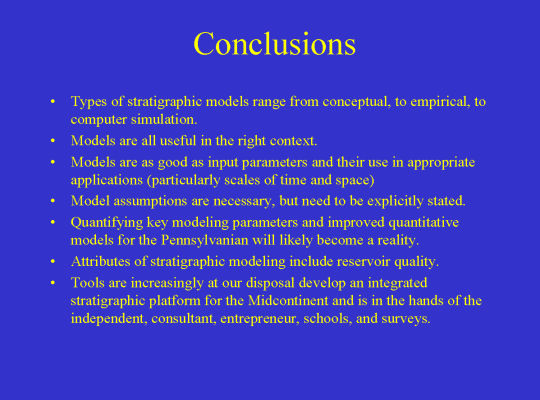

Conclusions
4

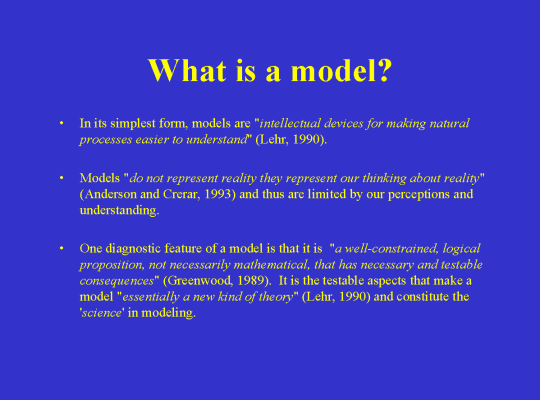

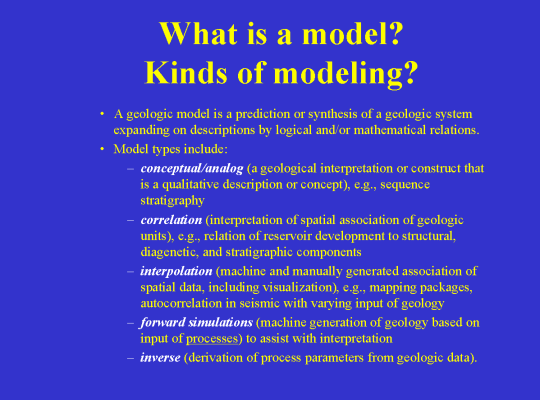

What is
a model?
5
Kinds of
modeling
6

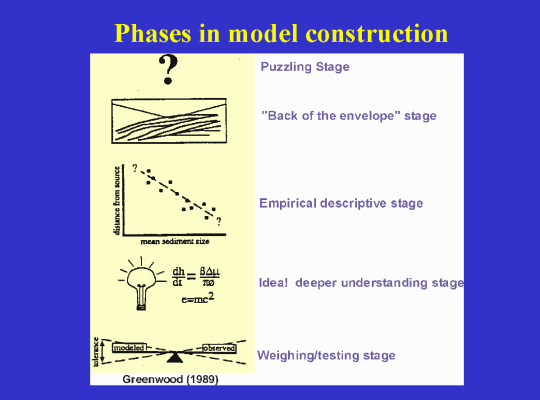

Phases
in model construction
7

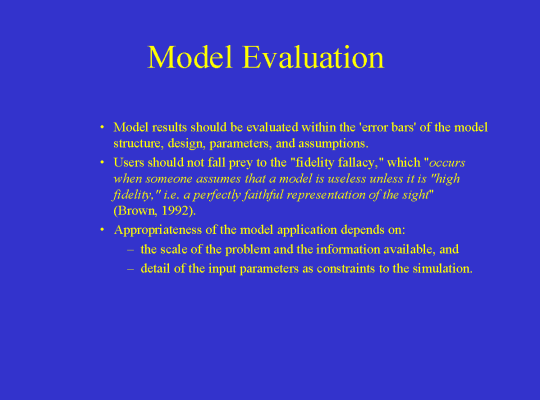

Model Evaluation
8

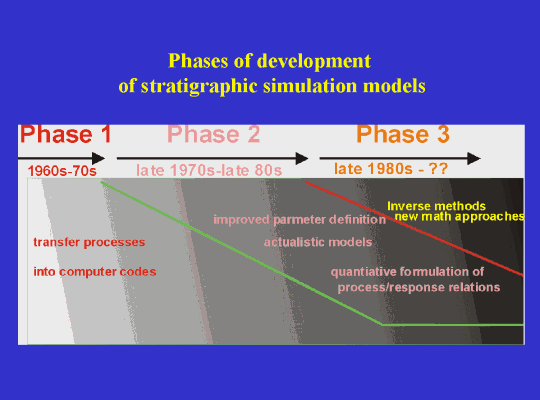

Phases
of development of stratigraphic simulation models
9

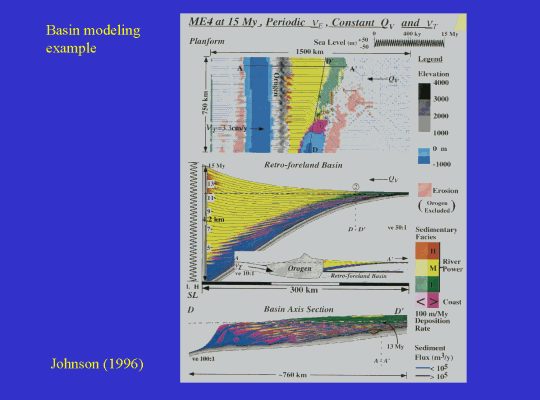

Basin modeling
example
10
Common
Input Parameters
11

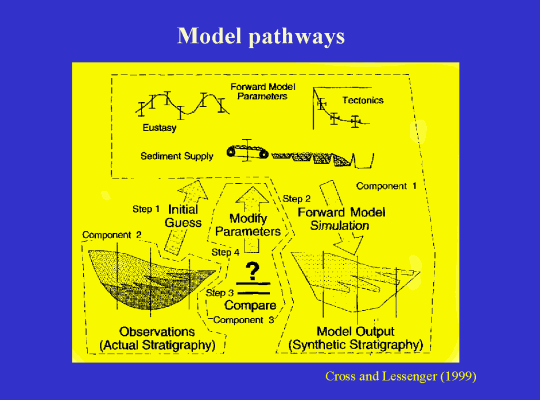

Model pathways
12

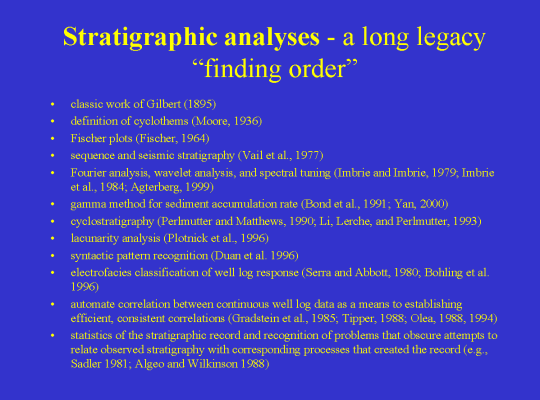

Stratigraphic
analyses
13

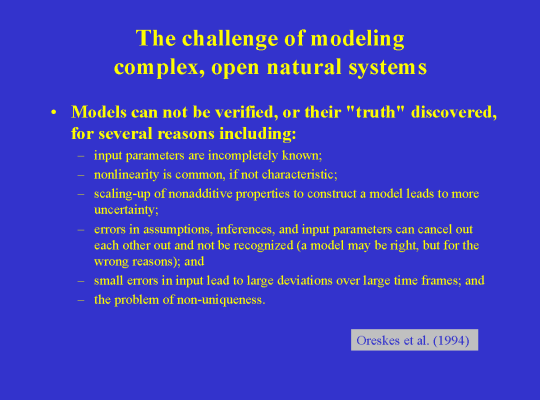

Challenge
of modeling
14

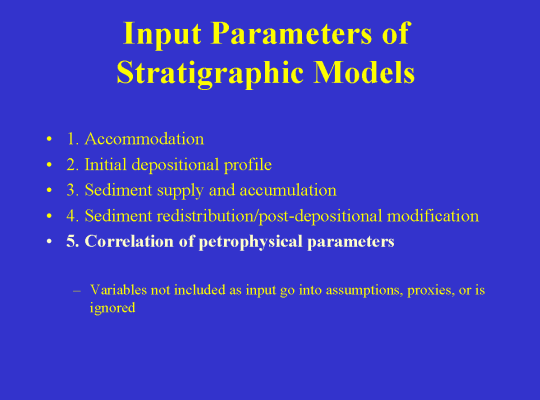

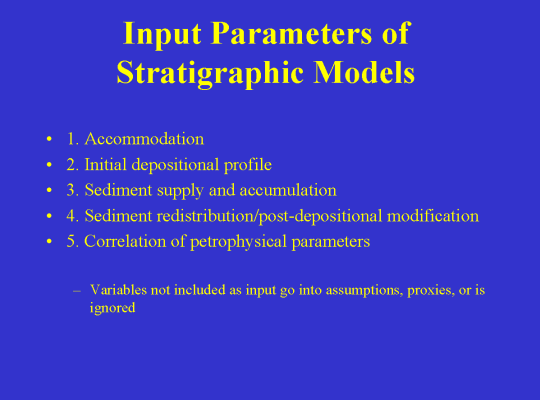

Input Parameters
of Stratigraphic Models
15

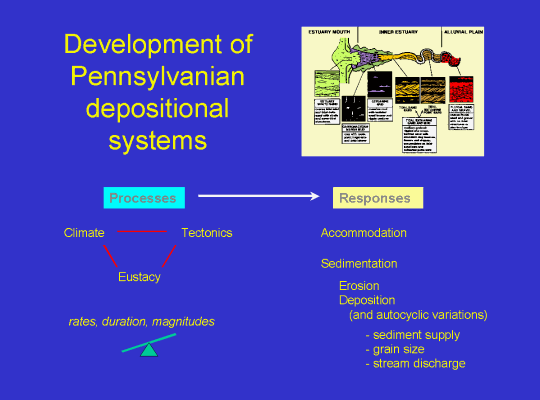

Development
of Pennsylvanian depositional systems
16

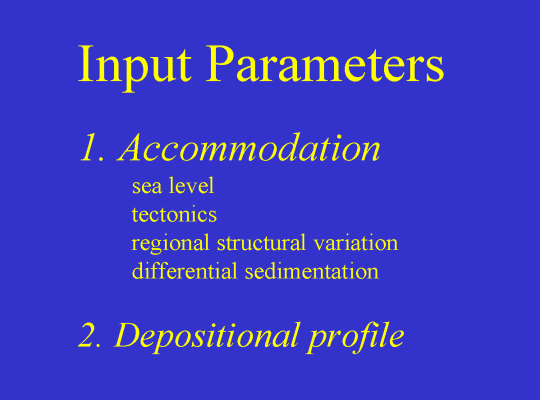

Input Parameters:
Accommodation
17
Model of
lower stand in sea level
18
Model of
rising sea level
19
Example
of conceptual model
20
Relative

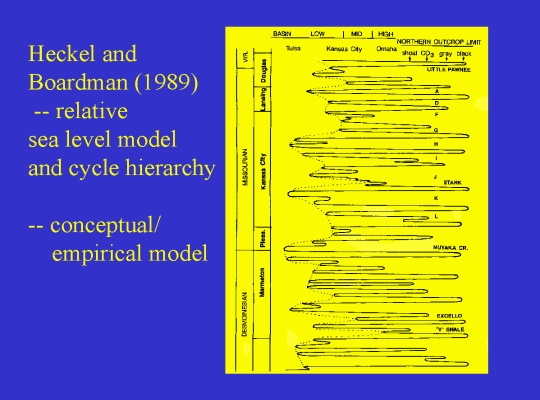

sea level model and cycle hierarchy
21

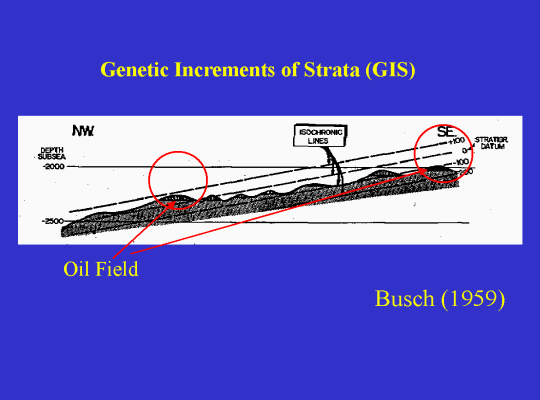

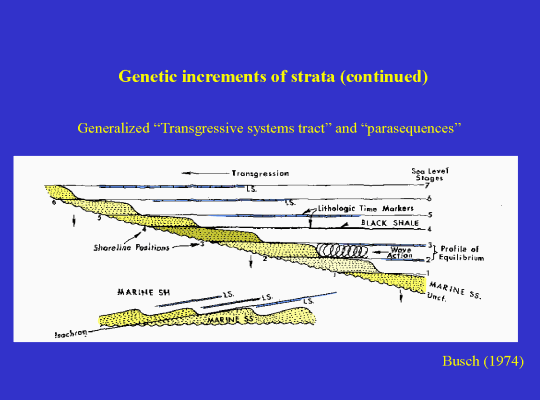

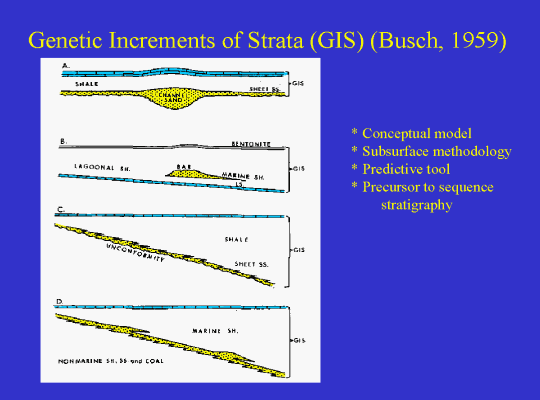

Genetic
Increments of Strata
22
GIS model
23

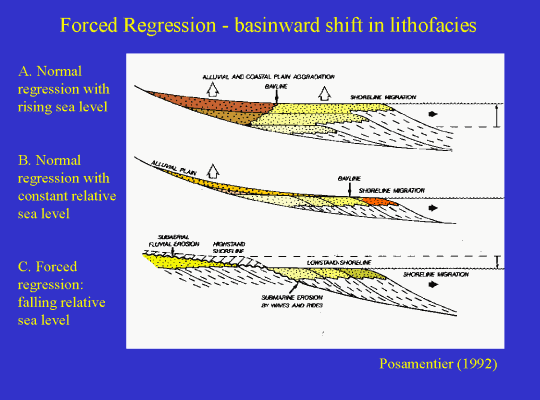

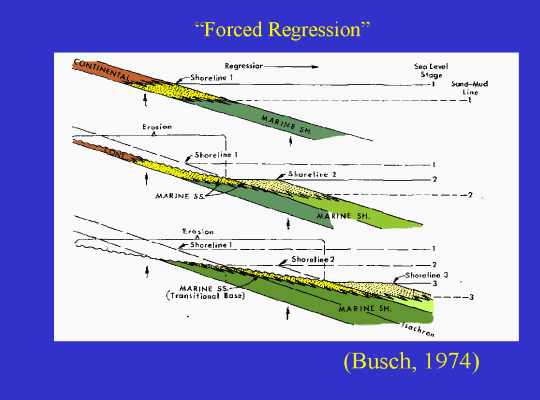

Forced
Regression
24
GIS model
(continued)
25

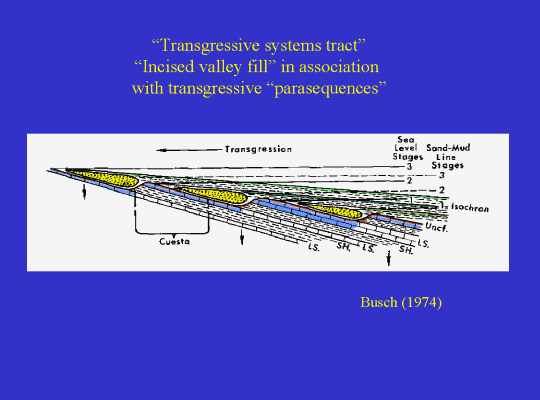

Transgressive
systems tract
26

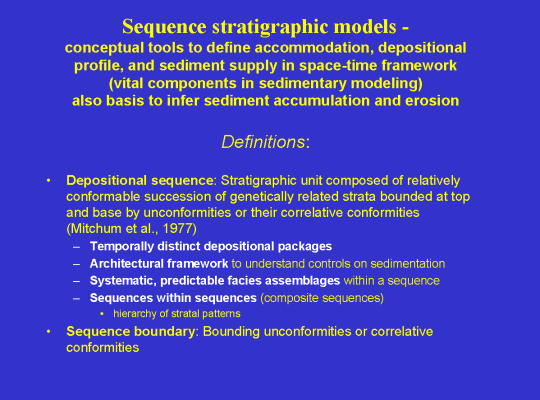

Sequence
stratigraphy models
27

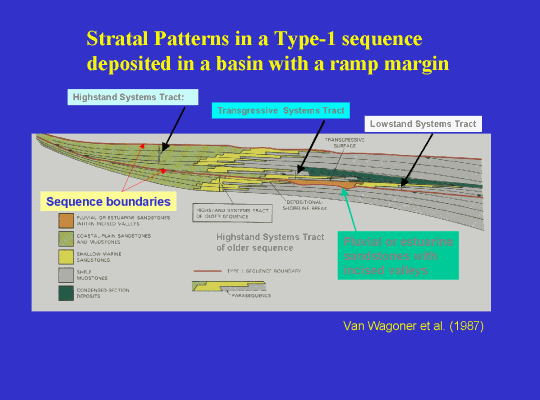

Stratal
Patterns in a Type 1 sequence
28

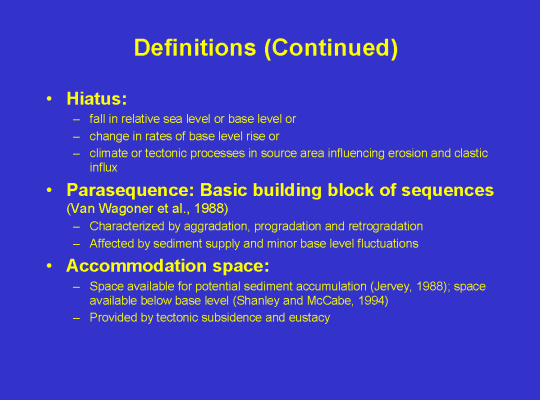

Definitions
(continued)
29

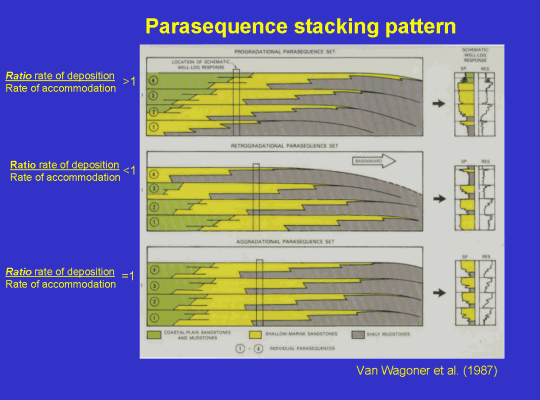

Parasequence
stacking pattern
30

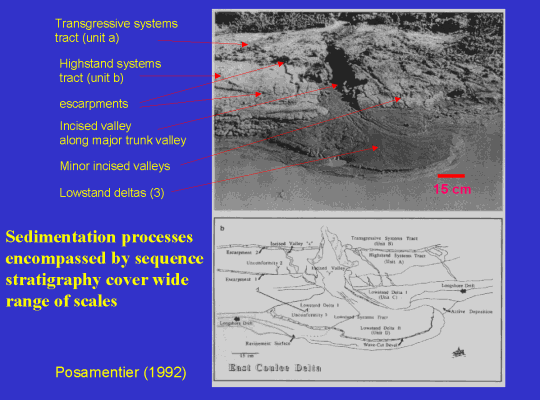

Forced
Regression
31
Transgressive
systems tract
32

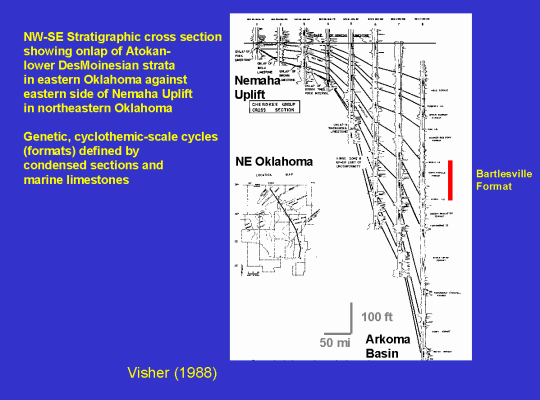

Stratigraphic
cross section
33

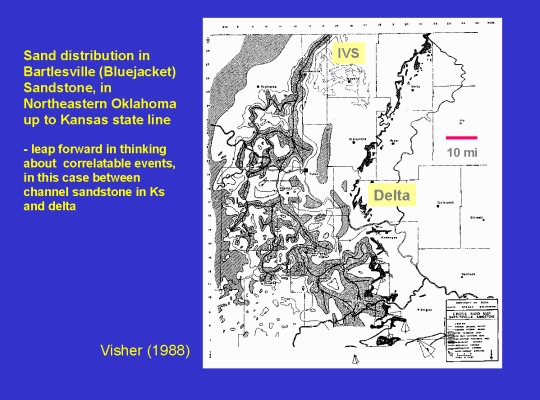

Sand distribution
in Bartlesville Sandstone
34

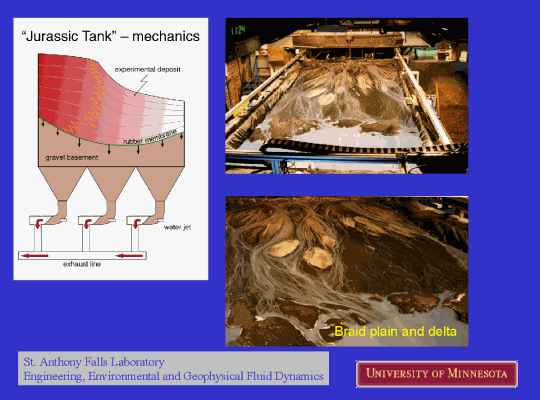

Jurassic
Tank
35

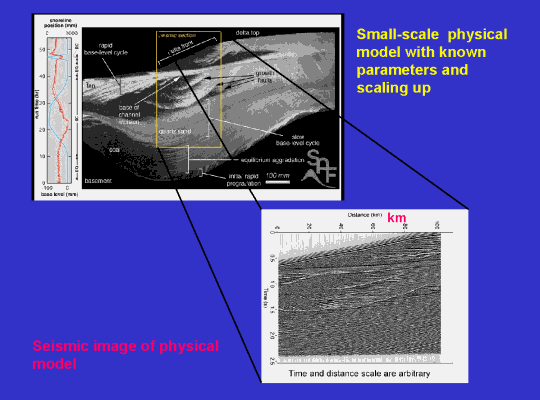

Seismic
image of physical model
36

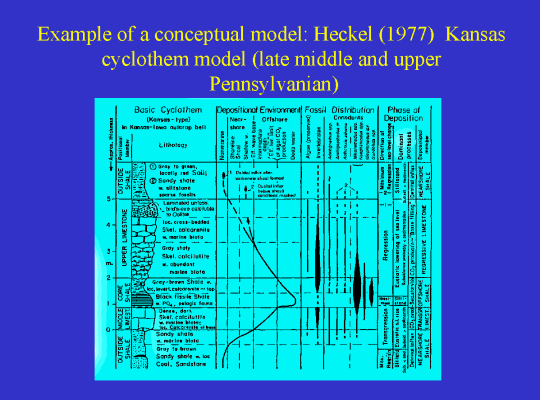

Conceptual

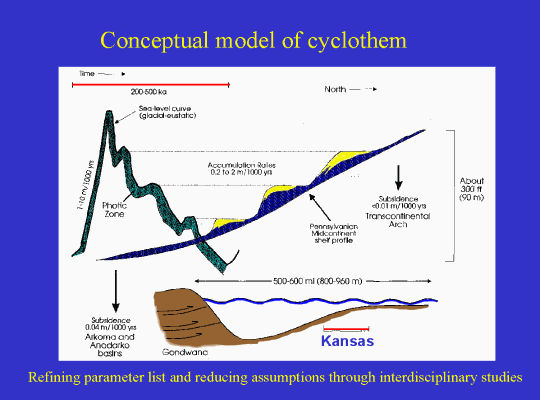

model of cyclothem
37

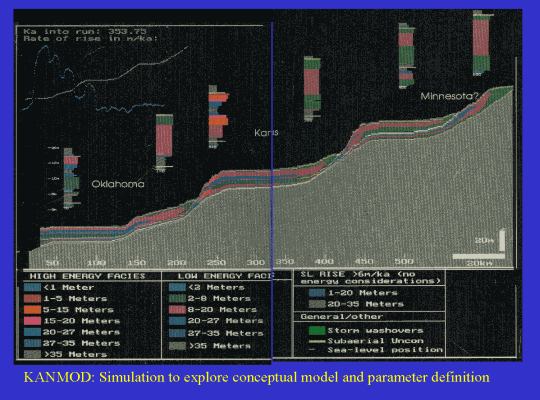

KANMOD
38

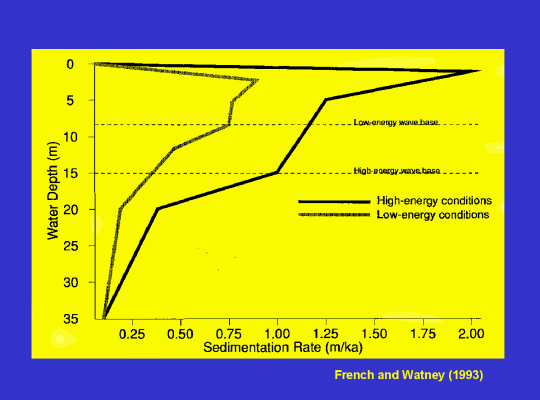

Sedimentation
Rate
39

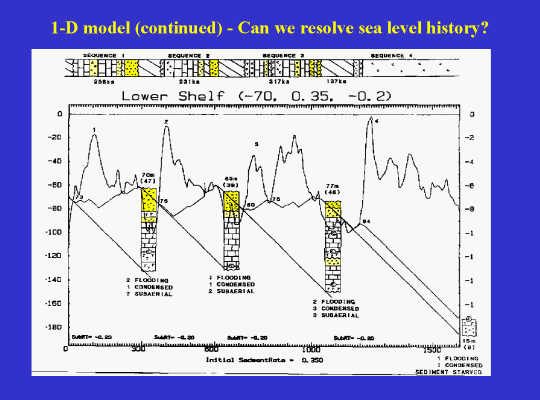

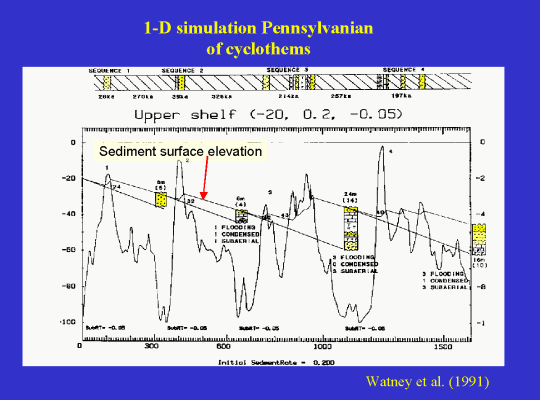

1D simulation
of Pennsylvanian cyclothems
40
1D model
(continued)
41

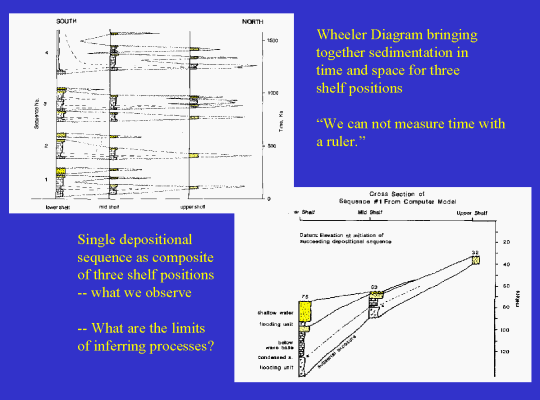

Wheeler
Diagram bringing together sedimentation in time and space for
three shelf positions
42

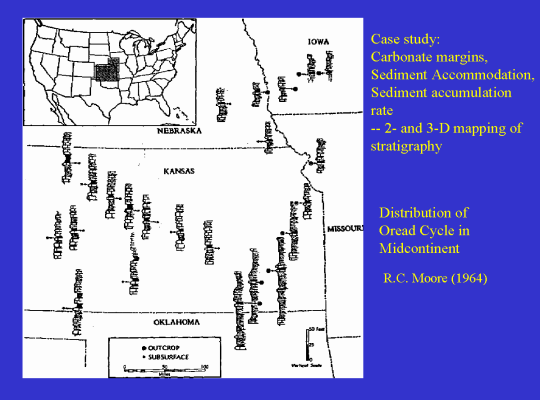

Distribution
of Oread Cycle
43

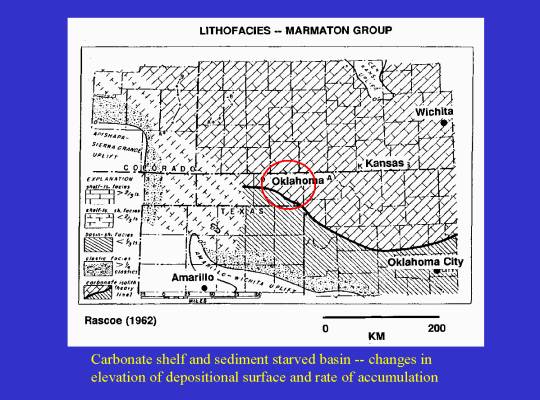

Lithofacies:
Marmaton Group
44

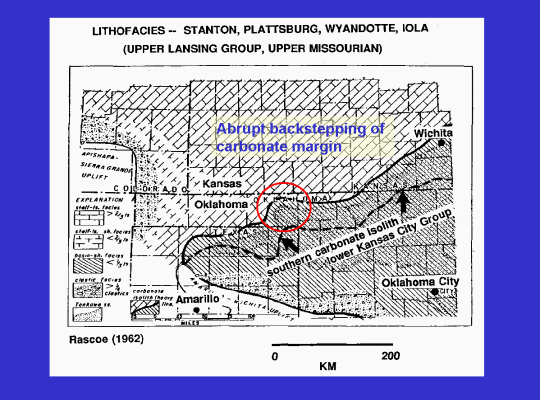

Abrupt
backstepping of carbonate margin

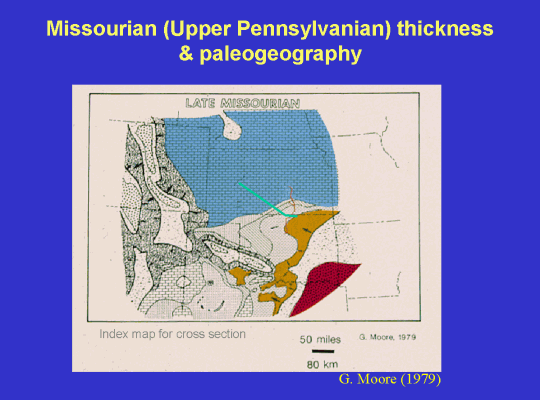

45
Paleogeography
during Missourian
46

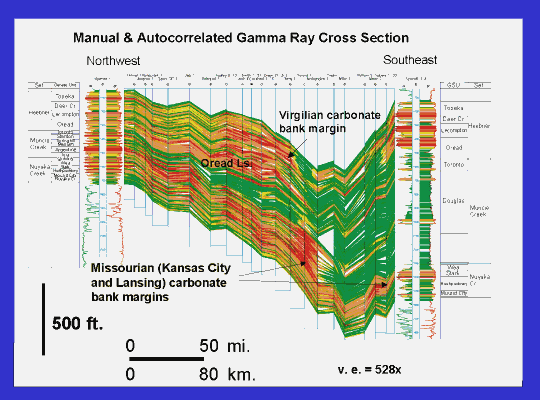

Manual
& Autocorrelated Gamma Ray Cross Section
47

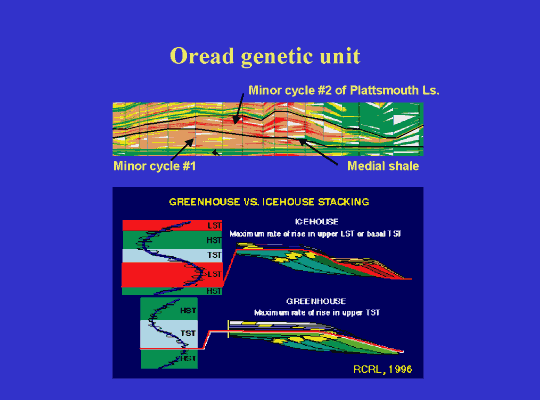

Oread genetic
unit
48

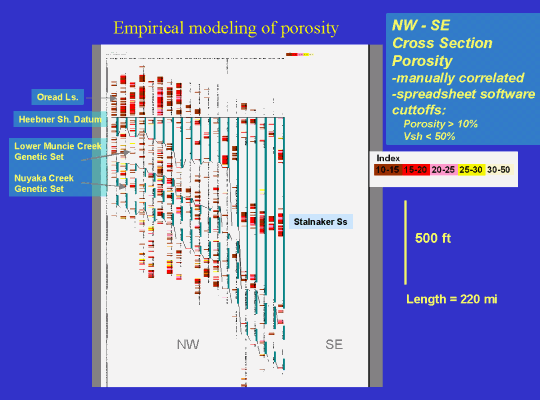

Empirical
modeling of porosity
49

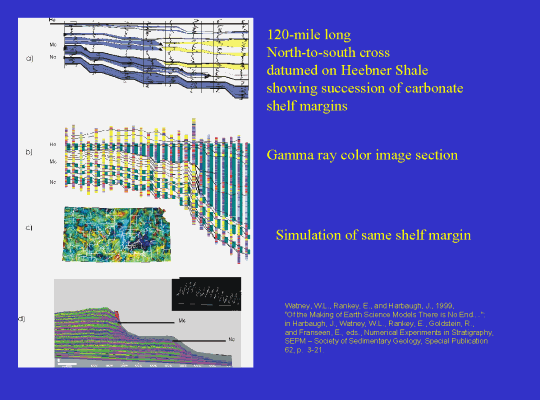

Simulation
of same shelf margin
50

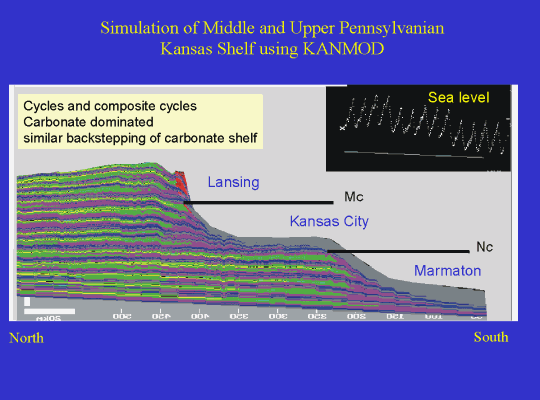

Simulation
using KANMOD
51

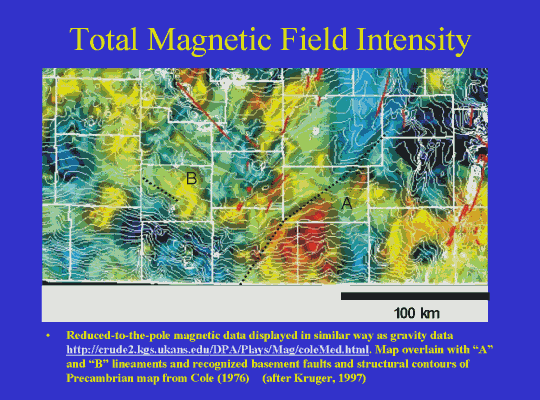

Magnetic
Field Intensity
52

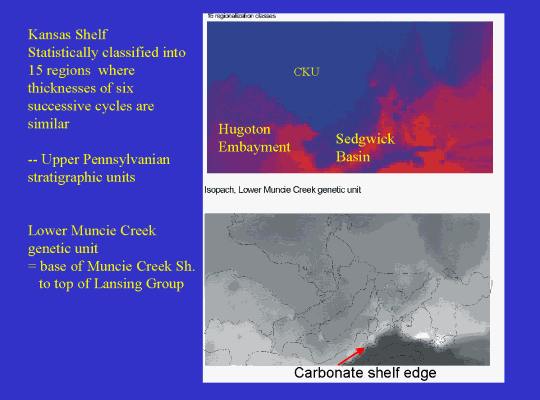

Regionalization
classes

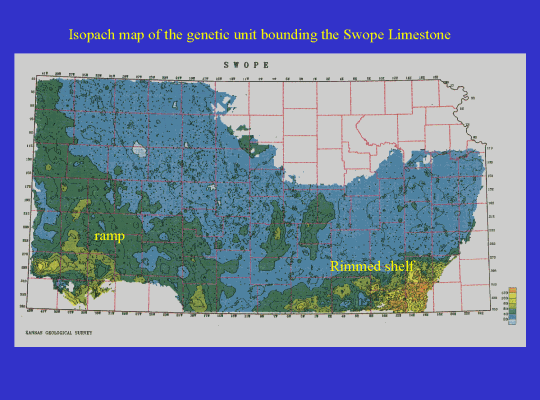

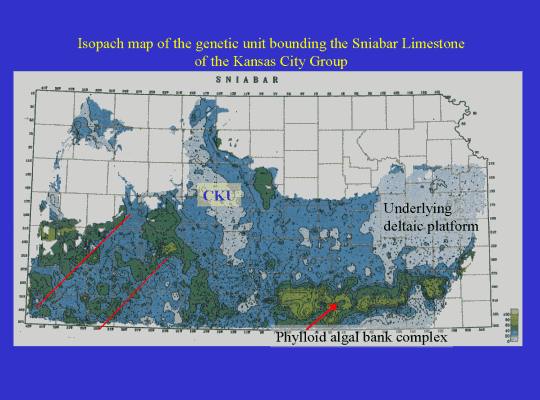

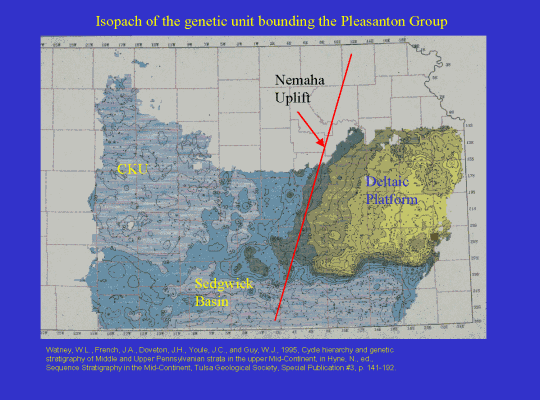

Isopach of genetic unit bounding
53
Pleasanton
Group
54
Sniabar
LS
55
Swope LS
56

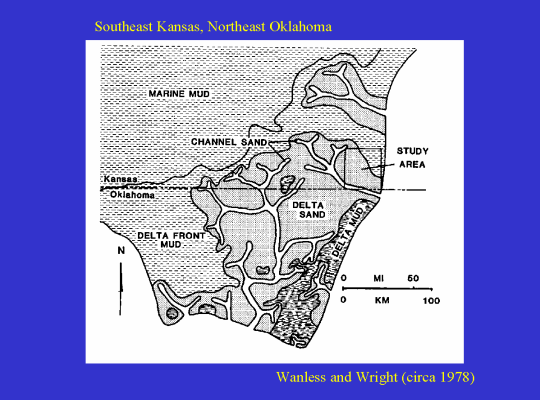

Study Area
57
Distribution

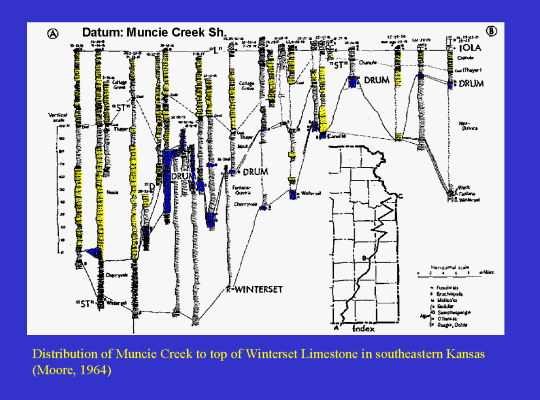

of Muncie Creek to top of Winterset in SE Kansas
58

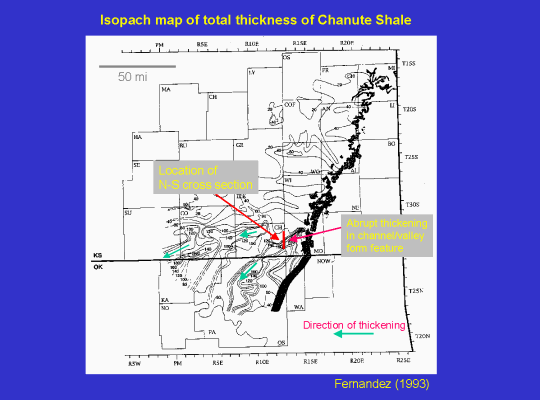

Isopach
of total thickness of Chanute Shale
59

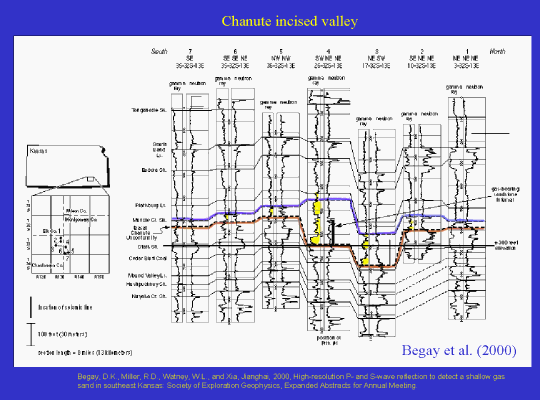

Chanute
incised valley
60

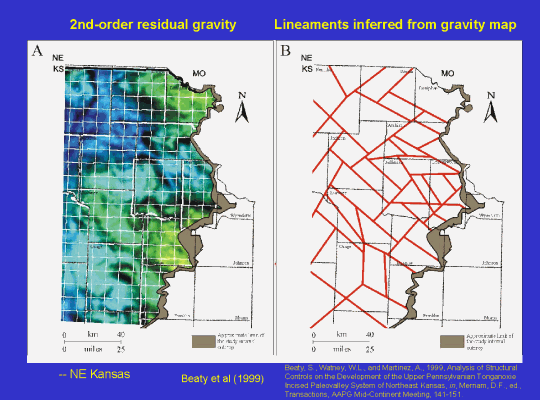

Residual
gravity / Lineaments
61

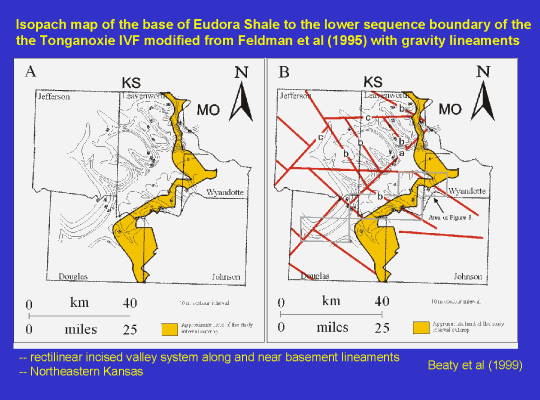

Isopach
base of Eudora Shale
62

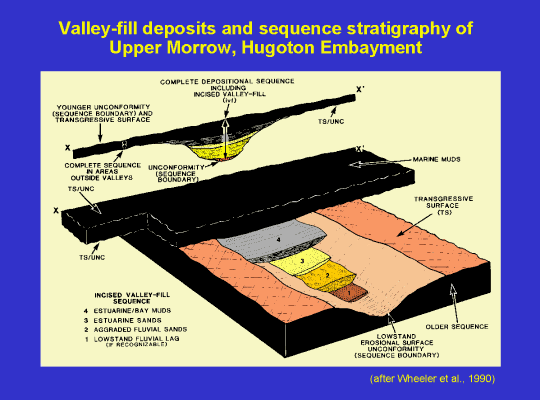

Valleyfill
deposits and sequence stratigraphy of Upper Morrow, Hugoton Embayment
63

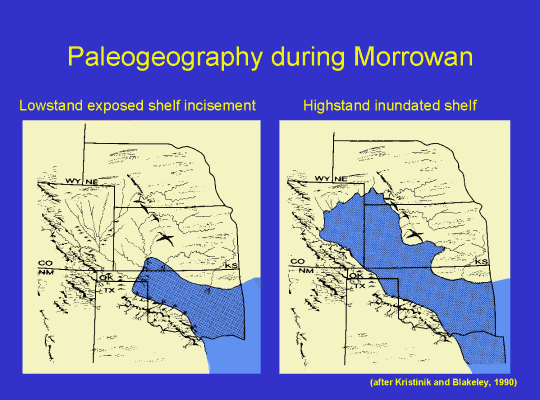

Paleogeography
during Morrowan
64

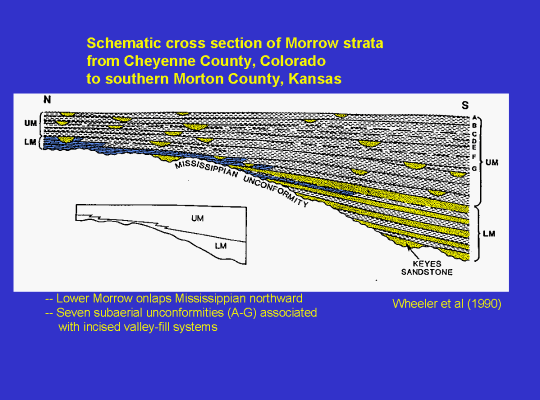

Cross Section
of Morrow strata
65
Correlation
of petrophysical parameters
66

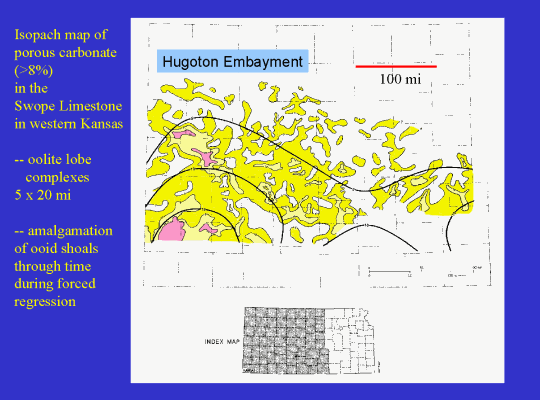

Isopach
of porous carbonate in the Swope LS in West. Kansas
67

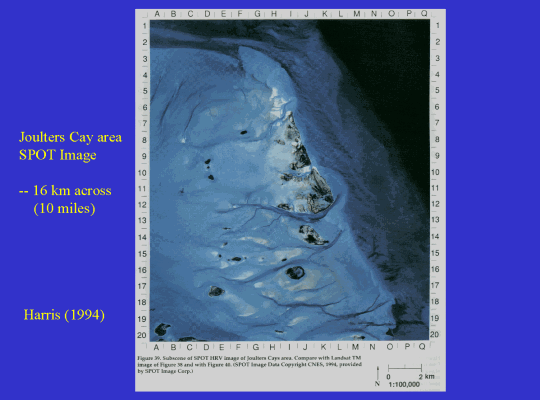

SPOT Image
68

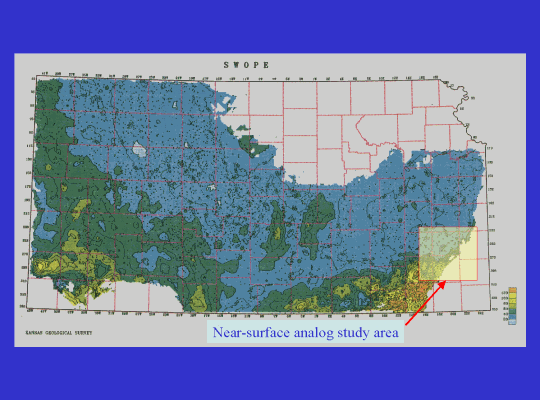

Swope NearSurface
study area
69

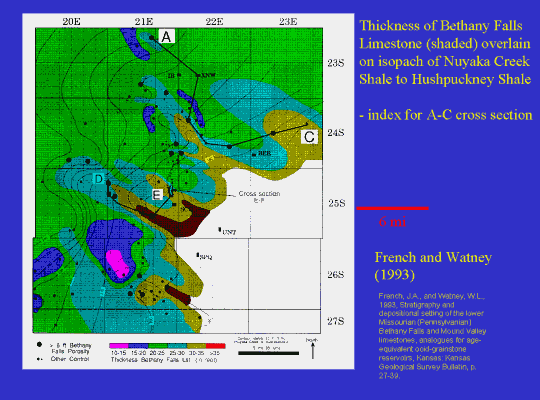

Thickness
of Bethany Falls LS
70

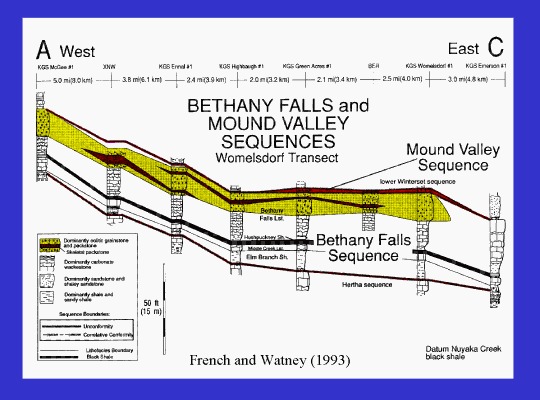

Bethany
Falls and Mound Valley Sequences
71

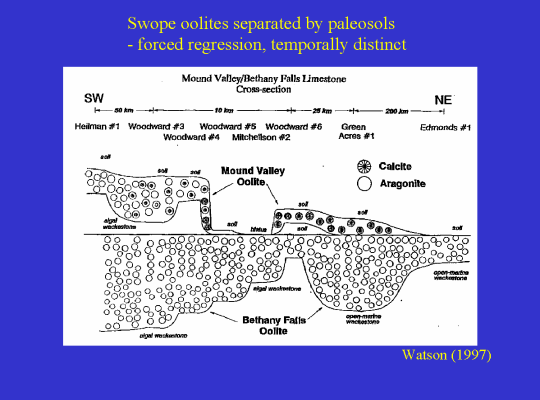

Swope oolites
separted by paleosols
72

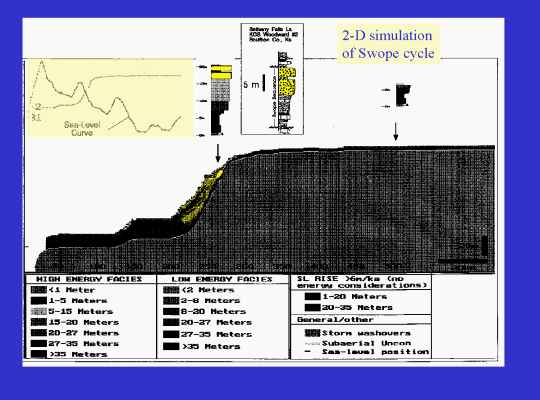

2D simulation
of Swope cycle
73

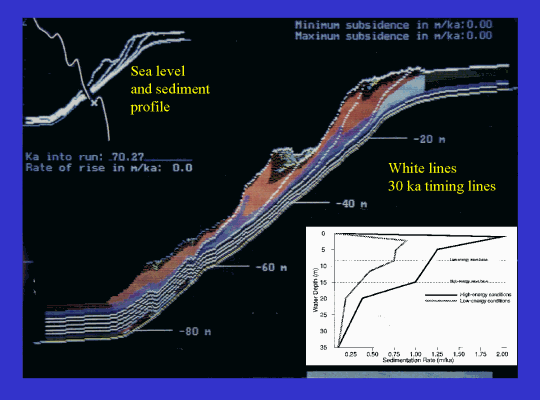

Sea level
and sediment profile
74

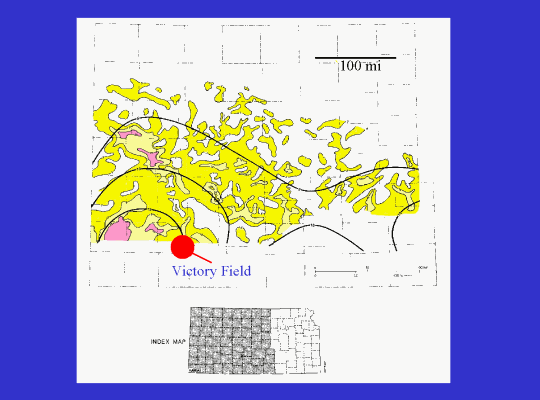

Victory
Field
75

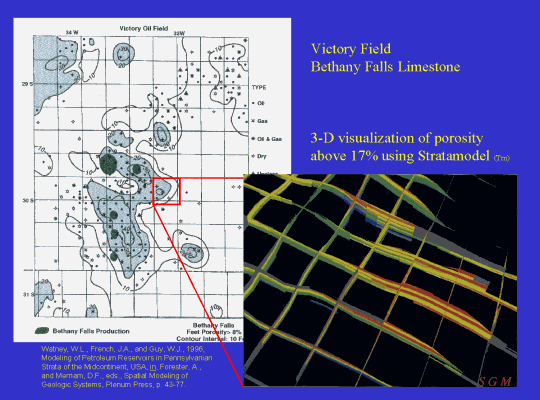

Bethany
Falls LS
76

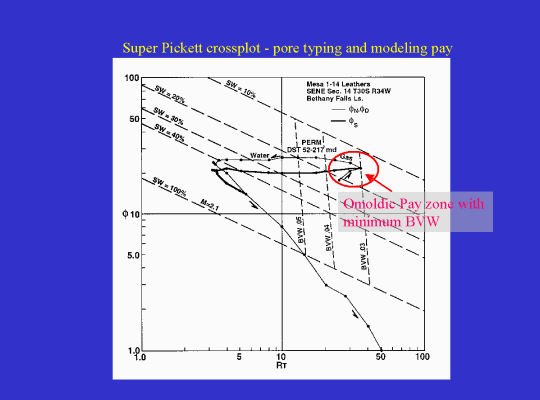

Super Pickett Crossplot
77

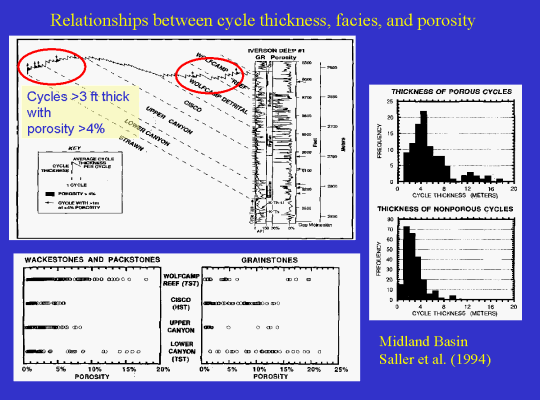

Relationships between
cycle thickness, facies and porosity
78

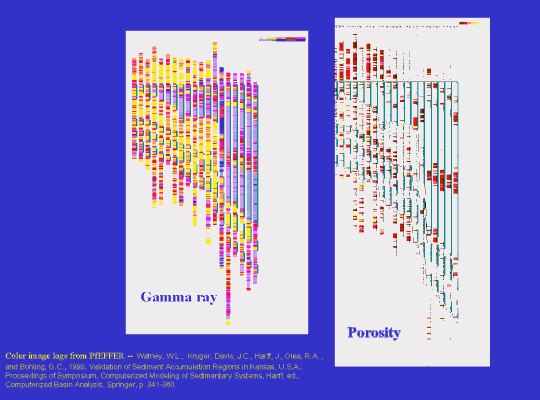

PfeFFER image logs
79

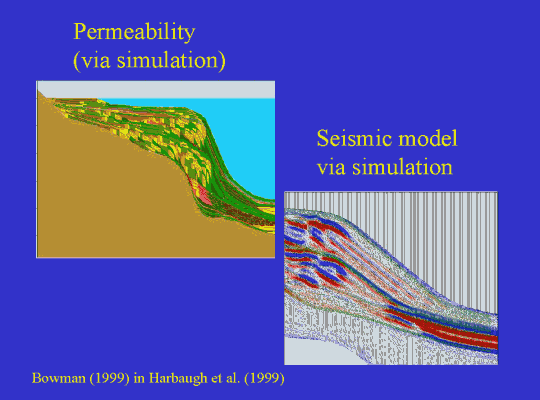

Permeability  Seismic
model
80

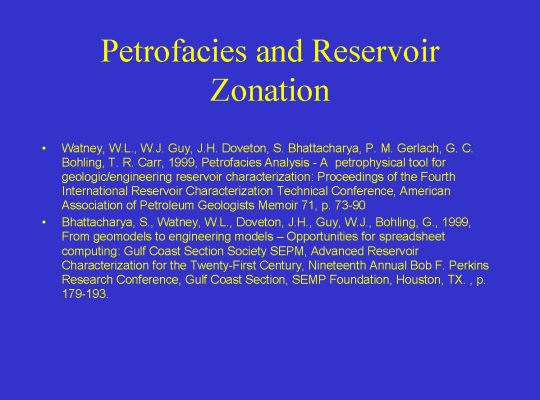

Petrofacies &
Reservoir Zonation

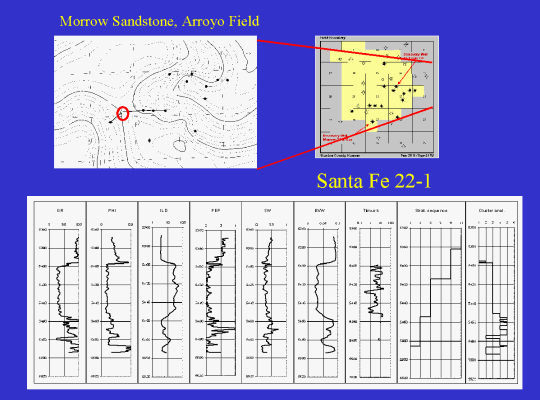

81
Morrow SS, Arroy Field
82

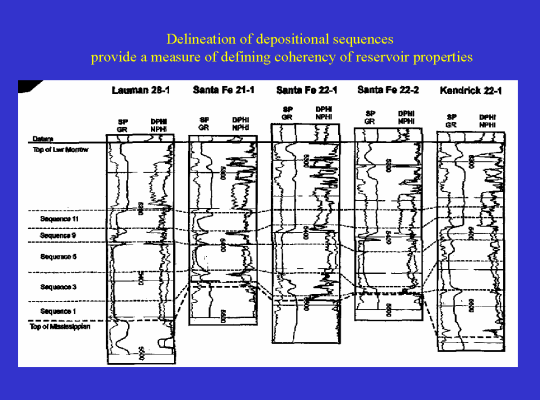

Delineation of deposition
sequences
83

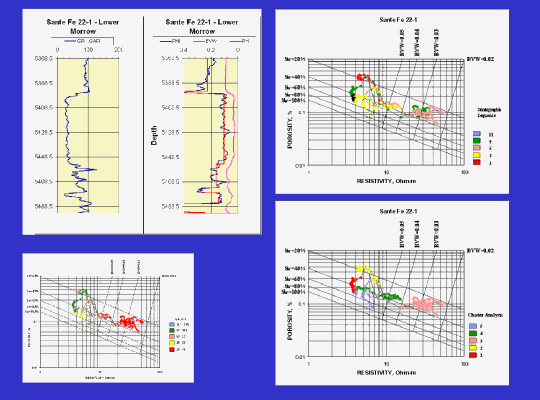

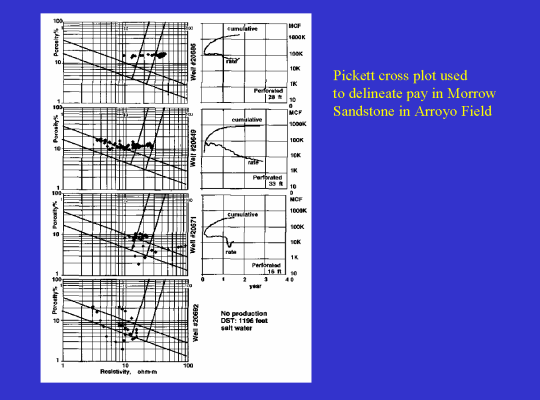

Pickett plots
84
Pickett plots (continued)
85

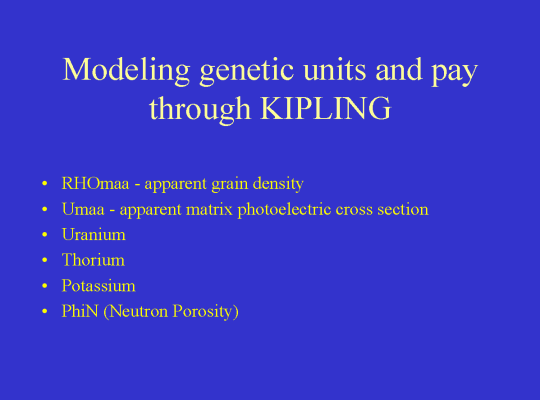

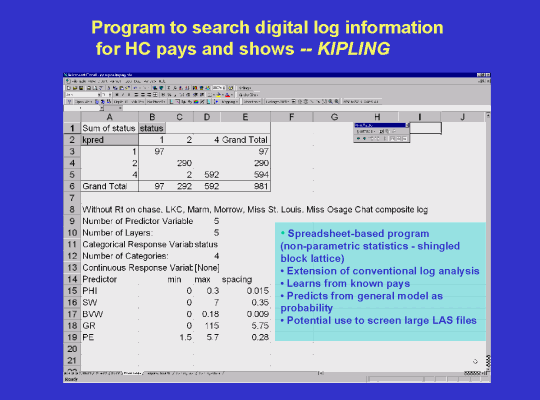

Modeling genetic
units and pay through KIPLING
86

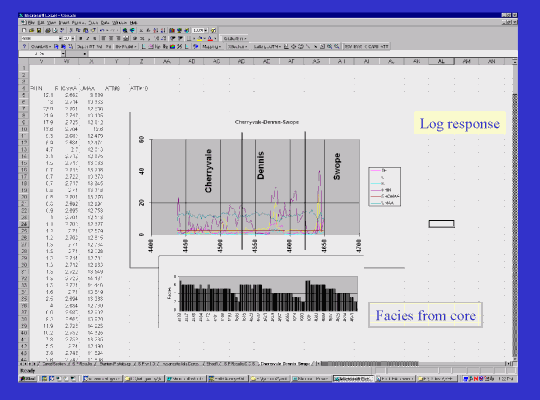

Log response
87

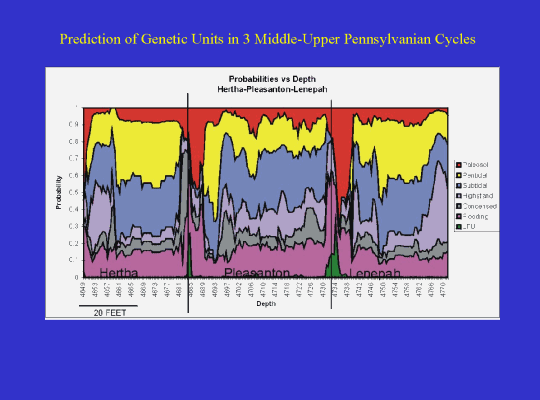

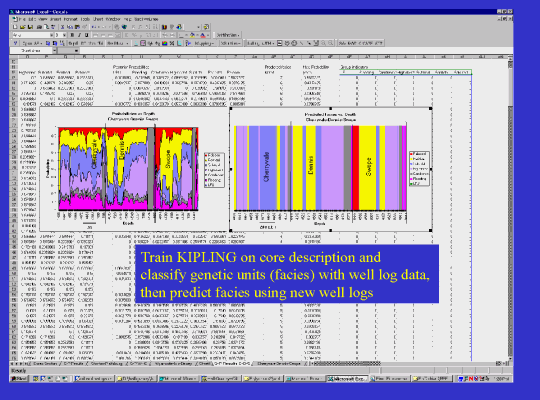

Train KIPLING
88
Prediction of Genetic
Units
89

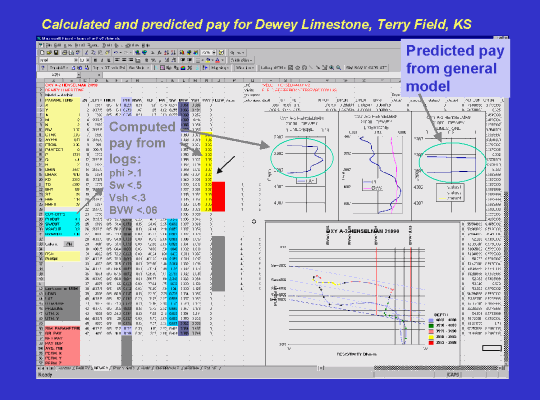

KIPLING

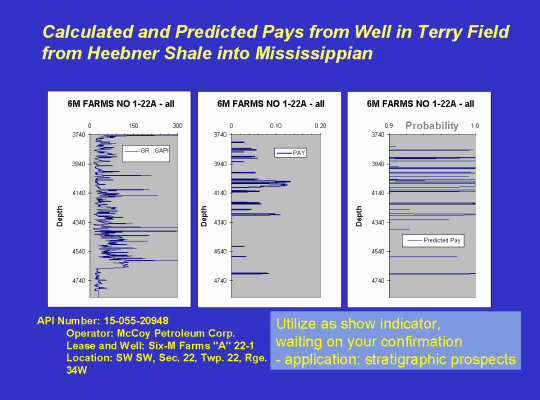

Calculated and Predicted Pays from Well in Terry Field
90
Dewey LS
91
Heebner Shale into
Mississippian
92
Resolving sea level
history

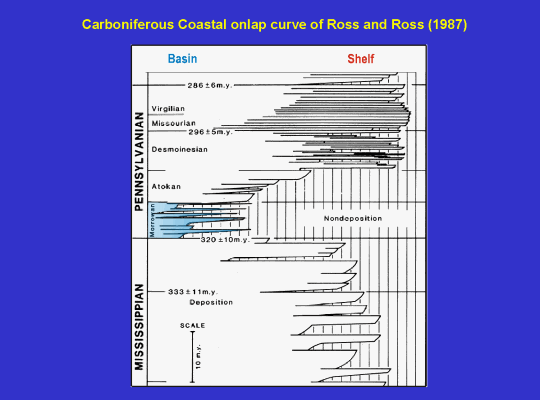

93
Carboniferous Coastal
onlap curve
94

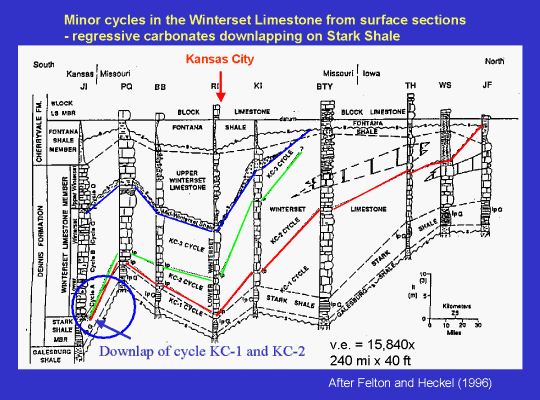

Minor cycles in the
Winterset LS
95

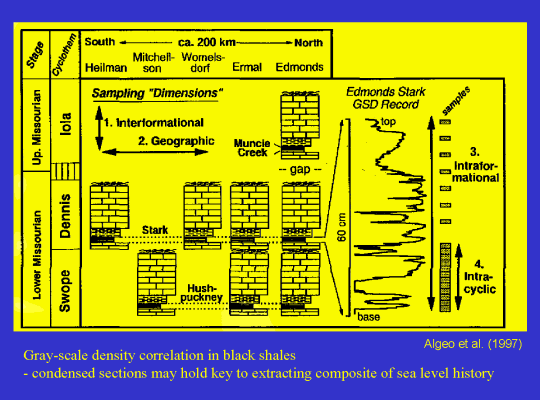

Grayscale density
correlation in black shales

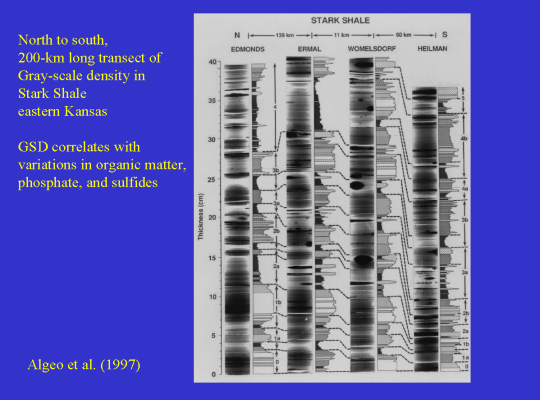

96
Transect of Grayscale
density in Stark sh in eastern Kansas
97
Measuring accumulation

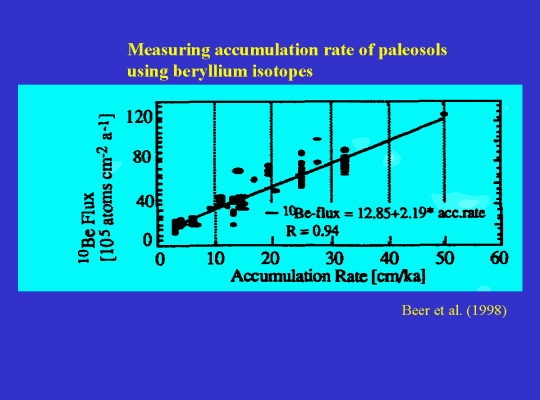

rate of paleosols using beryllium isotopes
98

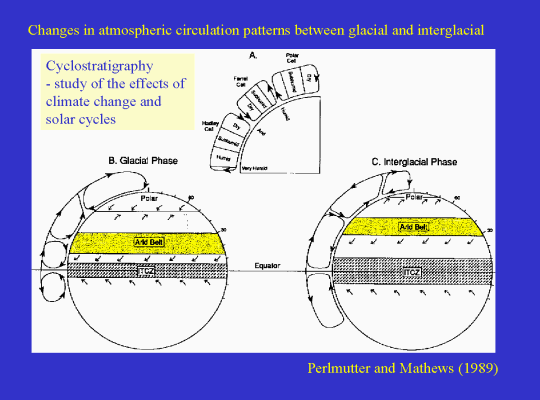

Changes in atmospheric
circulation patterns between glacial and interglacial
99

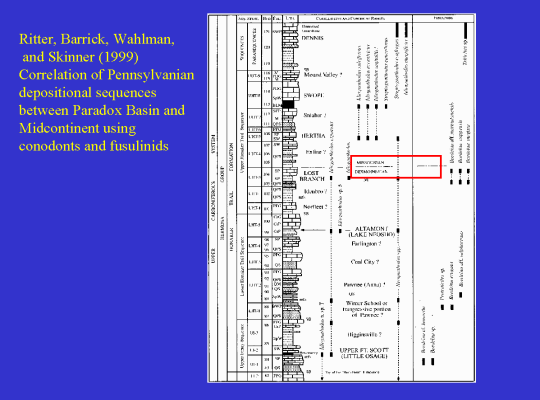

Correlation of Pennsylvanian
depositional sequences using conodonts and fusulinids
100

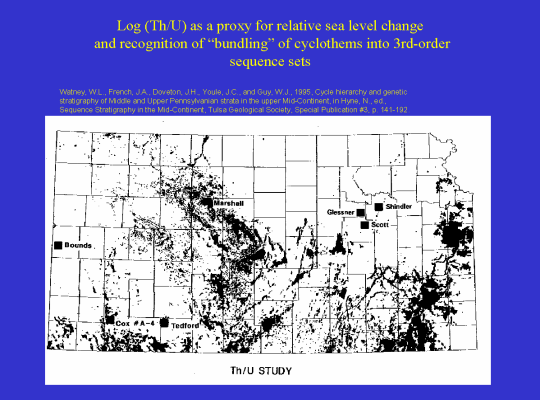

Th/U Study
101

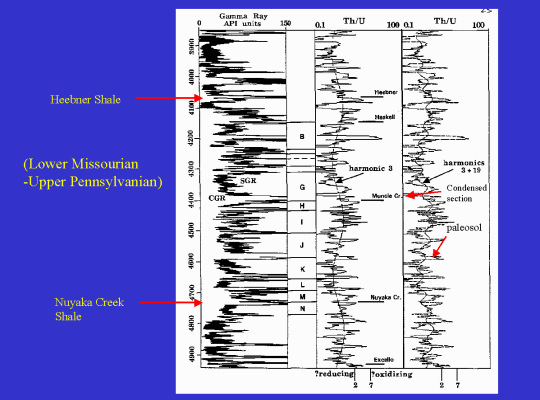

Lower Missourian
102

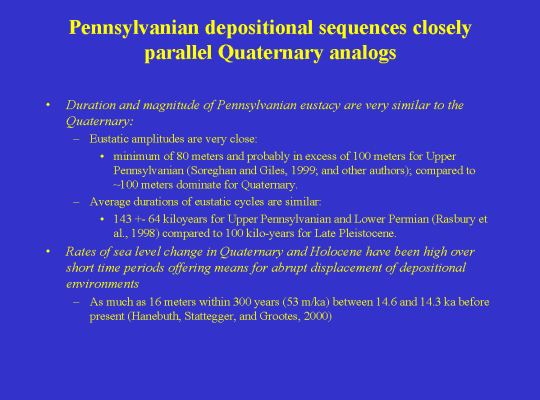

Pennsylvanian depositional
sequences closely parallel Quaternary analogs
103

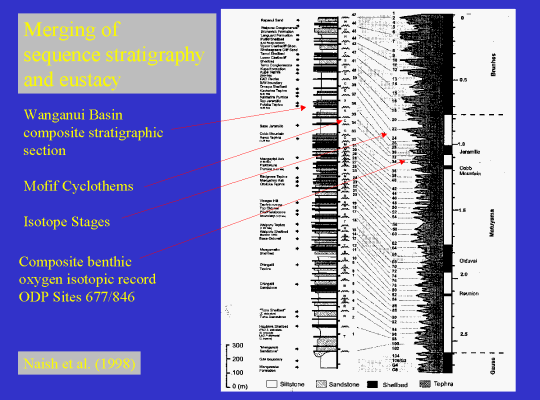

Merging sequence stratigraphy
and eustacy
104

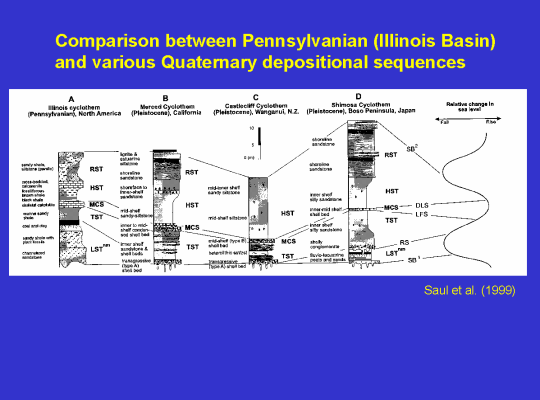

Comparison: Pennsylvanian
and various Quaternary depositional sequences
105

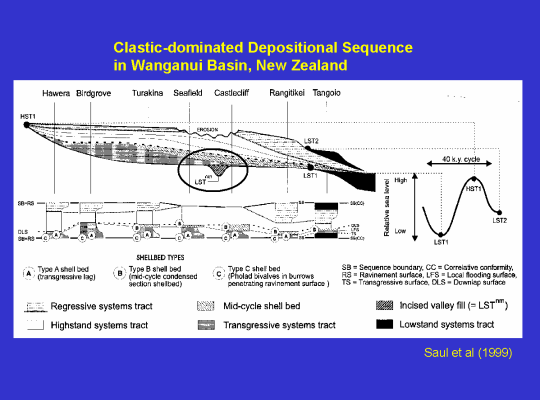

Clasticdominated
Depositional Sequence in Wanganui Basin, New Zealand
106

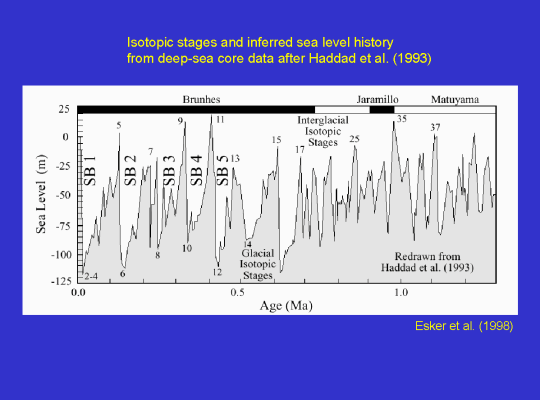

Isotopic stages and
inferred seal level from deepsea core data
107

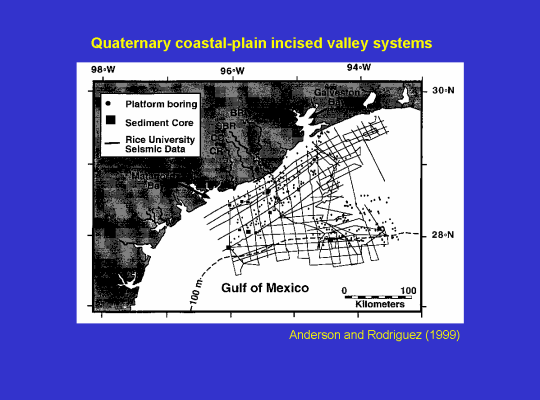

Quatenary coastalplain
Incised valley systems
108

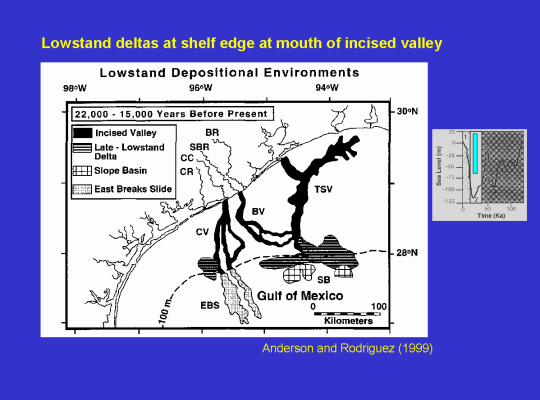

Lowstand deltas
109

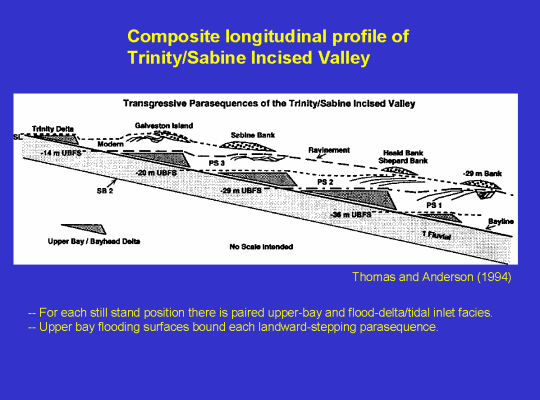

Longitudinal profile
of Trinity/Sabine Incised Valley
110

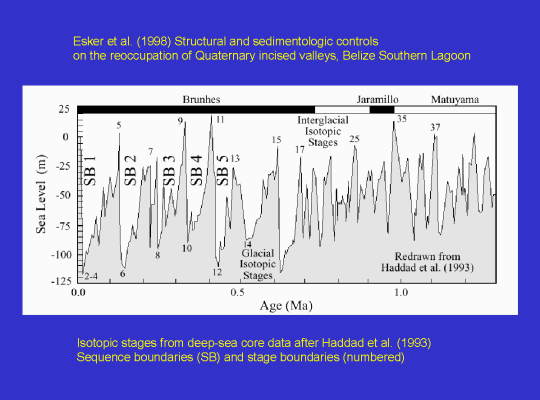

Structural & sedimentological
controls on the reoccupation of Quaternary incised valleys
111

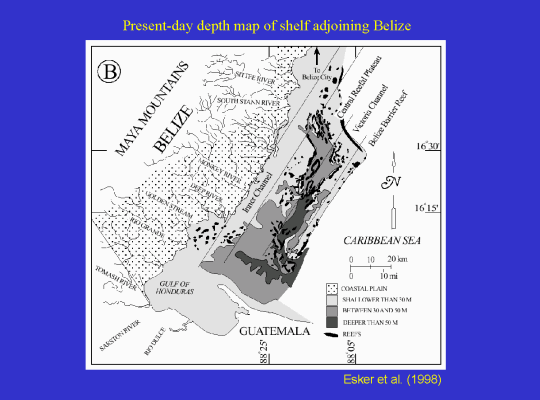

Presentday depth
map of shelf adjoining Belize
112

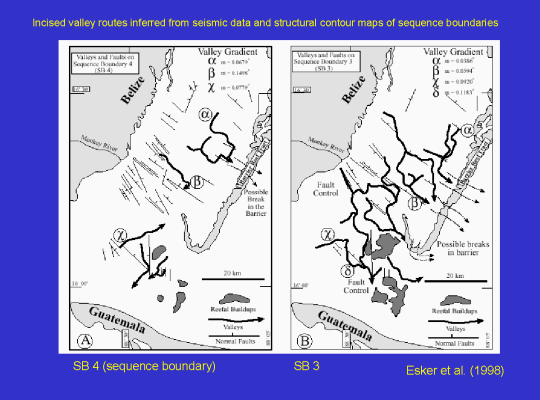

Incised valley routes
inferred from seismic data
113

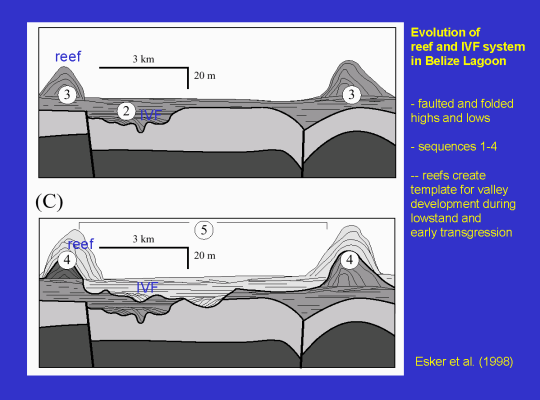

Evolution of reef
and IVF system in Belize Lagoon
114

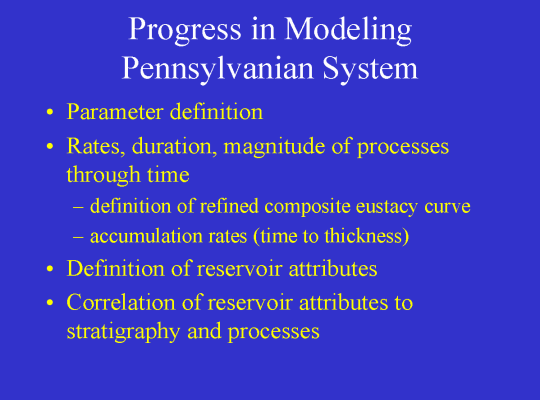

Progress in Modeling
Pennsylvanian System
115
Conclusions
116

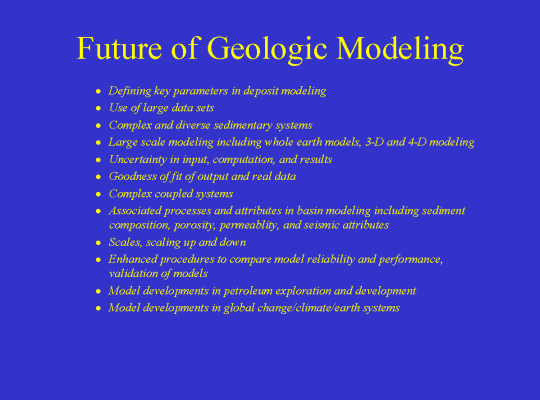

Future of Geologic
Modeling
117

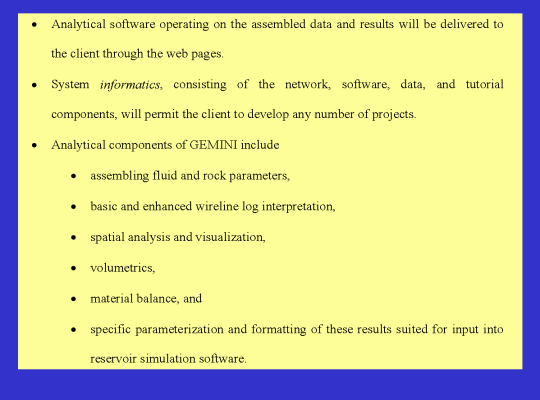

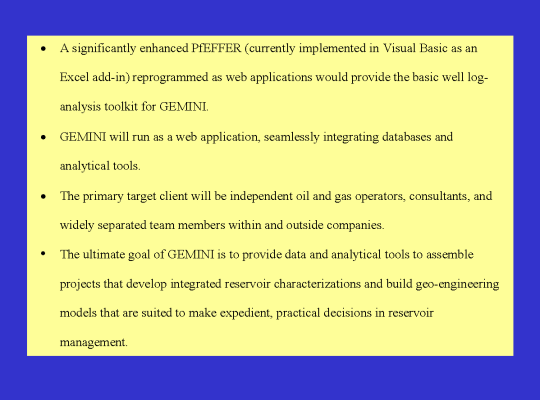

GEMINI
118
Description
119
Description (continued)
120
Description (continued)
121

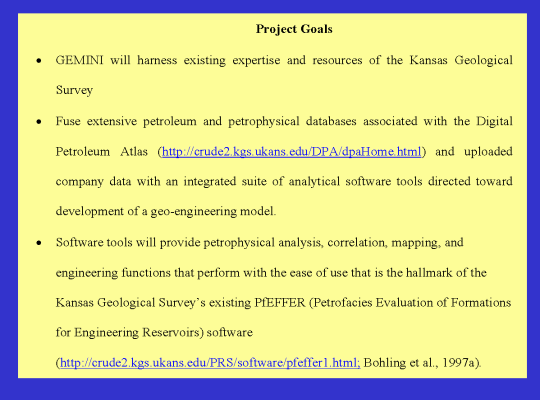

Project
Goals
122
Goals (continued)
123

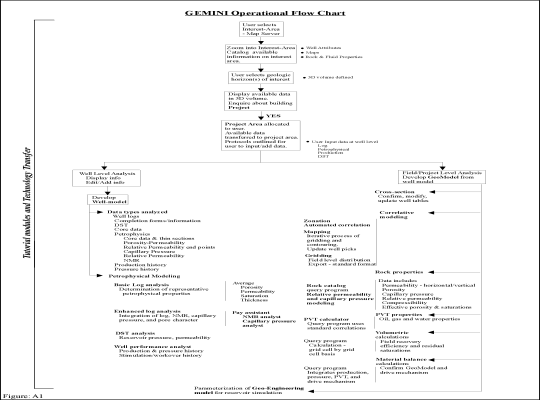

GEMINI
Operational Flow Chart
124

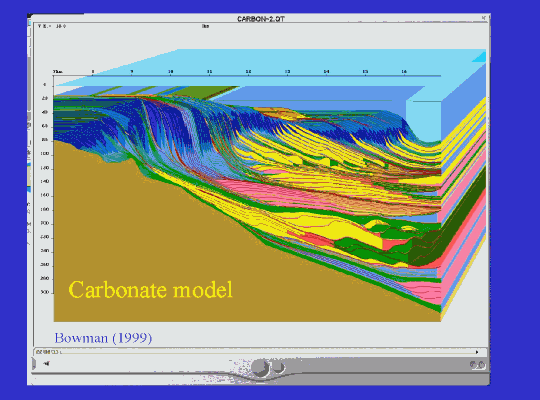

Carbonate
model
125

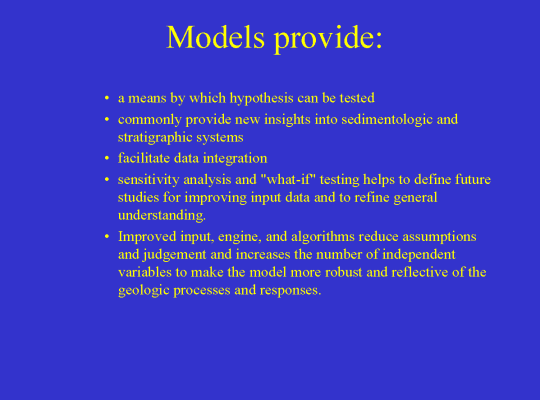

Models
provide:

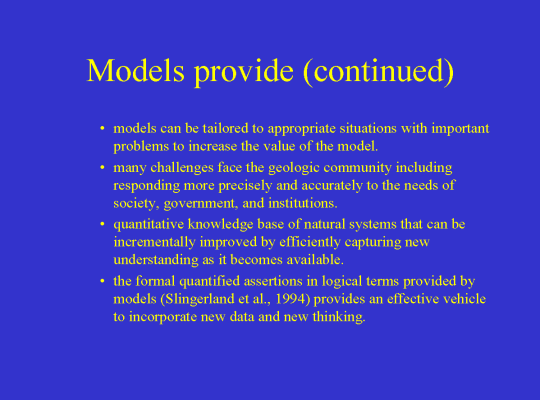

126
Models
provide (continued)
