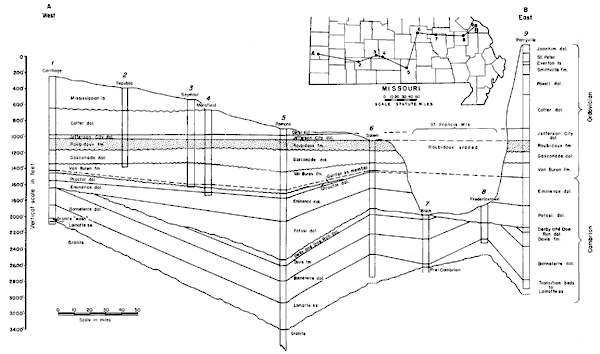

Figure 4--Cross section in southern Missouri from west to east on line A-B (see also fig. 10) showing structural relations of the Roubidoux formation to pre-Roubidoux rocks, The cross section s based on well logs with the Roubidoux formation as the datum plane. Replotted from cross section by McQueen (1931, pl. 12). The cross section shows pre-Potosi deformation, peneplanation, and overlap of formations younger than the Potosi dolomite, Similar relations are shown at the base of the Van Buren formation. A larger version of this figure is available as an Acrobat PDF file (128 KB).
