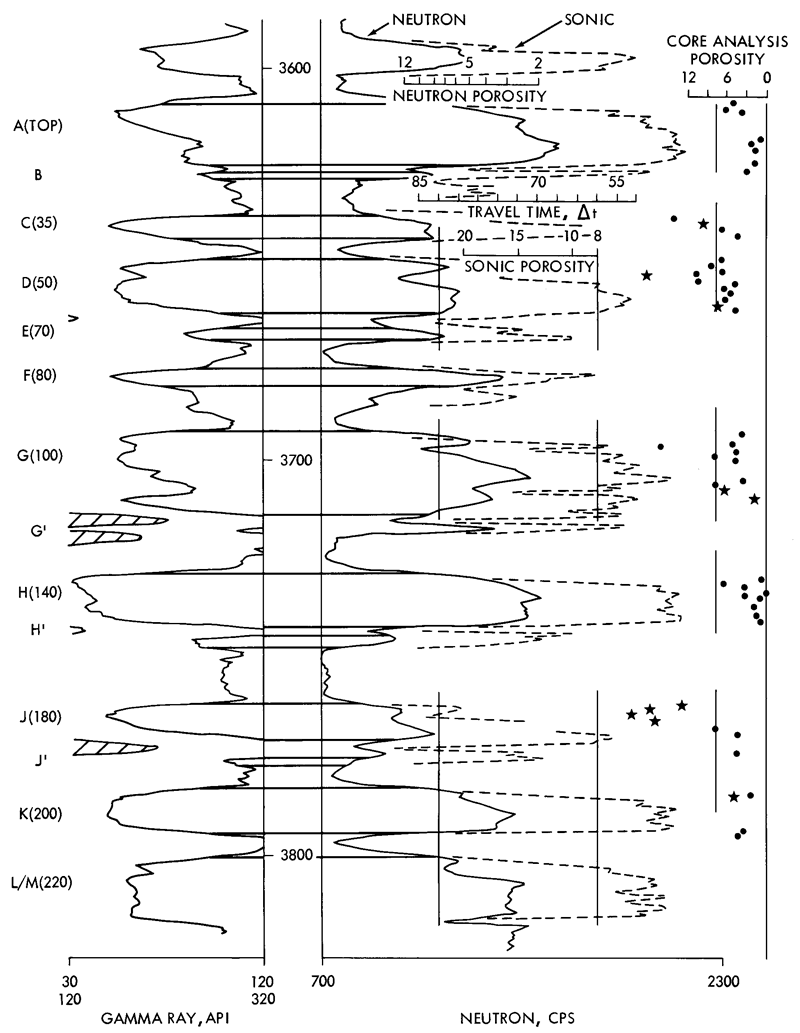

Figure 6--Well log of the Conoco Adell L-KC Unit 406 from section 2-T6S-R27W. Letter system of correlation of carbonate zones is similar to that of Morgan (1952). Numbers indicate correlation system based on depth below top of Lansing. Vertical line segments along neutron, sonic, and core analysis porosity curves define eight percent porosity. In core analysis porosity data shown along right margin, data points indicated by stars have permeability greater than 0.4 md. Depths shown on logs are in feet.
