Kansas Geological Survey, Bulletin 170, Part 2, originally published in 1964
Back to article...

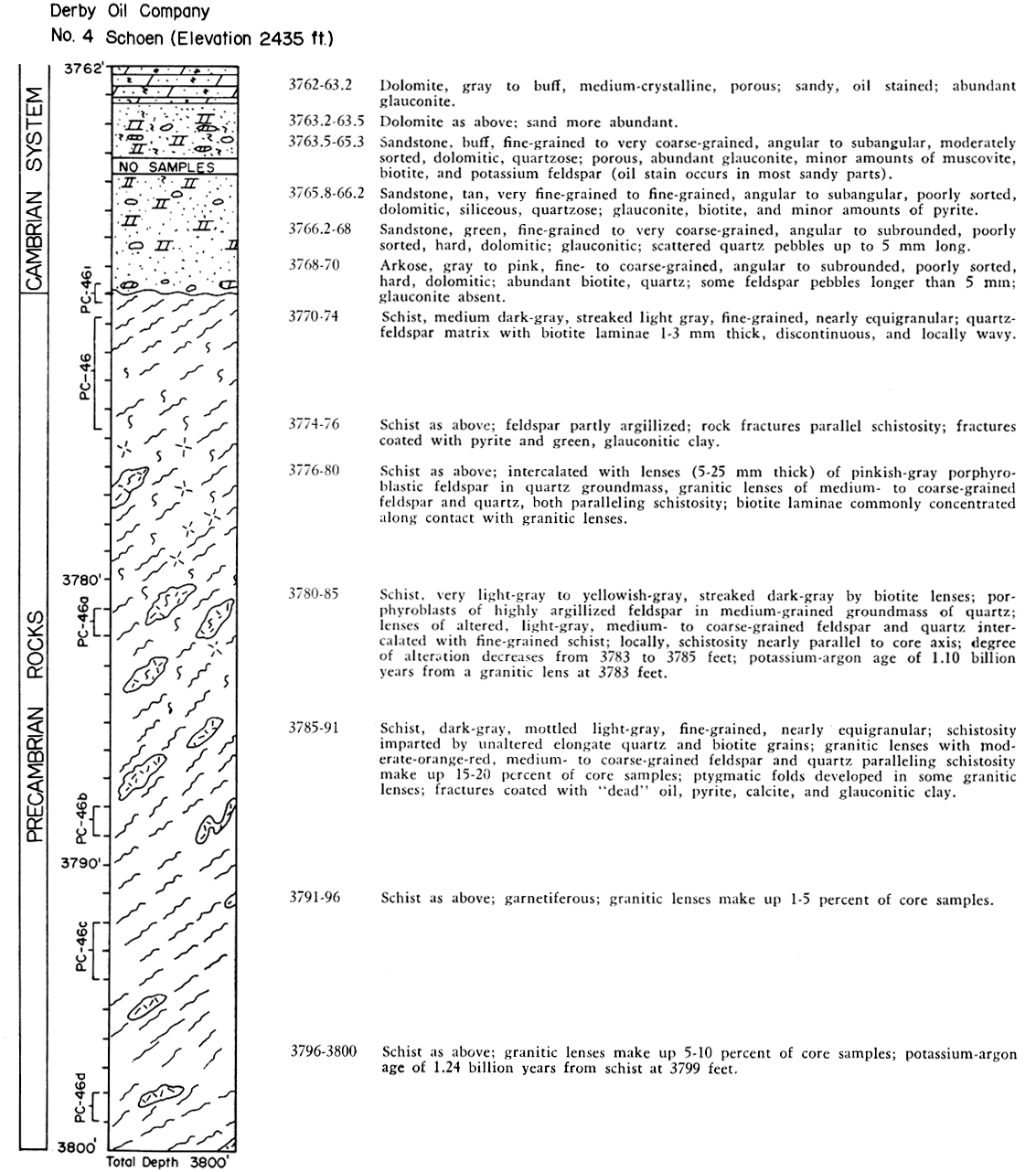

Figure 4--Basal Arbuckle Group (3762-3763 feet), basal Paleozoic sandstone (3763-3770 feet), and Precambrian schist (3770-3800 feet) from Derby No. 4 Schoen well, C SE sec. 35, T. 3 S., R. 24 W., Norton County, Kansas. (Thin section numbers are indicated along left margin of lithologic column.)

Core description with thin section labels.

Decription of symbols used on core description.

Back to article...

Kansas Geological Survey, Geology
Placed on web Jan. 4, 2008; originally published July 1964.
