Figure 12

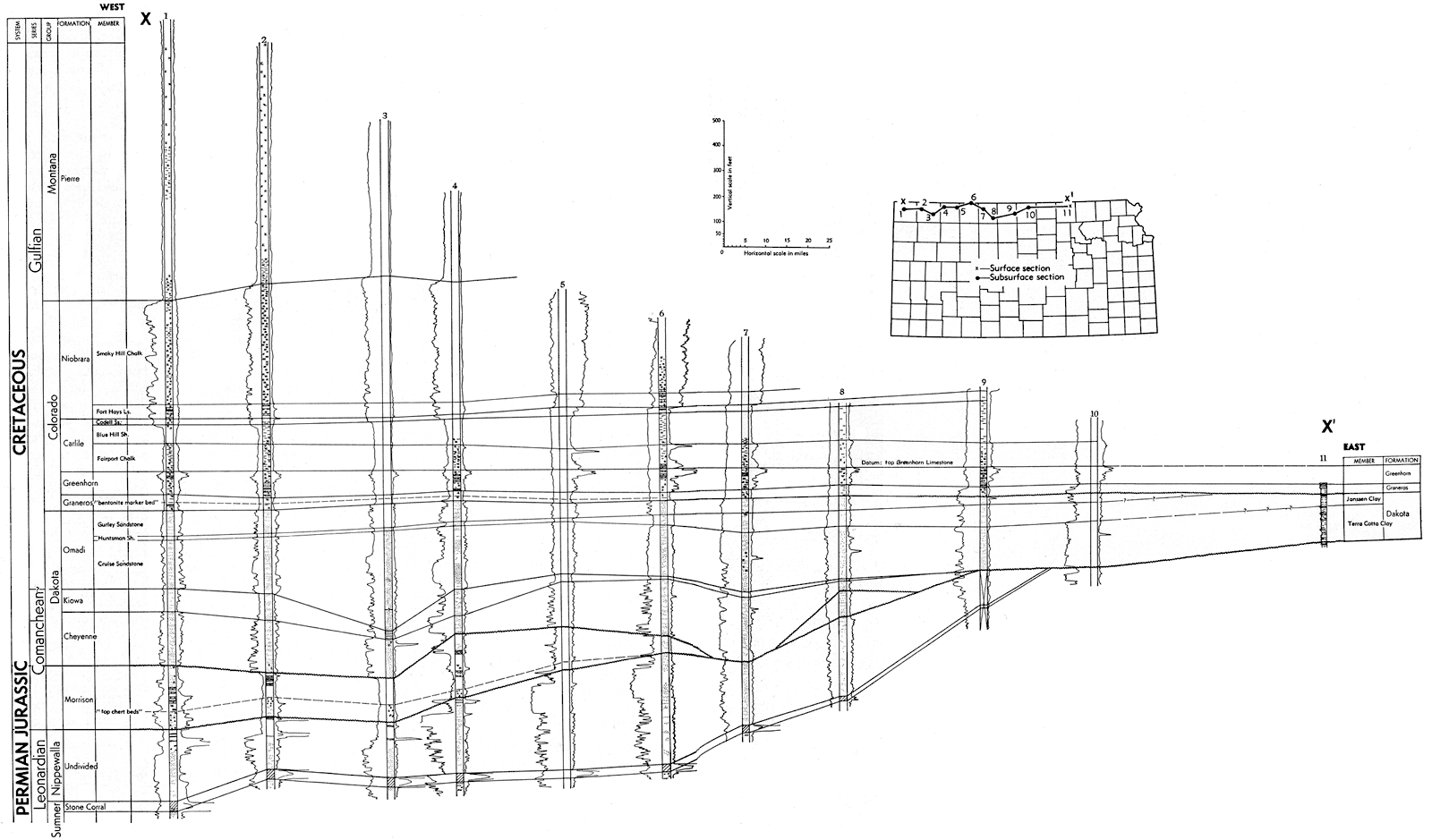

Figure 12--Cross section from Cheyenne County to Washington County showing correlation and stratigraphic relation of Mesozoic rocks (from Merriam, 1957b).

Cheyenne thickens in Phillips; Omadi thickens in Decatur; whole section thins in Jewell; outcrops in Washington.
