Figure 3

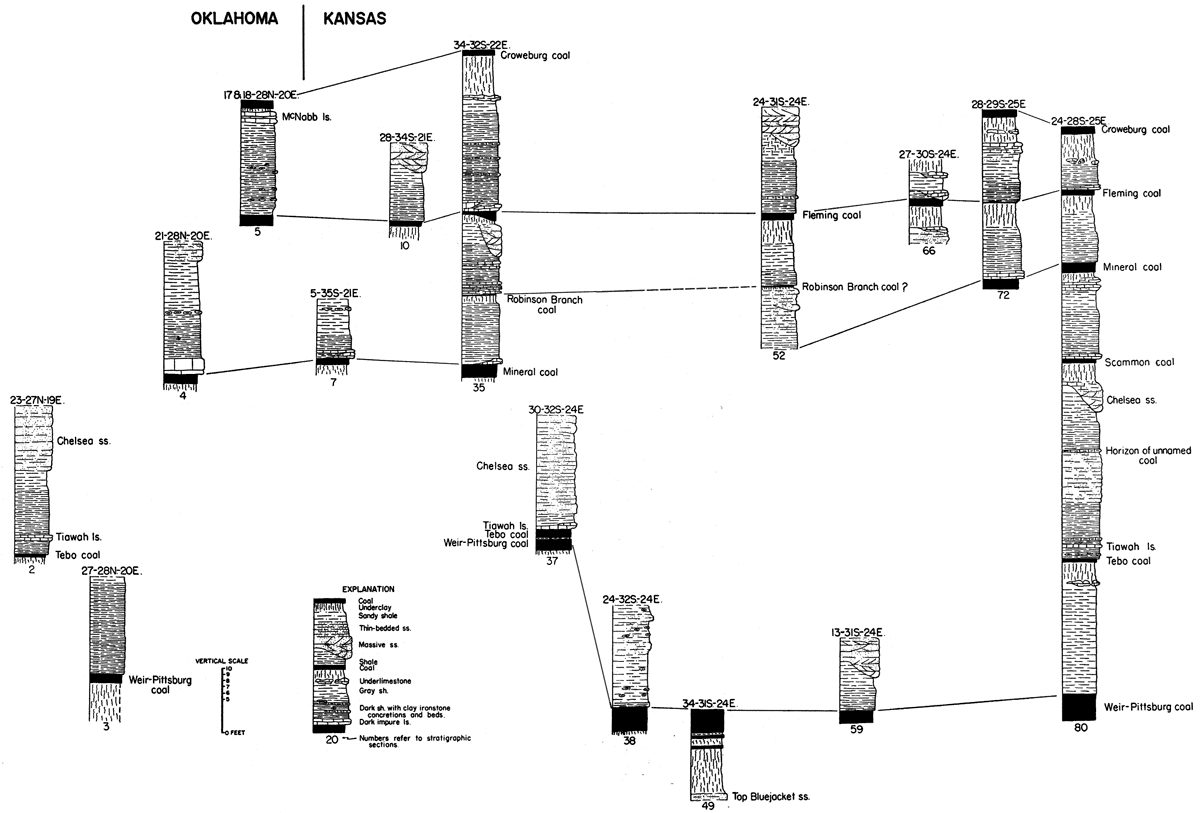

Figure 3--Detailed sections of Lower Cabaniss beds in northern Oklahoma and southeastern Kansas.
Kansas Geological Survey, Geology
Placed on web May 25, 2009; originally published October 1956.
