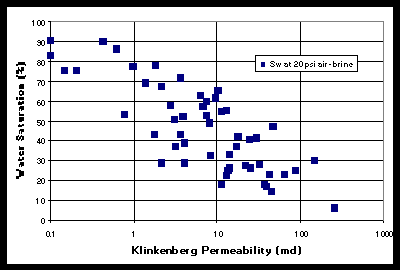

FIGURE 2.5. Cross-plot of
water saturation at 20 psi air-brine capillary pressure, corresponding
to ~50ft of oil column, to in situ Klinkenberg permeability.
