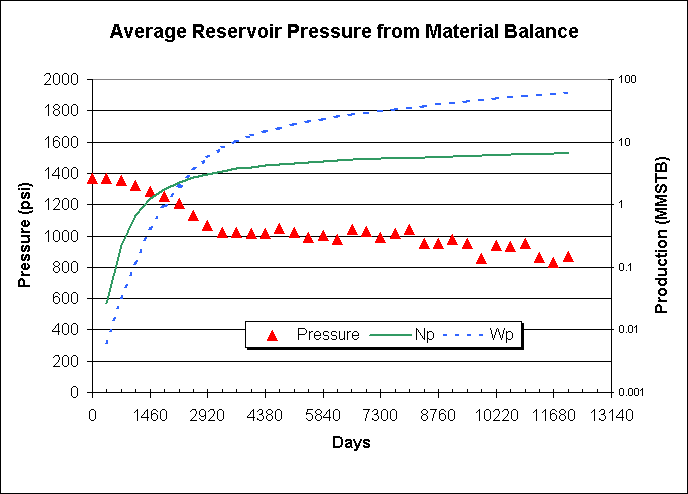

Figure 2.20. "Best case" scenario for Schaben Field generated over a period of 34 years. Due to the rapid development of the field during the first 9 years, the average reservoir pressure profile shows a rapid decline from 1370 psi to 1000 psi. Subsequent reservoir pressure stabilized near 1000 psi for the next 14 years and then gradually declined to 880 psi over the next 11 years.
