Kansas Geological Survey, Open File Report 98-48
GEMS Site Borehole GPR, continued

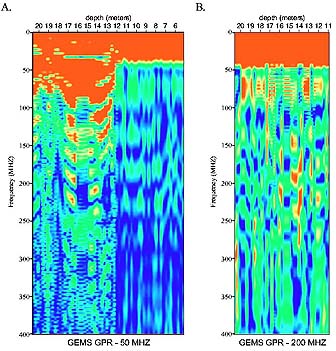

Figure 7

Frequency spectra of Survey 2 GPR zero-offset profiles using (a) 50 MHz, and (b) 200 MHz borehole GPR antennas. The vertical axis is frequency in megahertz, and the horizontal axis is depth from the well-top. The antennas were 9.66 m apart. A large version of this figure is available and is 98k in size.
