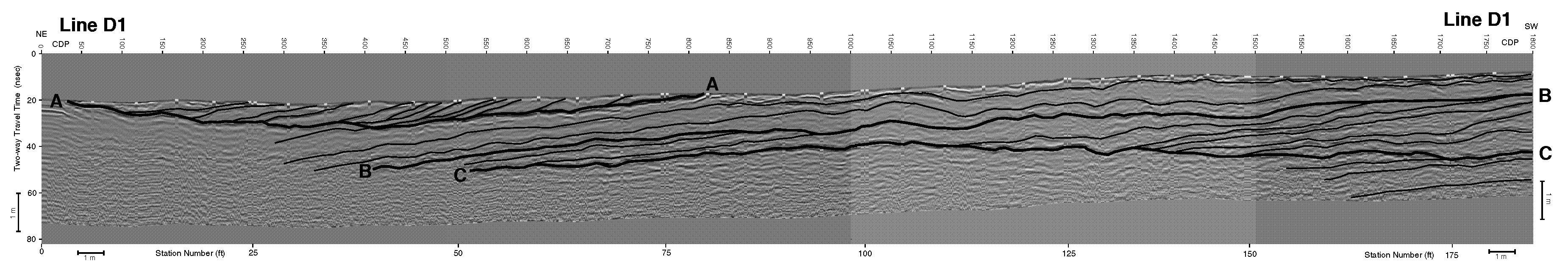

Figure 5b--Interpreted version of line D1. Major
reflections which are correlated with the major horizons or
bounding surfaces on the photomosaic are indicated by thicker
lines and labels. Other prominent reflections are indicated by
thinner lines and do not necessarily correlate with the bed
boundaries interpreted on the photomosaic.
