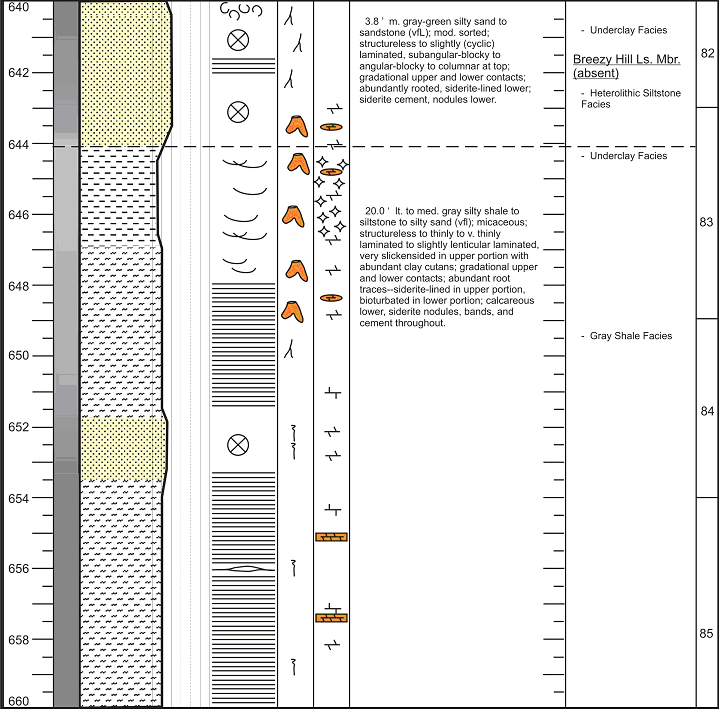

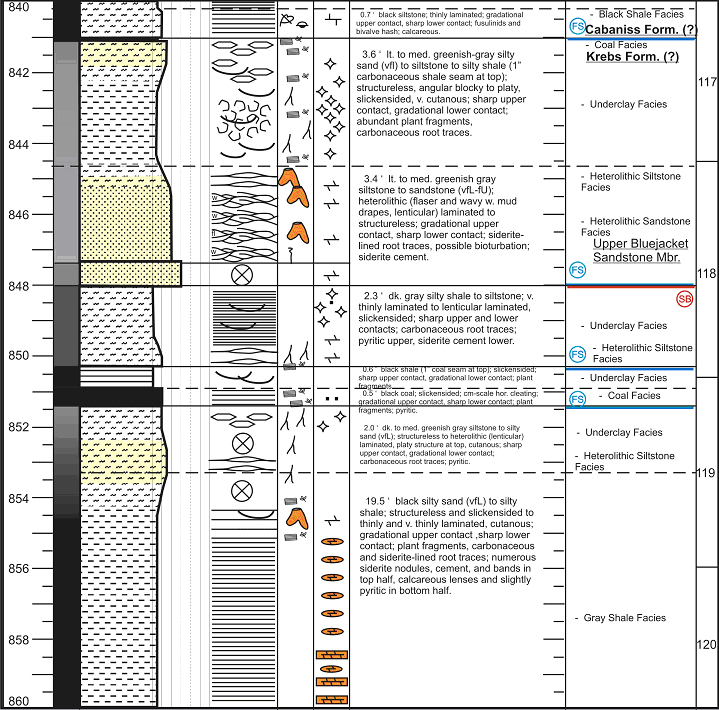

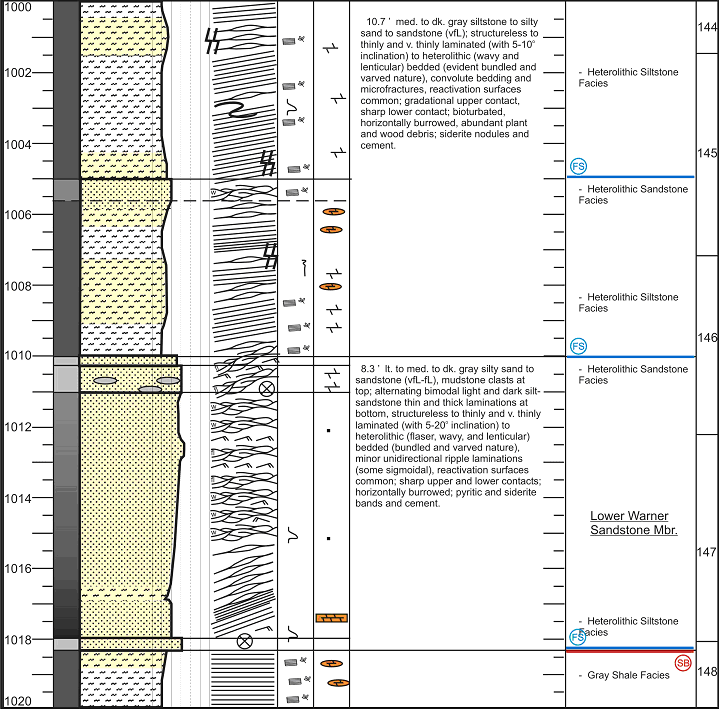

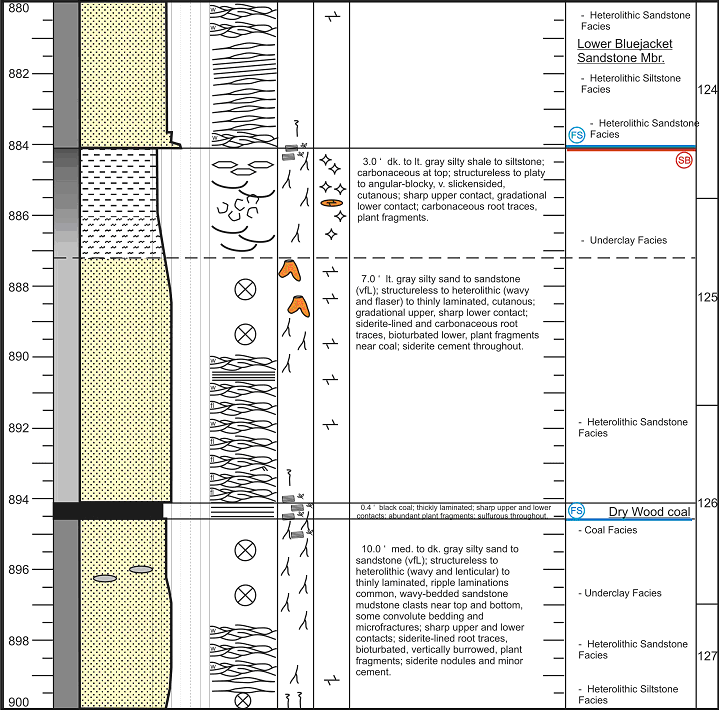

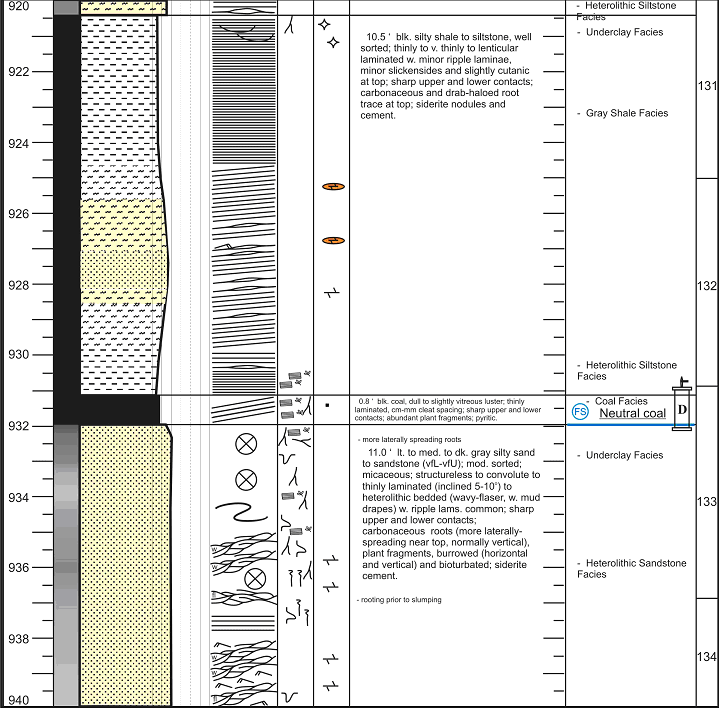

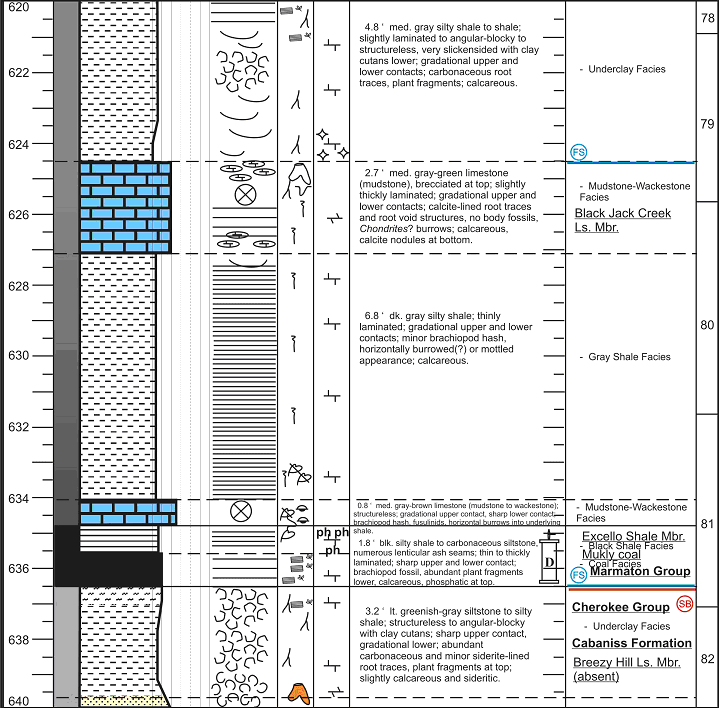

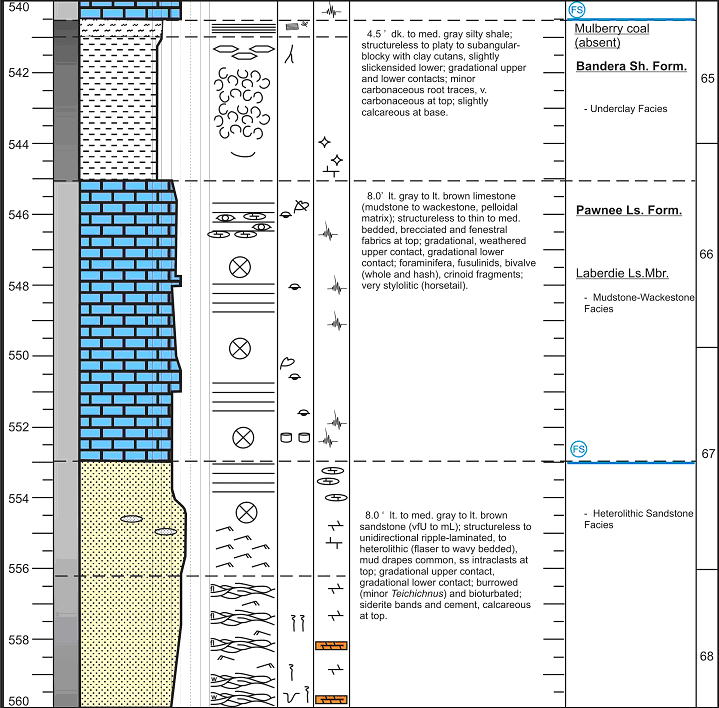

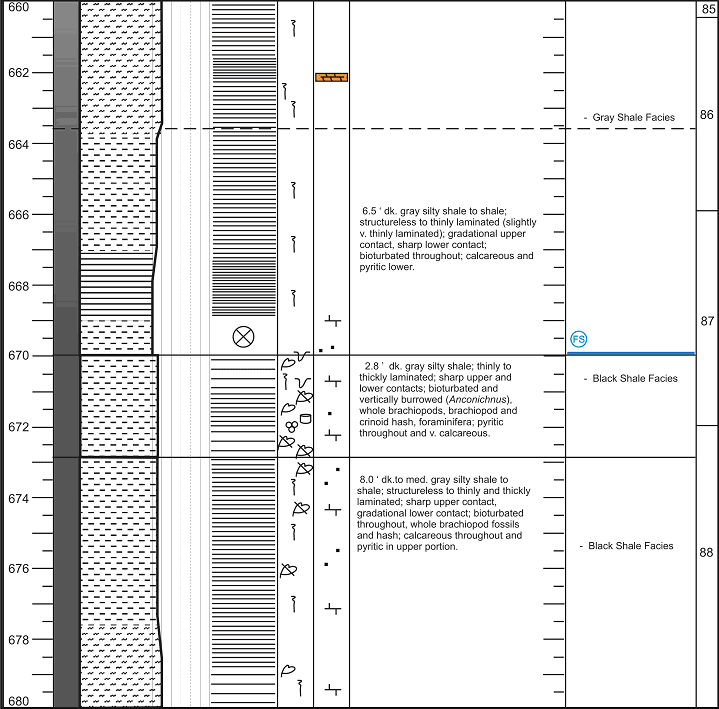

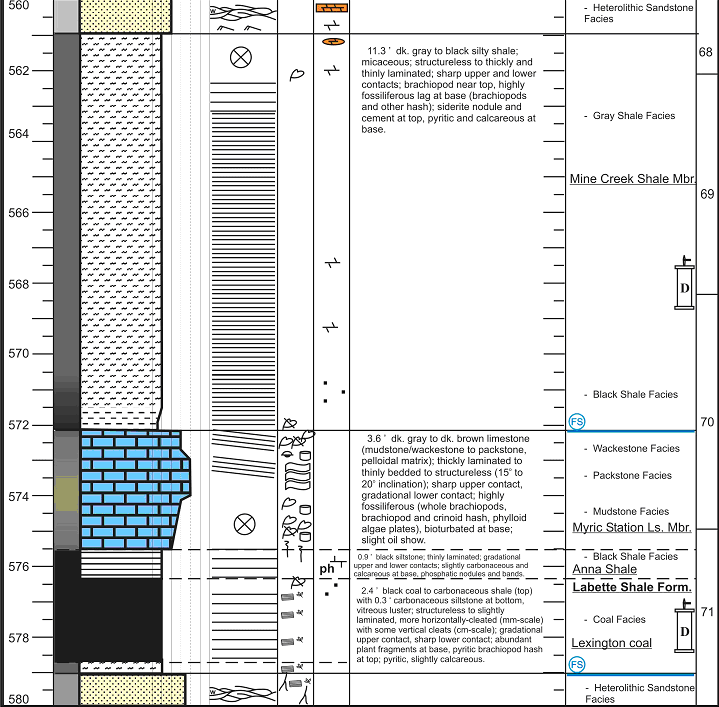

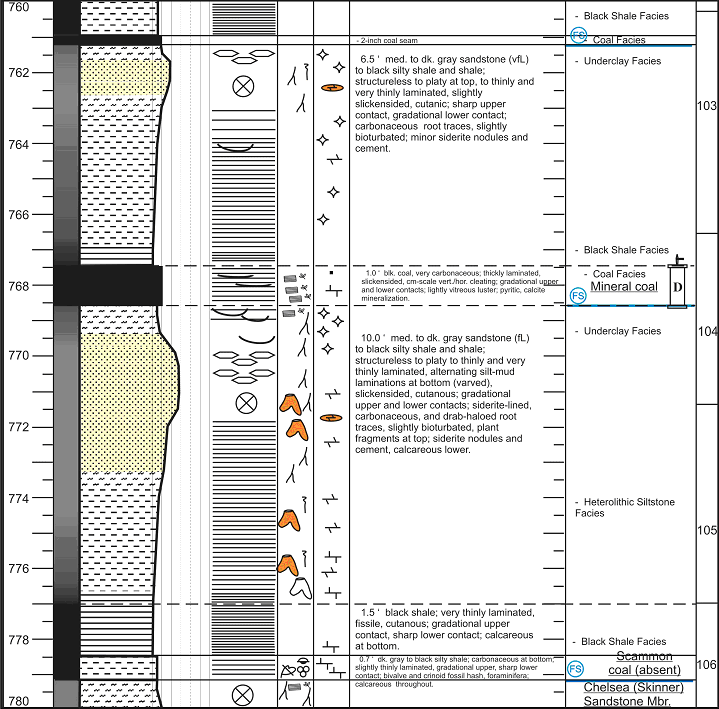

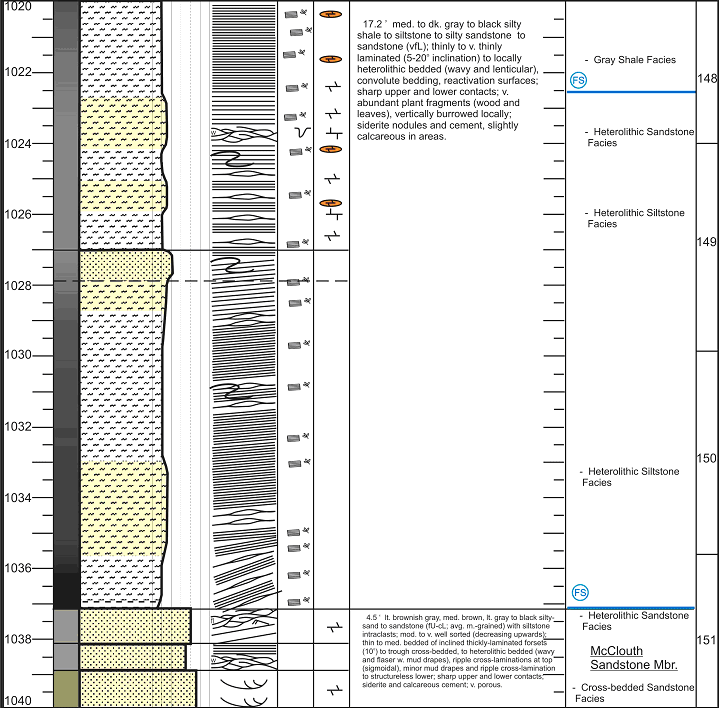

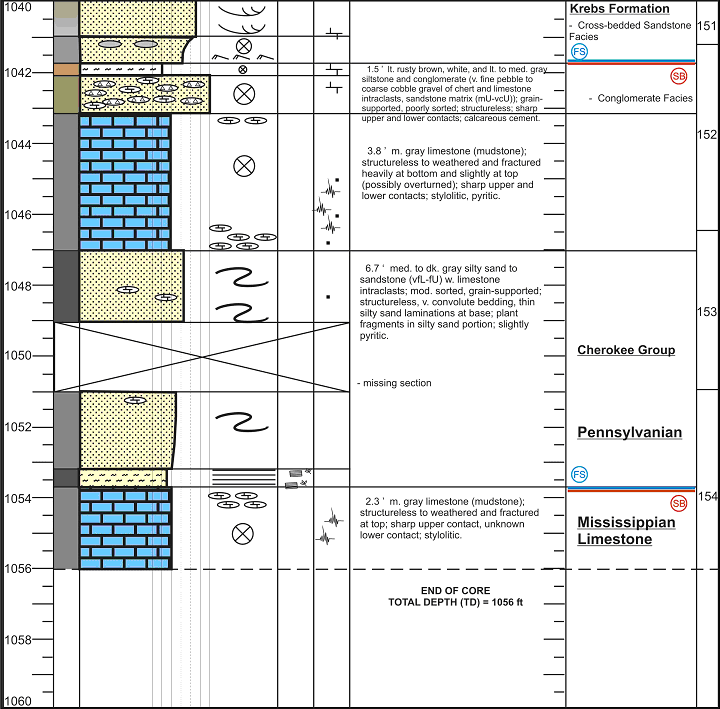

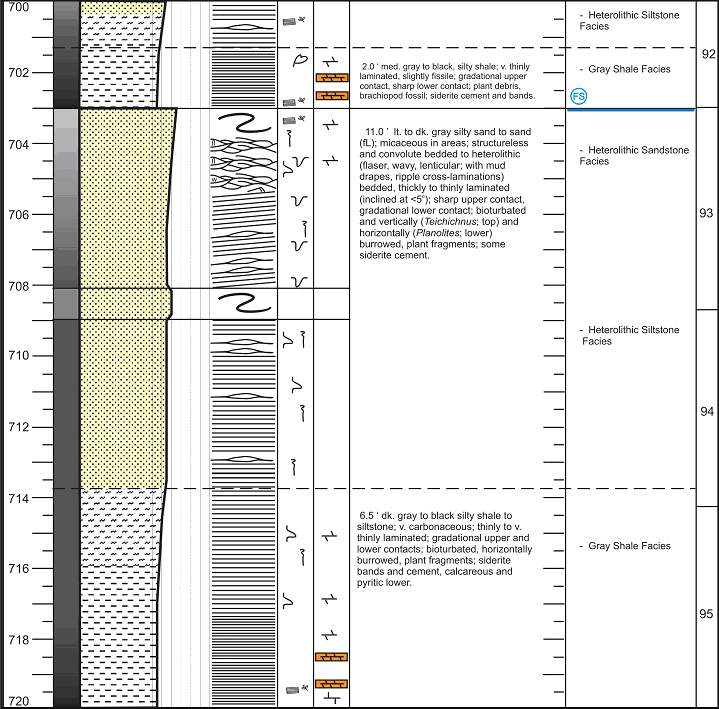

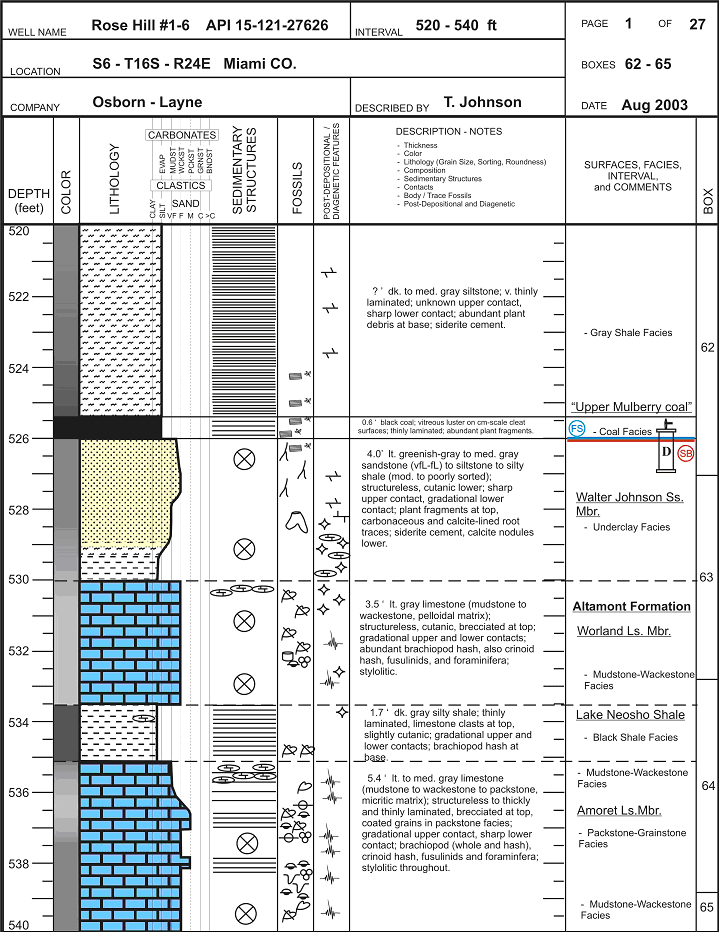

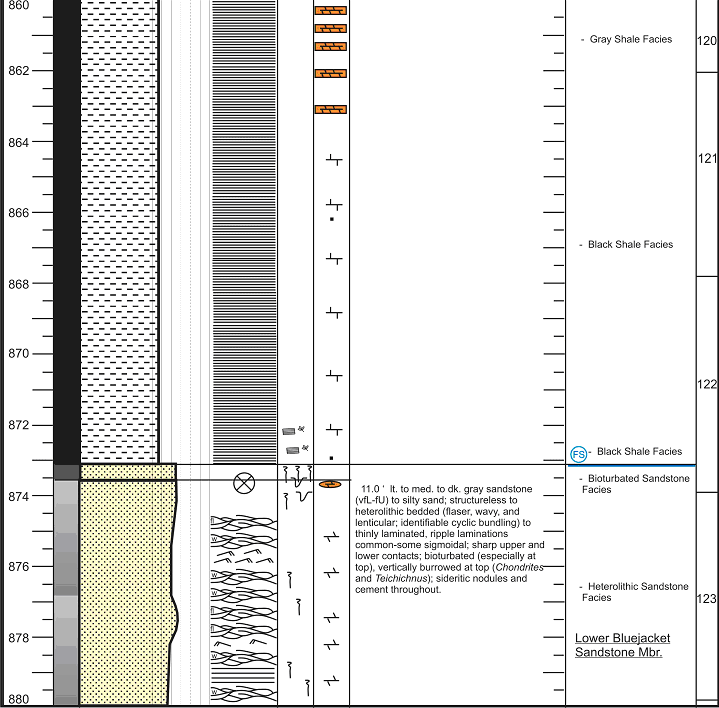

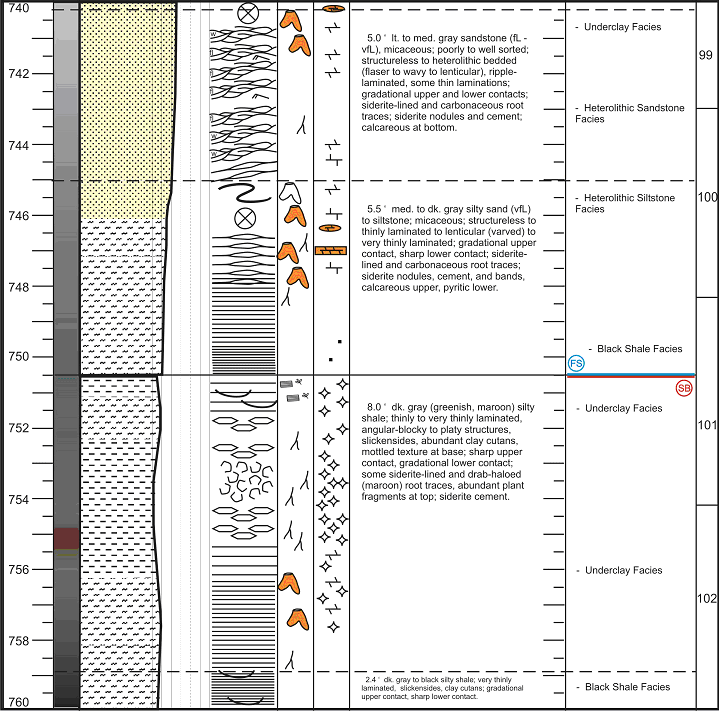

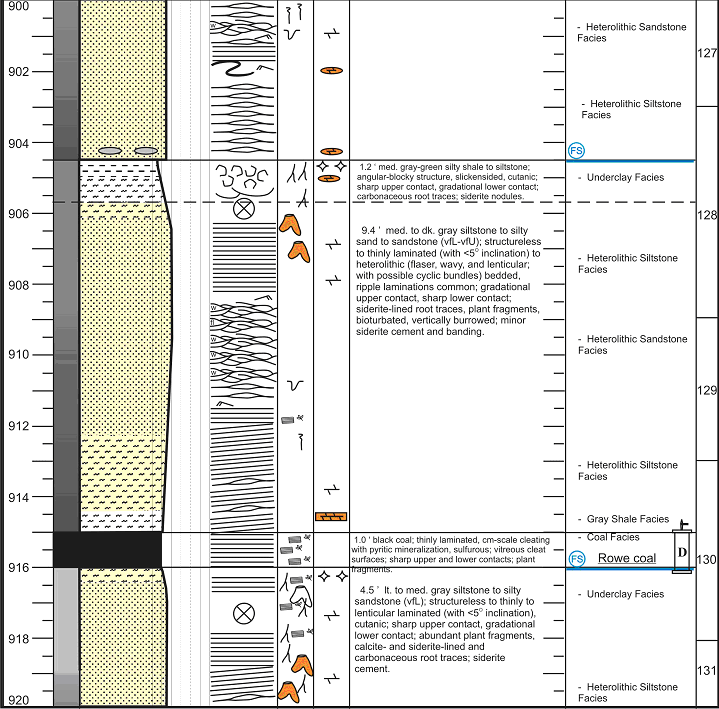

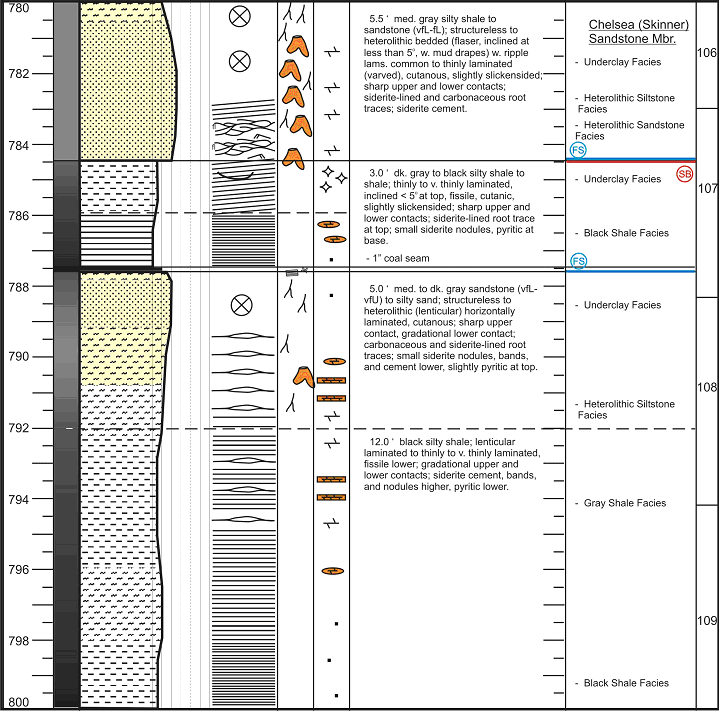

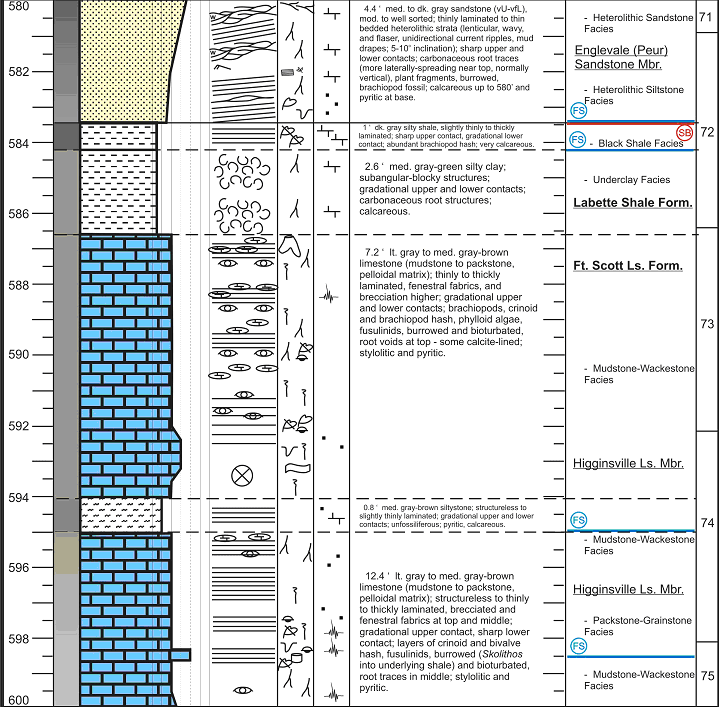

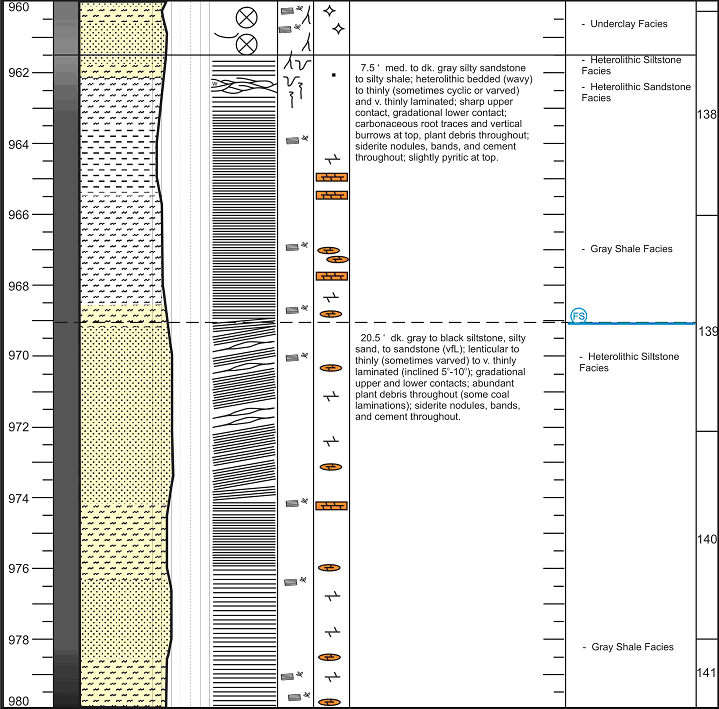

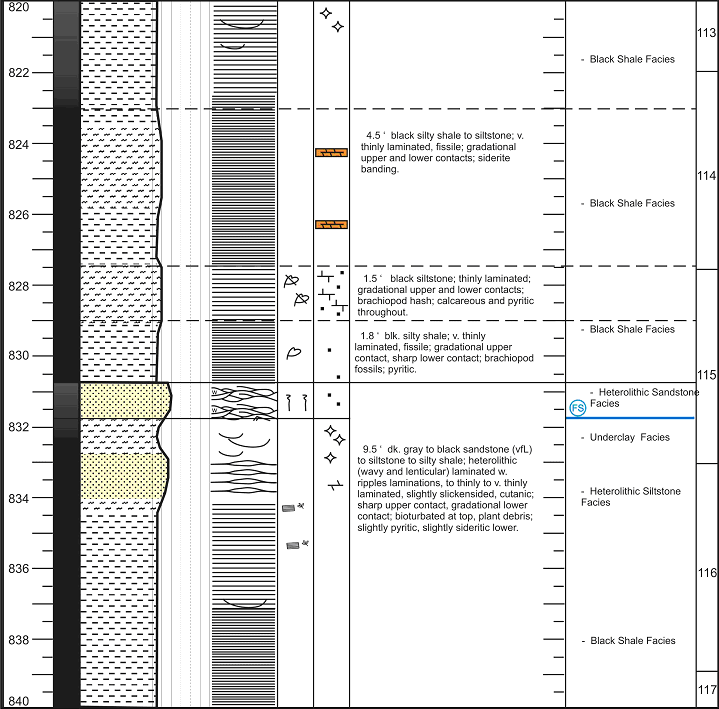

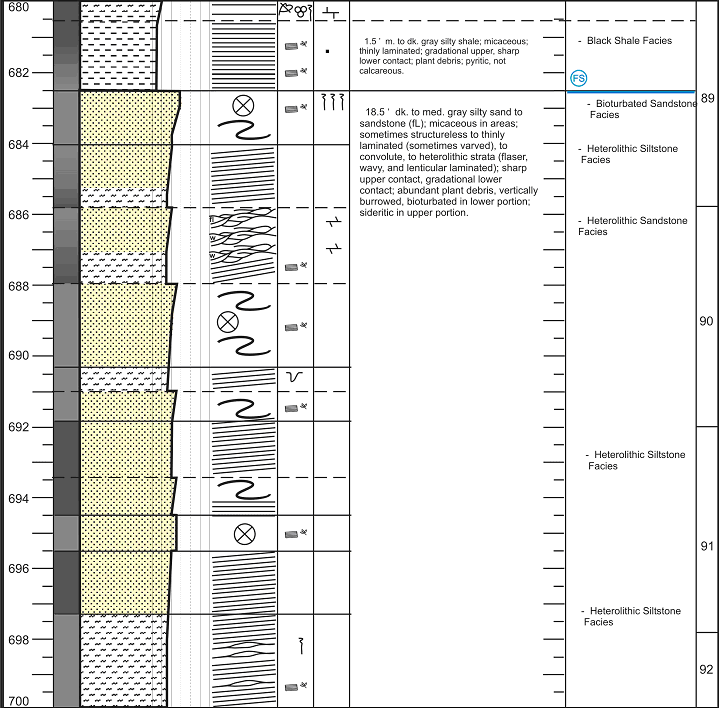

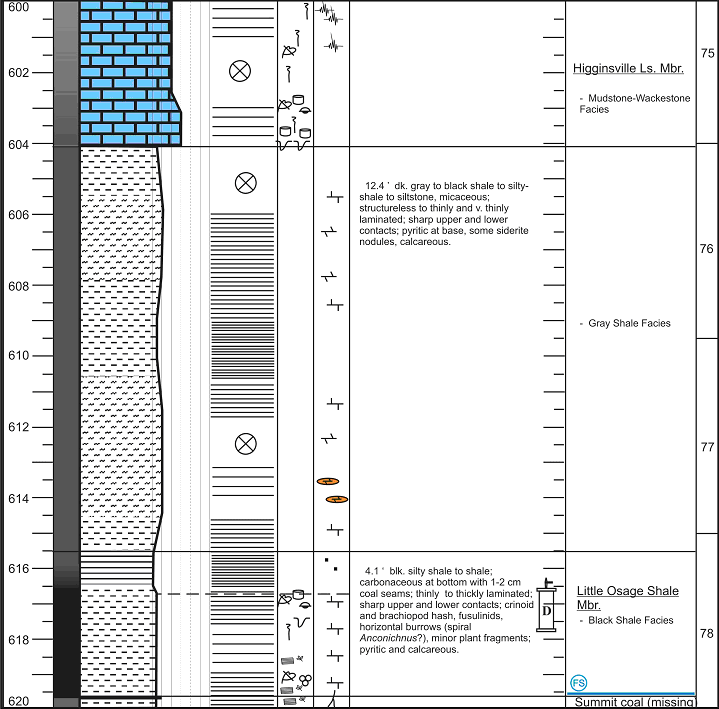

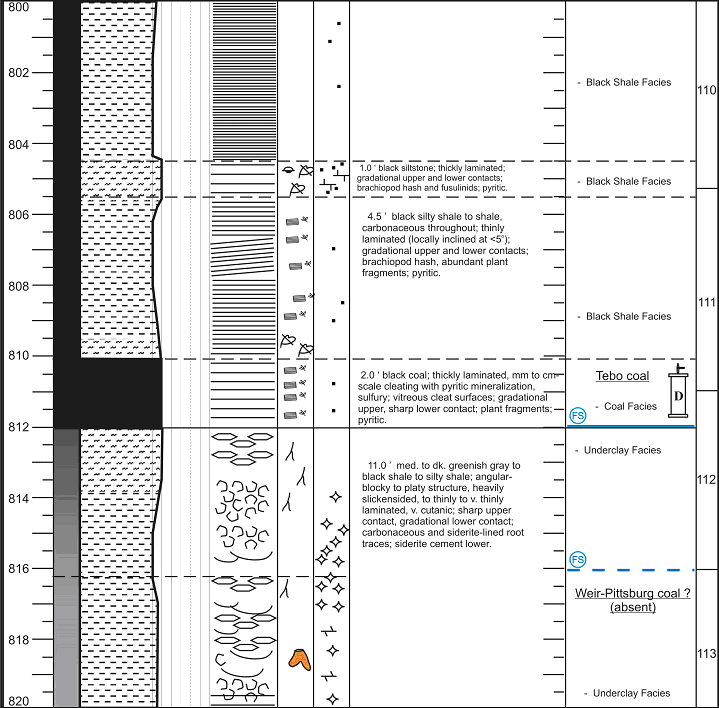

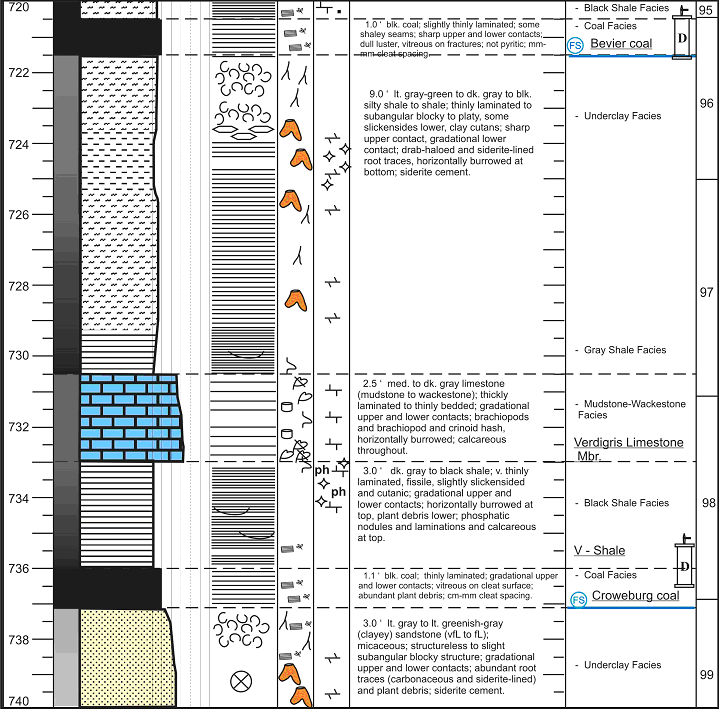

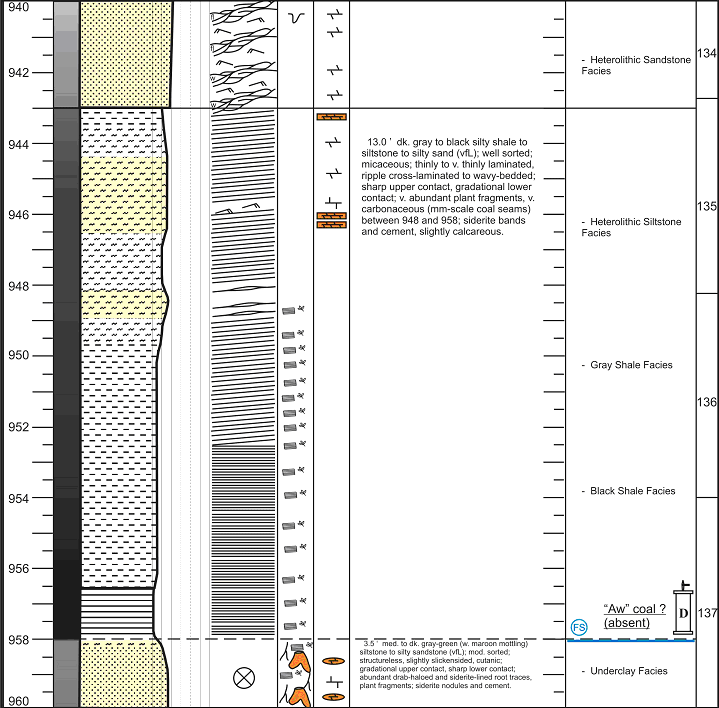

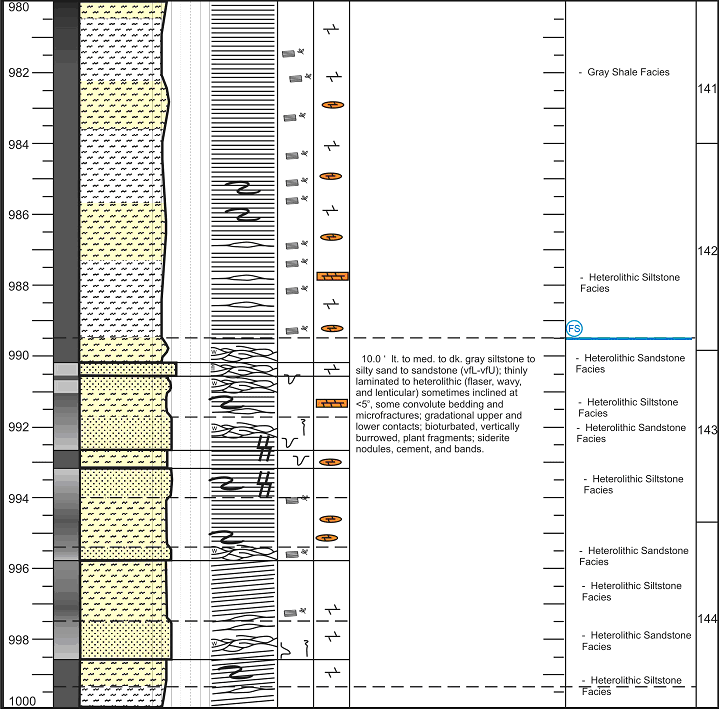

Appendix 1 - Rose Hill #1-6 Core Description

(click on the box at right of image to bring up corresponding core photo(s))

Figures Appendix 2
