Geologic Structure

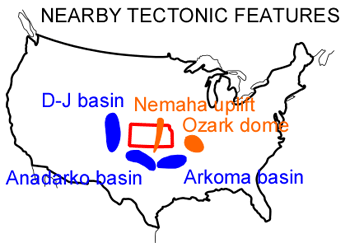

The Bourbon arch, which separates the Cherokee and Forest City basins is a subtle feature and not well expressed at Mississippian level. The Cherokee and Forest City basins have shallow eastern flanks that onlap the Ozark dome in south-central Missouri. The western flanks are steep and faulted against the Nemaha uplift. Pennsylvanian coal-bearing strata were possibly subject to movement of fresh water off the Ozark dome during their burial history.

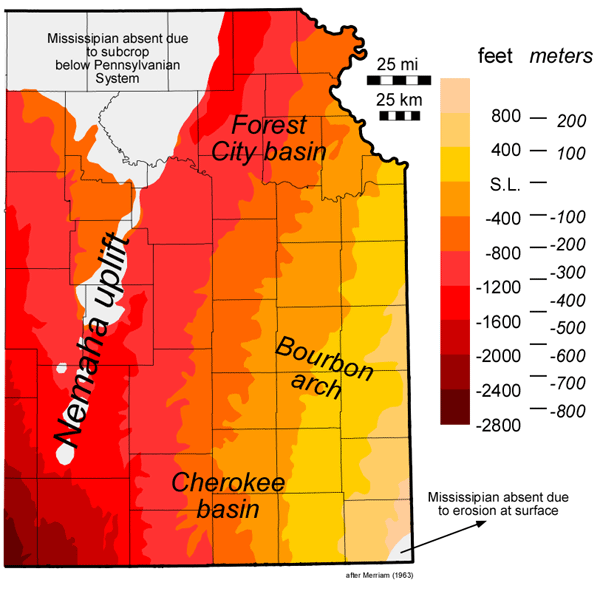

Mississippian Structure
(directly underlying Pennsylvanian coal-bearing strata)
