Detailed mapping of the Upper Hutchinson Salt and Overlying Permian strata beneath Hutchinson, Kansas
Kansas Geological Survey
Open-file Report 2003-66

Figure 4

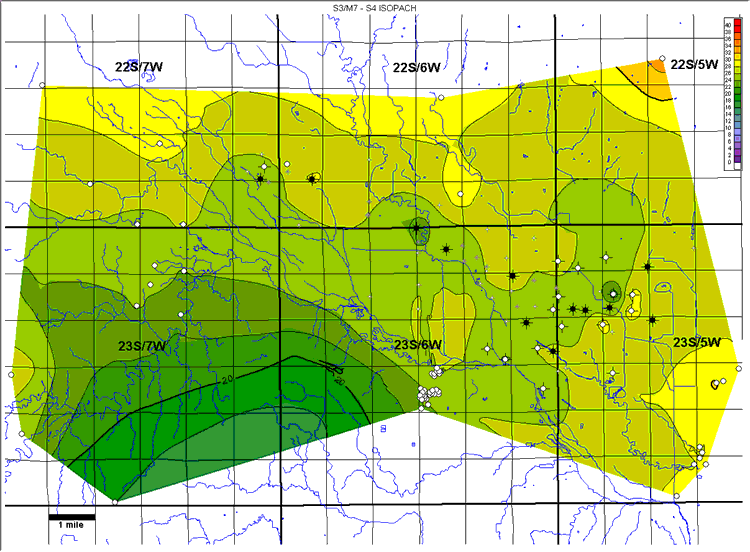

Figure 4A. Isopach map of the interval between markers S3/M7 and S4. Contour interval = 2 ft.

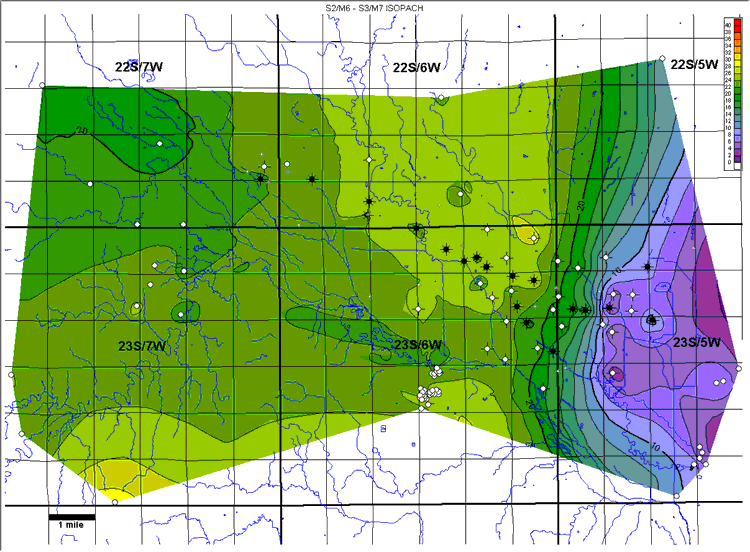

Figure 4B. Isopach map of the interval between markers S2/M6 and S3/M7. Contour interval = 2 ft.

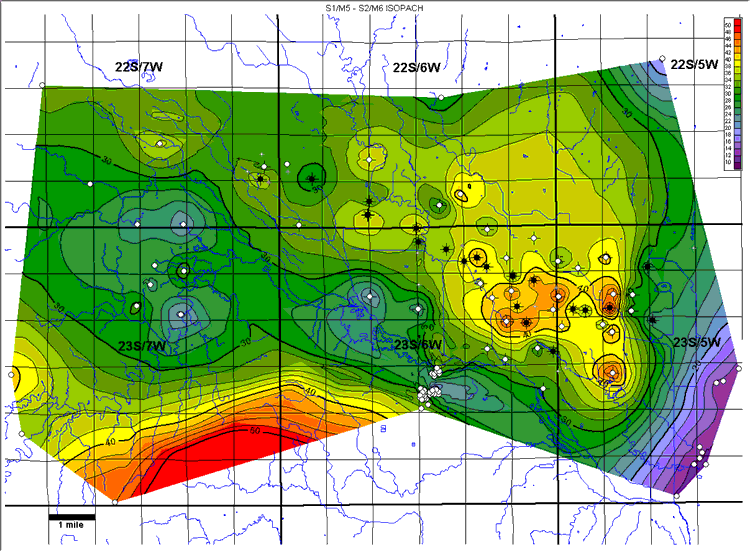

Figure 4C. Isopach map of the interval between markers S1/M5 and S2/M6. Contour interval = 2 ft.

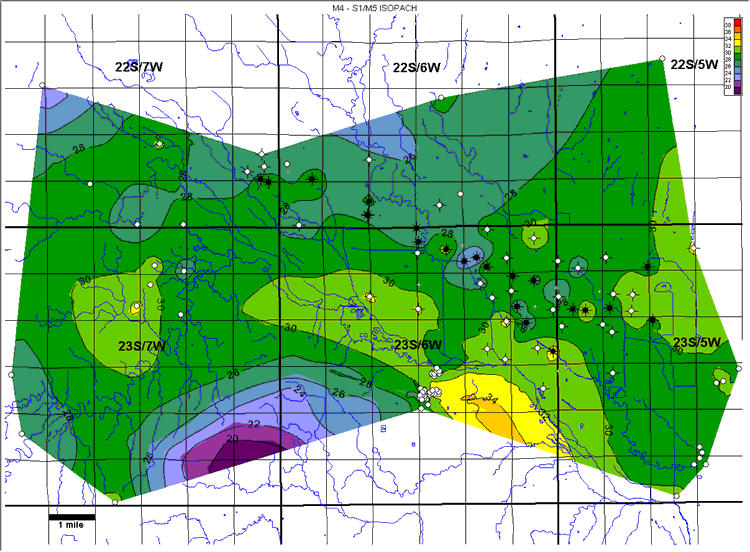

Figure 4D. Isopach map of the interval between markers M4 and S1/M5. Contour interval = 2 ft.

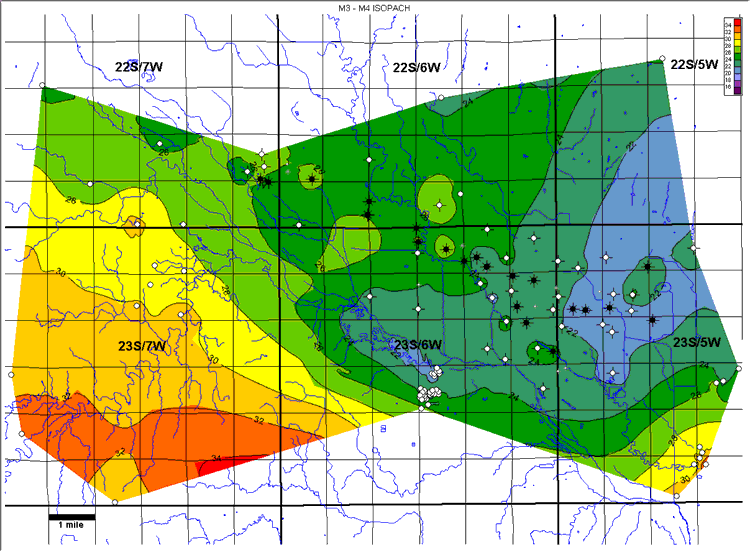

Figure 4E. Isopach map of the interval between markers M3 and M4. Contour interval = 2 ft.

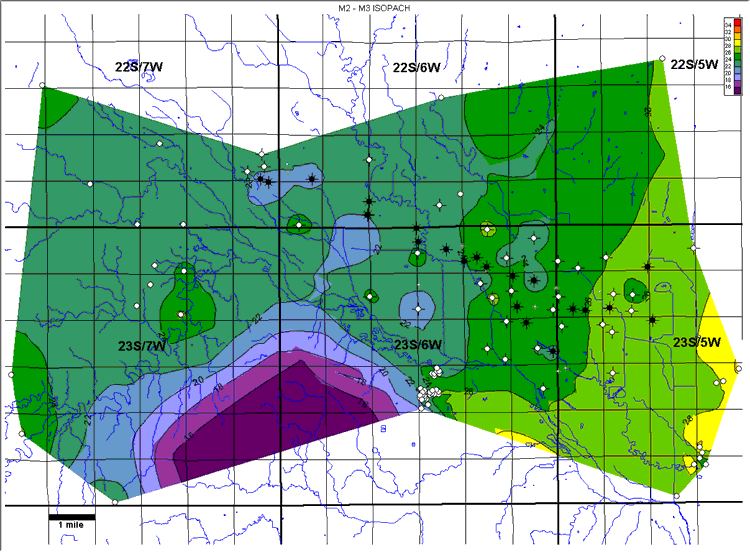

Figure 4F. Isopach map of the interval between markers M2 and M3. Contour interval = 2 ft.

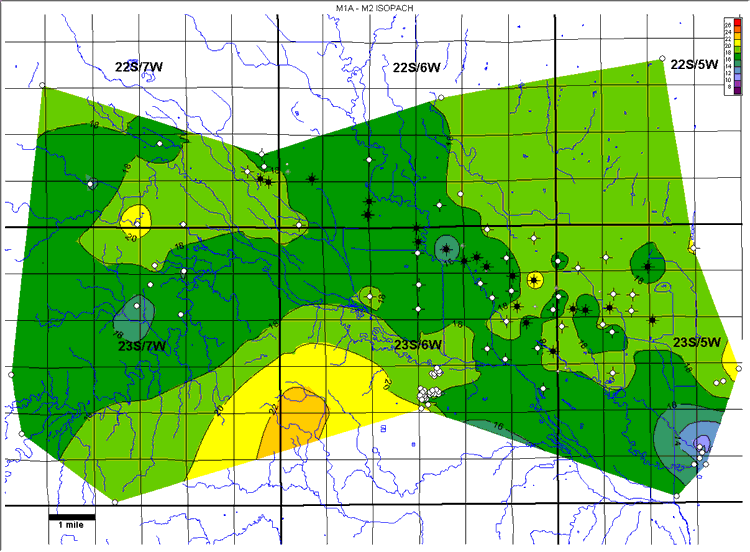

Figure 4G. Isopach map of the interval between markers M1A and M2. Contour interval = 2 ft.

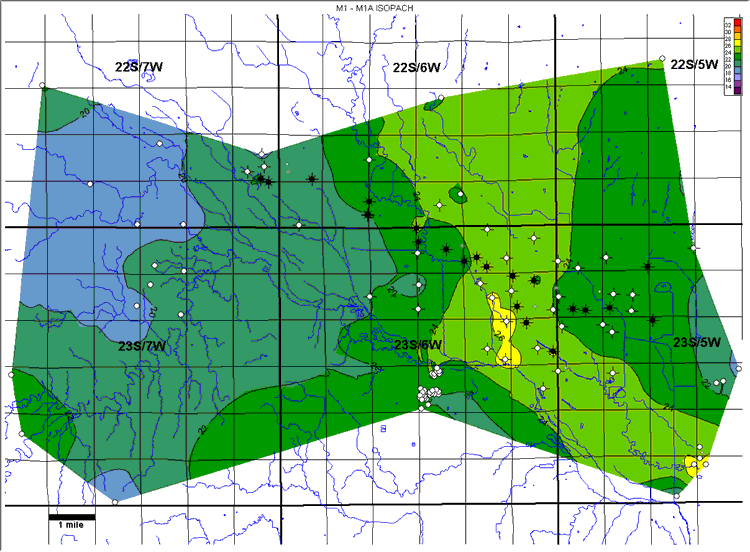

Figure 4H. Isopach map of the interval between markers M1 and M1A. Contour interval = 2 ft.

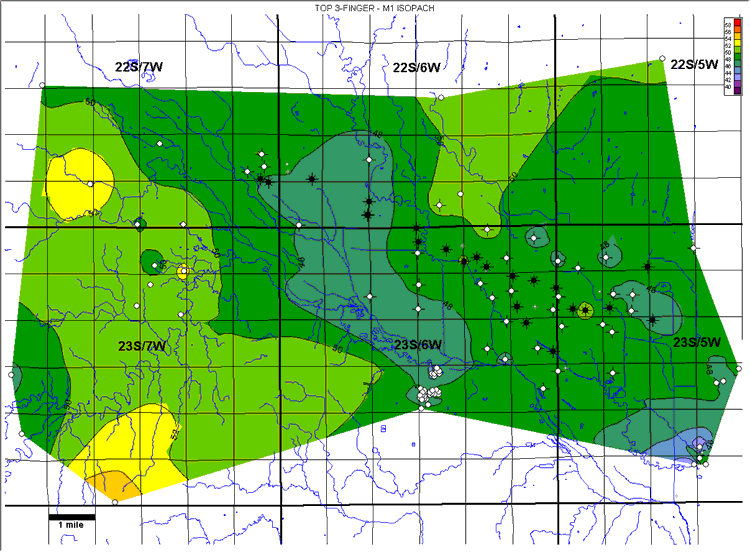

Figure 4I. Isopach map of the interval between the top 3-finger dolomite and marker M1. Contour interval = 2 ft.
Figure 4J. Isopach map of the interval between marker D1 and the top 3-finger dolomite. Contour interval = 2 ft.

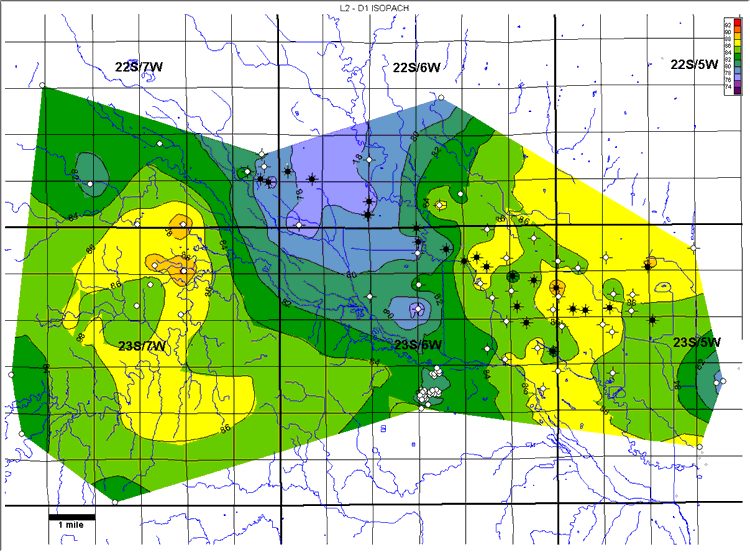

Figure 4K. Isopach map of the interval between markers L2 and D1. Contour interval = 2 ft.

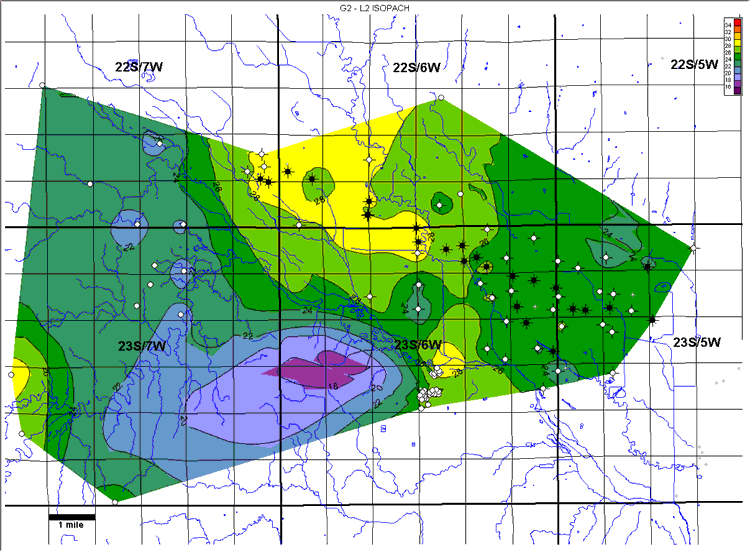

Figure 4L. Isopach map of the interval between markers G2 and L2. Contour interval = 2 ft.

Wells within the study area not used in generating these maps are displayed in gray at half size.
