Use of Information Technology for Integrated Reservoir Characterization of Permian Gas Fields of the Hugoton Embayment

Kansas Geological Survey
Open-file Report 2003-29

Stratigraphic Cross Section
Datum: Top of Council Grove

Strat X-Sections

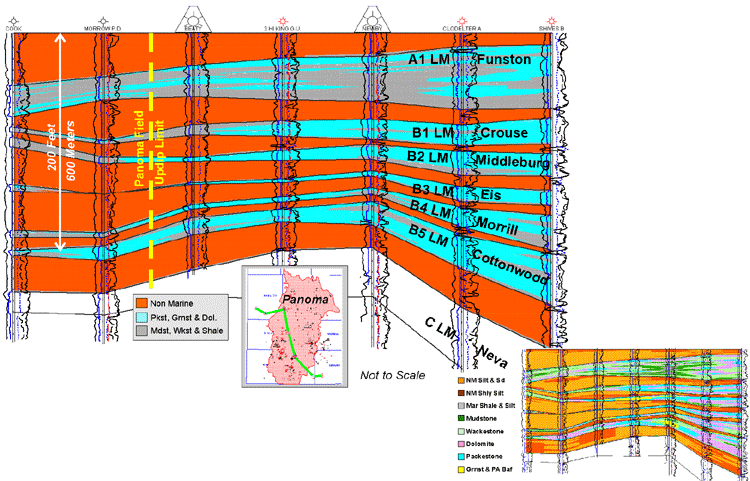

Northwest to southeast cross sections illustrate the large-scale lithofacies and depositional relationships in the Panoma Field. The updip limit to the Panoma coincides with thinned marine carbonate intervals and their reciprocally thicker nonmarine silts and shaly silts. The smaller scale cross section of the same wells shows the 8 lithofacies using Petrel's interpretive colorfill. It illustrates some major lateral and vertical facies relationships but is not to be considered a true representation of the finer geometries.

top of report

e-mail :
Last updated May 2003

Lithofacies are those predicted by neural net models in wells without triangles around the well symbols. Lithofacies by core description are shown in wells with triangles which are two of the eight ‘keystone wells.”
Maps and cross sections in this panel were created
In geoPLUS Petra with an academic license.
