Characterization of Mississippian Osage Chat in South-Central
Kansas
Kansas Geological Survey
Open-file Report 2002-50
Field Examples
Nichols Field

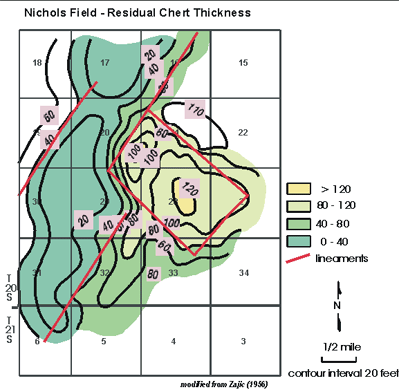

Approximately 22 km2 in size with chat thickness ranging
from 0 to 37 m

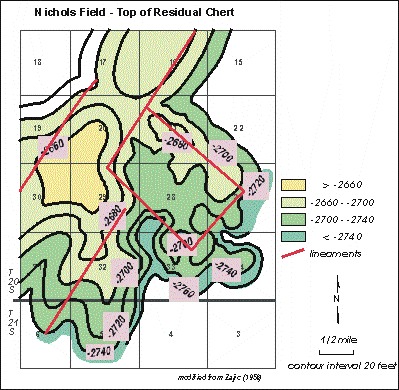

Chat abruptly thins on the northern and northeast edges of
the field which are structurally higher on the surface of the
Mississippian
Trapping of gas and oil is associated with loss of permeability
at these edges of the chat (Zajic, 1956; Curtis, 1968)
Northern field boundaries are orthogonal, residing along
similarly oriented basement lineaments that pass through Glick
Field located 8 km to the southeast
New log correlation within the field delimits four low resistivity,
generally high porosity chat intervals. These chat beds are separated
by thin, tight zones that can be correlated through much of the
field. The chat layers have similar gamma ray values and thicknesses
while porosity varies. Lowest chat layer overlies the dense lower
Mississippian carbonates
Correlation of the lower carbonates across the northern edge
of the field indicates approximately 24 m of vertical uplift
over the distance of 200 m (40-acre well spacing) suggesting
faulting.
A basal chat layer, with apparently low permeability, persists
beyond the field boundaries, but is not productive in the vicinity.
Reservoir development is greatest below the sub-Pennsylvanian
unconformity and diminishes to the south away from the unconformity
abruptly grading into unweathered chert-rich Cowley Formation
Interbedding of chert-rich intervals and crinoidal wacke-grainstones
in Nichols Field closely resembles the stratigraphic succession
in Tjaden 1-A WIW from Spivey-Grabs field and suggest regional
correlation of the unconformity surfaces on the top of the crinoidal
wacke-grainstones, which would then qualify as sequence boundaries.

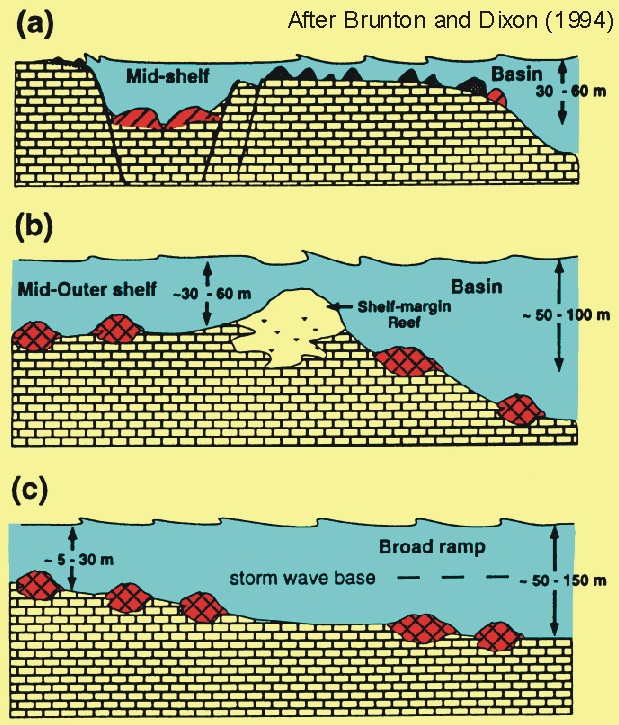

Depositional Settings for Siliceous Sponge-Microbe
Reef Mounds
Differentiated carbonate shelf
Reef-rimmed shelf
Carbonate ramp or nonrimmed shelf
