GEMINI
(Geo-Engineering Modeling through INternet Informatics)
|
Kansas Geological Survey
Open-file Report 2002-10 |
Future
Additional
Engineering modules
- Production
data analyst - well, lease, field
- Material
Balance - field level
- Parameterization
for fluid flow simulation

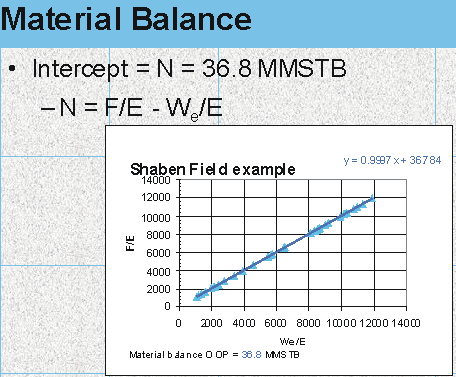

Material
Balance (2)
- Importance
in reservoir characterization
- identify
drive mechanism
- confirm
reservoir volumetric
- aquifer
fitting
- Bottom
water drive - above bubble point
- water
influx - Carter Tracy Aquifer model
- simplified
eq. F/E = N + Wo/E
- E
= Eo + Efw
- Bw
= 1
Integration
of Reservoir Scales
GEMINI
analyses are closely tied to pore types with rock analyses and
relationships readily available to the user. The user can revisit
and modify the petrophysicas as new logs and rock data become
available. Additional information such as well test and lease
production provide additional scales of observation that assist
in determining reservoir continuity and conformance. A goal is
that once this integrated analysis is completed, that the derived
reservoir parameters and grids will significantly constrain reservoir
simulation and provide results that are more predictive and geologically
realistic.
Integration of Geo-Engineering Java Applets
|
- Well Level Analysis
- User/Project Interface
- Well Profile
- PfEFFER - log analysis
- Digital Rock Catalog
- DST
- Production - chart & map
- Synthetic Seismogram = time and SEG-y
- Fluid composition
- PVT
- KHAN - Kansas Hydrocarbon Association Navigator (pay assistant)
|
- Field Level Analysis
- Correlative Modeling
- Cross Section tools
- Mapping
- Volumetrics
- Material Balance
- Integrate modules
- Parameterization & Export for fluid flow simulation modeling
and other applications/presentation
|
Parameterization for Simulation
Organizing information suited for input into reservoir
simulation
- Flow units/reservoir layers (intervals)
- Gross/net pay height
- Depth to layer
- Porosity
- Permeability X Y Z
- Relative permeability and capillary pressure data or correlations
to generate them
- PVT data or correlations to generate them
- Aquifer selection and definition
- Fluid saturations
- Water saturation
- Initial pressure
- Calculation constraints (time steps, saturation, change limitations,
gas oil ratio, water oil ratio and pressure limitations)
- Well locations
- Water history data (production history, pwf, skin value for
each well)
e-mail : webadmin@kgs.ku.edu
Last updated March 2002
