GEMINI
(Geo-Engineering Modeling through INternet Informatics)


Kansas Geological Survey
Open-file Report 2002-10

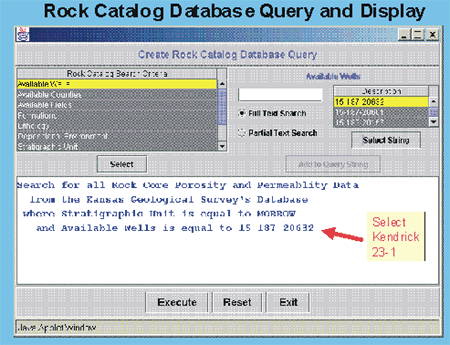

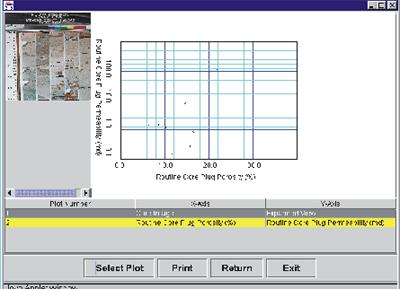

Rock Catalog

Well: J.M. Huber Kendrick #23-1
Location: C NW NE NW, Sec 23-T29S-R41W

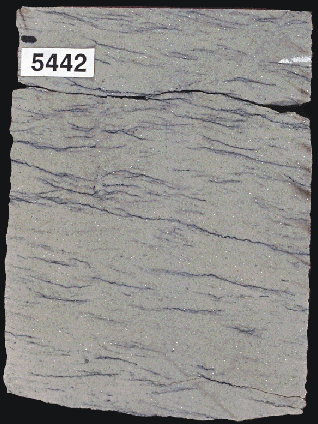

Core Depth (ft): 5442.0
Helium Porosity = 14.9% In situ Porosity = 14.3%
Routine Air Permeability = 70.4 md
In situ Klinkenberg Permeability = 49.5 md
In situ Formation Resistivity Factor = 34.4
Water Saturation at 100 ft Above Free Water = 21.4%

top of report


e-mail : webadmin@kgs.ku.edu
Last updated March 2002
