Bob Slamal Digital Type Logs Project Database Tables

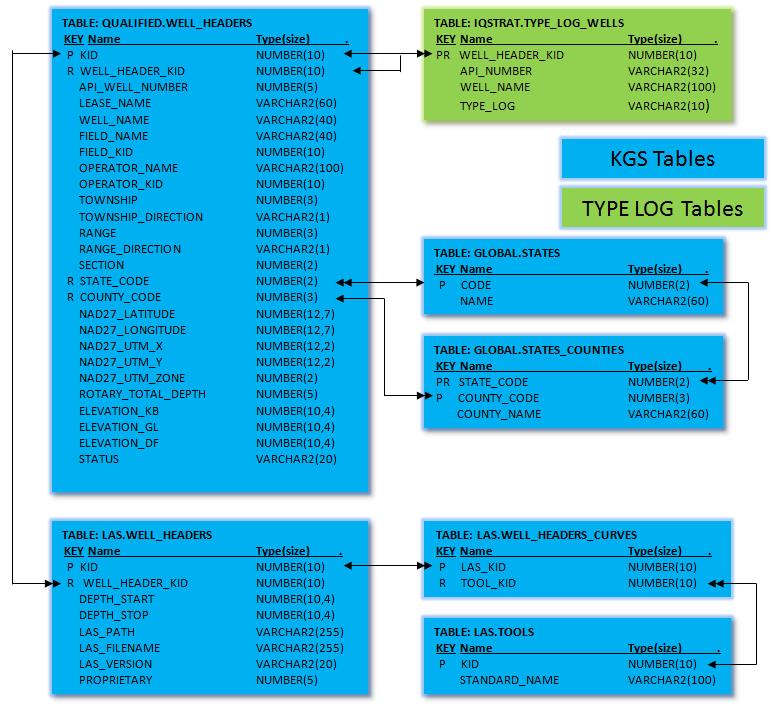

The Type Log Wells DB Table holds minimum information to identify all the wells that are part of the Type Log Project. Only the well header KID column is necessary to retrieve the Well Header Information from the KGS Qualified Well Headers DB Table.

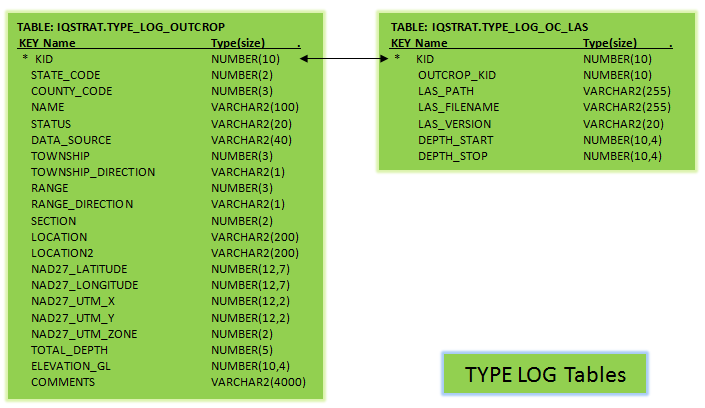

The Outcrop DB Tables are not part of the KGS DB Tables and are required for the 5 outcrops that are part of the Type Log Project. The Type Log OC LAS DB Table holds the temporary Log ASCII Standard (LAS) 3.0 File Information containing the Measured Section Description Data.

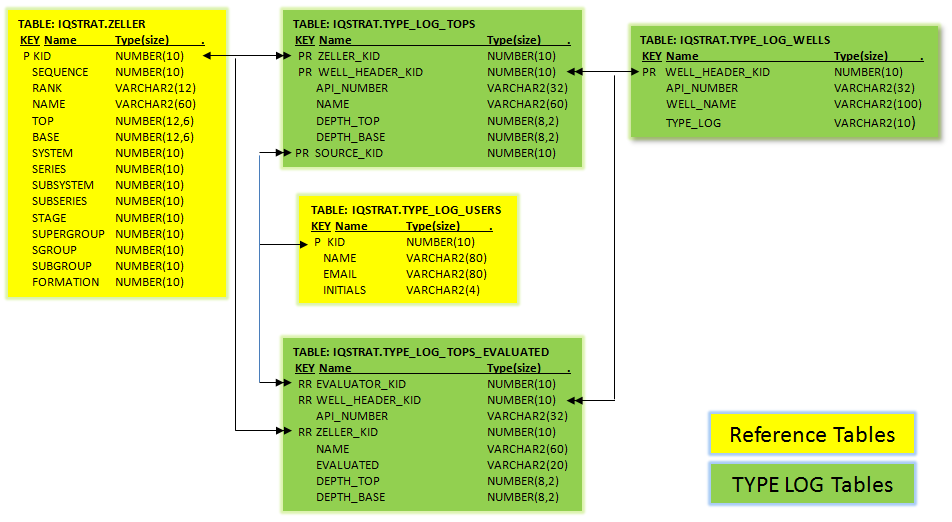

The Type Log Tops DB Table is the primary table for holding the well tops for each well and the owner of the tops which was identified for each selected well in the Type Log Project. The Type Log Tops Evaluated DB Table holds the result of the Type Log Committee evaluation of the tops selected in the Type Log Tops DB Table. The Zeller Database Table holds the Stratigraphic Units for the Type Log Project & CO₂ Project. The Type Log Users Table holds all the Committee members for the Type Log Project that are selecting & evaluating the tops.

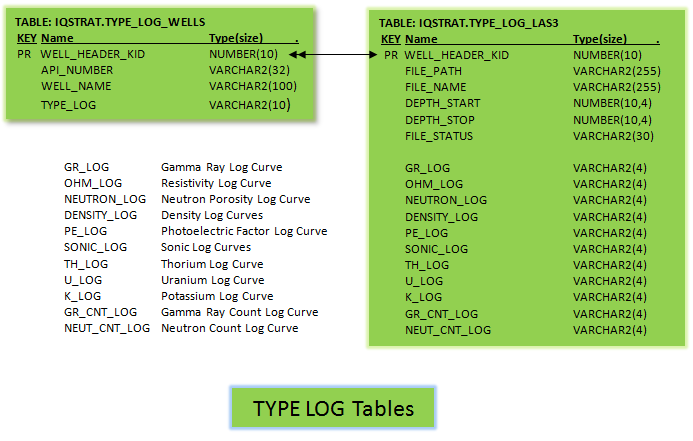

This type Log LAS 3.0 file contains the Log ASCII Standard (LAS) 3.0 File Information for the final files containing the Log Data, Tops Data and the if present the Geologist Report Data. These files are part of the final deliverables for the Type Log Project and are also part of the CO₂ Project mapper program to allow the user to build General Cross Sections with these files.

Author: John R. Victorine jvictor@kgs.ku.edu
