Kansas Geological Survey, Open-file Report 2000-31
Figure 11

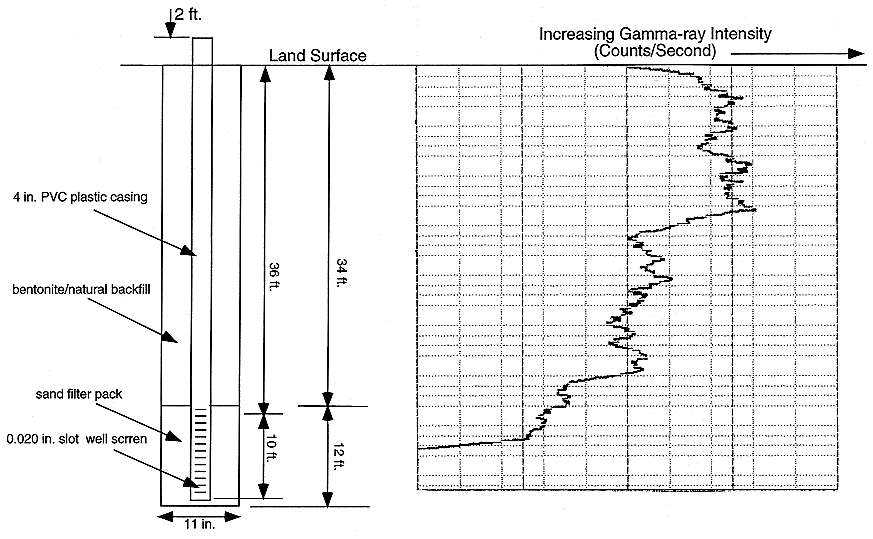

Figure 11. Well construction details for test well #3 near
the Delaware River 315 ft south of test well 31-96 in the NE quarter of Section
33, T. 4 S., R. 16 E.
The natural gamma-ray log was generated from a sounding taken in the well before bentonite
was added to the annular space between the well and the borehole.
Return to report
