Figure 10

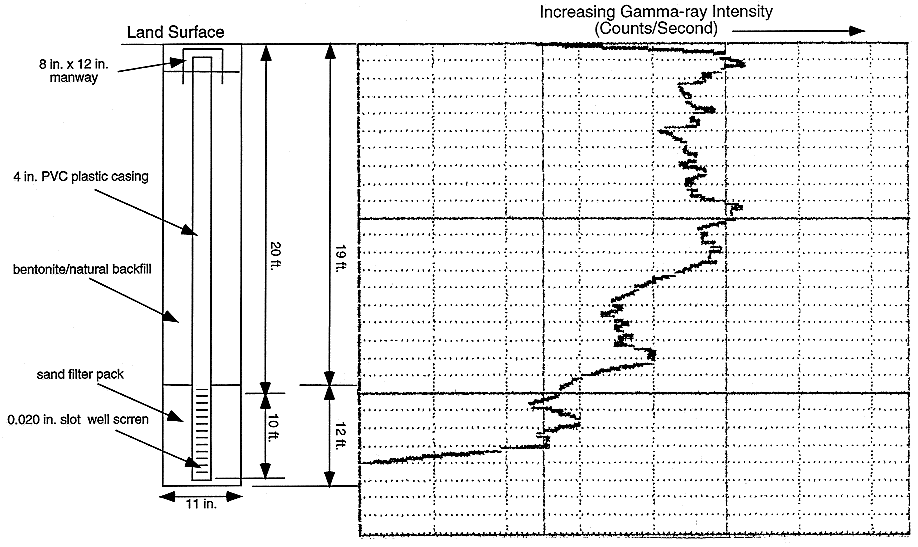

Figure 10. Well construction details for test well #2 south of
state highway 20 near the NW corner of the NE quarter of Section 32, T. 4 S., R. 16 E.
The natural gamma-ray log was generated from a sounding taken in the well before bentonite
was added to the annular space between the well and the borehole.
