Other plots and analyses
The Moveable Oil Plot
- Sxo = [ (a / Fm)*(Rmf
/ Rxo) ](1/n)
- Rmf: Resistivity of mud filtrate
- Rxo: Microresistivity
- presumably bulk resistivity of flushed zone
- Sxo: Saturation of total moveable fluid
- assumes filtrate has displaced everything moveable
- BVF = Sxo*F
- Bulk volume (moveable) fluid
- Volume moveable oil = BVF - BVW

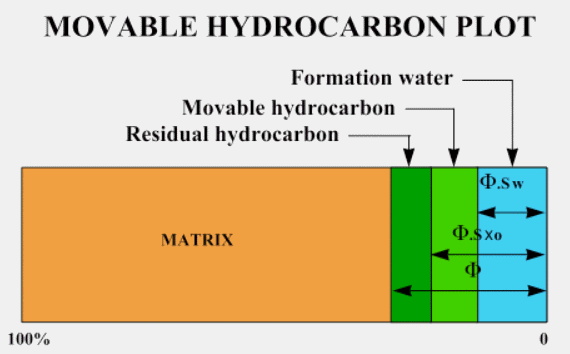

An Example Moveable Oil Plot
