Simulation Exercise
Schaben Field

The Schaben Field is a Meramecian and Osagian (Mississippian) dolomitic wackestone which is a structural trap (54 ft. max. closure). In 1963 the discovery well was drilled by Cities Service Oil Company, #1 Moore 'B', SE SE 30-T19S-R21W, 4494' RTD . The field area is 8,880 acres, there are 90 Total Wells of which 65 are productive wells and 25 are abandoned wells. Total cumulative oil as of 10/01/95 was 9.1 MMbbls. It is currently producing 326 BOPD from 51 wells

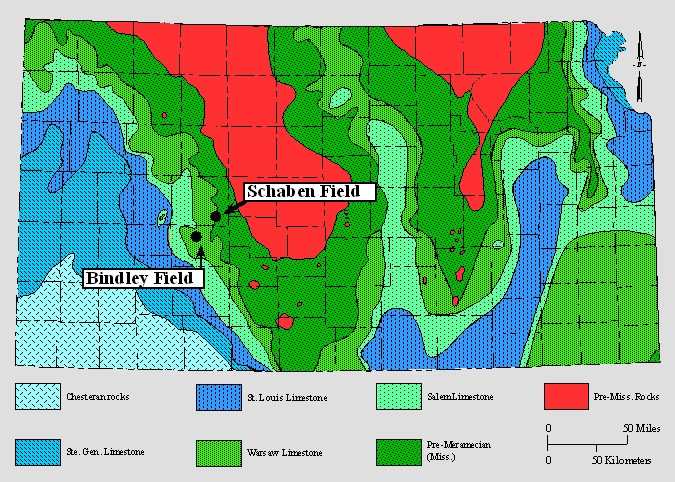

Mississippian Subcrop beneath the Pennsylvanian unconformity showing location of Schaben Field

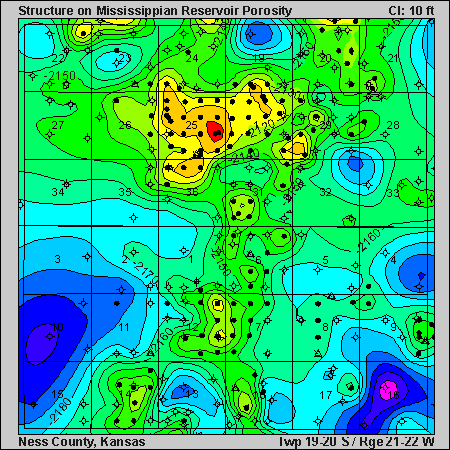

Structure on Mississippian Porosity, Ness County, Kansas, Township 19-20 S / Range 21-22 W

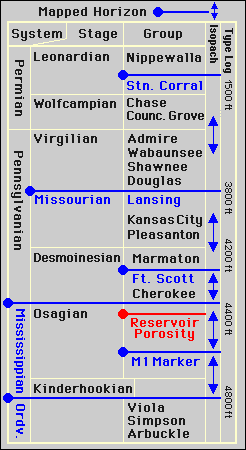

Stratigraphic Column , Ness County, Kansas, Township 19-20 S / Range 21-22 W


e-mail : webadmin@kgs.ukans.edu
Updated January 1999
