Meade County Geohydrology

Back to Shallow Ground Water...

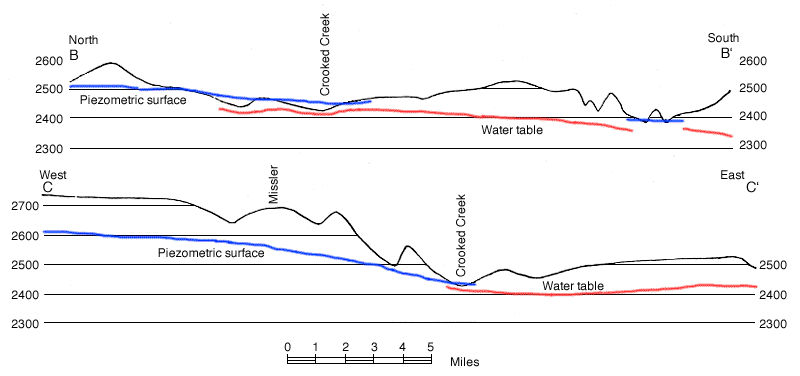

Figure 10--profiles across the artesian basin. A, North-south profile, 4 miles east of Meade. B, East-west profile, 2 miles north of Meade. See pl. 2 for locations.

Piezometric surface is above the water table in many areas.

Back to Shallow Ground Water...


Kansas Geological Survey, Geologic History of Kansas
Comments to webadmin@kgs.ku.edu
Web version February 2004. Original publication date Dec. 1942.
