Dakota Home Report Archive FY89 Ann Rep

Kansas Geological Survey, Open-File Rept. 90-27
Annual Report, FY89--Plate 2
Use "Back" on your browser to return to the page you were viewing.

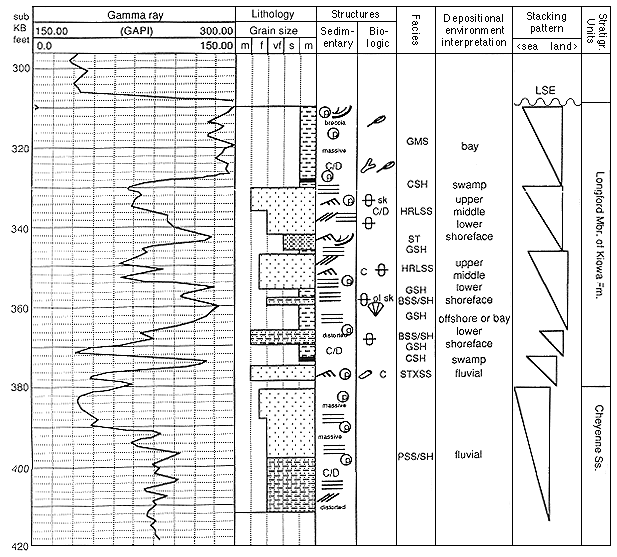

Plate 2--Haberer core description and well log calibration

by Vincent J. Hamilton
Core: Haberer NE SE NE Sec. 14, T12S, R15W

Depth below Kelly Bushing (ft)...
0-100 || 100-200 || 200-300 || 300-400
Legend


Use "Back" on your browser to return to the page you were viewing.
Start of this report || Table of Contents
Kansas Geological Survey, Dakota Project
Original report available from the Kansas Geological Survey.
Electronic version placed online Nov. 1998
Scientific comments to P. Allen Macfarlane
