Kansas Geological Survey, Open-File Rept. 90-27
Annual Report, FY89--Plate 1
Use "Back" on your browser to return to the page you were viewing.

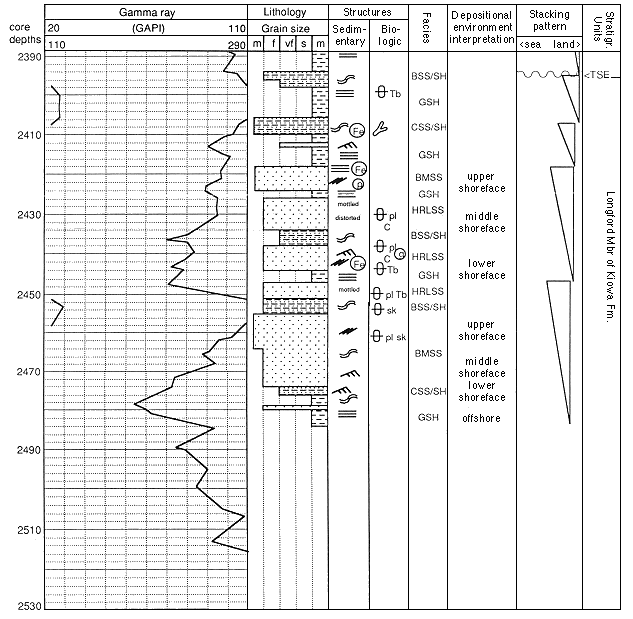

Plate 1--Beaumeister core description and well log calibration
by Vincent J. Hamilton
Log: Pugh sec. 30, T2S, R39W
Core: Beaumeister C SE NW Sec. 32, T2S, R39W
Core Depths (ft)...
1190-2100 ||
2100-2200 ||
2200-2300 ||
2300-2400 ||
2400-2500
Legend
