Optical-fiber temperature logging
Figure 4

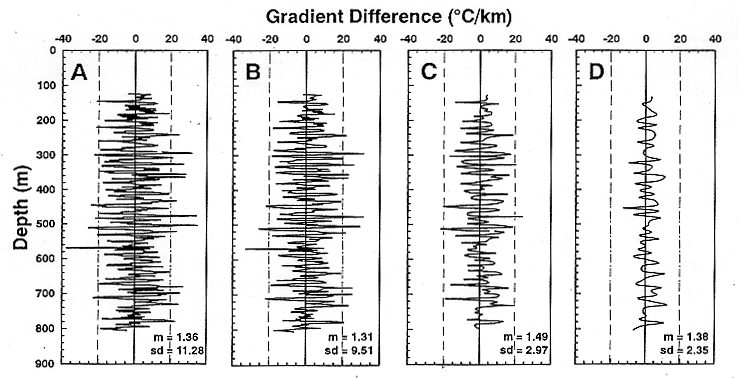

Figure 4. Gradient difference obtained at 1 m
intervals in Smokyhlll borehole in comparison to gradient differences
smoothed by different running averages: A, unsmoothed; B, smoothed
by 2 m running average; C, smoothed by 5 m running average; D,
smoothed by 10 m running average.
