Optical-fiber temperature logging
Figure 3

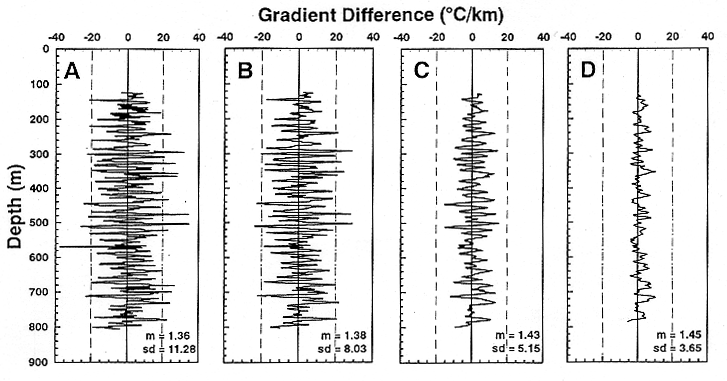

Figure 3. Difference of interval gradients resulting
from comparison of two sets of unsmoothed logging data obtained in
Smokyhill borehole: A, gradient interval 1 m; B, gradient interval
2 m; C, gradient interval 5 m; D, gradient interval 10 m.
